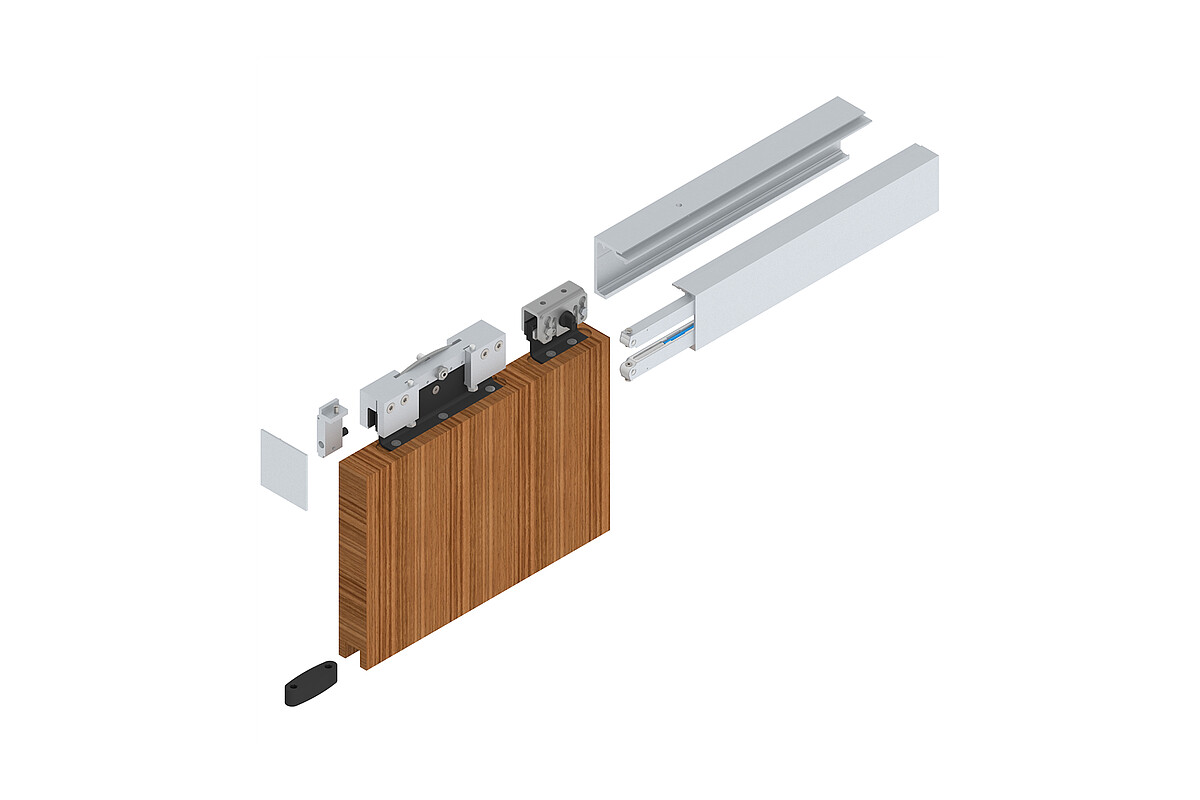

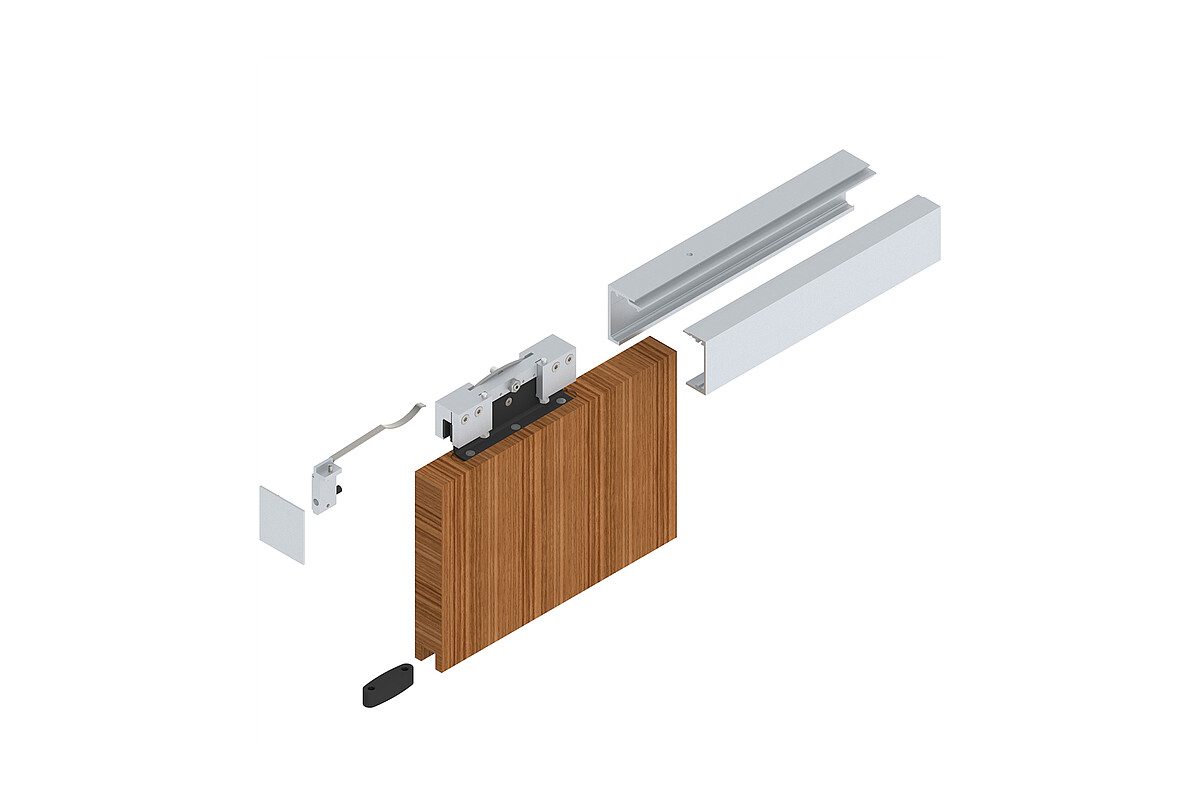

HELM GT-S 150 H 413
Sliding door system for leaves up to 150 kg, ceiling installation
- for interior sliding doors made of timber
- trolleys: height adjustable even after installation, with load-bearing rocker for a long service life
Leaf weight
max. 150 kg
Leaf thickness
from 35 mm
Leaf width
min. 700 mm (with damper and soft closing device on one side)
min. 700 mm (with damper and soft closing device on both sides)
Set contents
| Quantity 1 leaf | 2 leaves | Article |
| 1 pc. | 1 pc. | HELM GT-S 150 track for ceiling installation |
| 1 pc. | 1 pc. | HELM GT-S 150 pelmet |
| 1 pc. | 1 pc. | HELM GT end cap set |
| 2 pc. | 4 pc. | HELM GT-S 150 trolley |
| 2 pc. | 4 pc. | HELM GT-S 150 fixing bracket for trolley |
| 2 pc. or 4 pc. 2 pc. | 4 pc. or 8 pc. 4 pc. | HELM GT-S 150 door catcher left/right (when selecting "without damper and soft closing device") or HELM GT-S 150 damper and soft closing device with release bolt (fixing bracket included), HELM GT-S 150 end stop left/right (when selecting "damper and soft closing device on both sides") |
| 1 pc. | 2 pc. | HELM 316 bottom guide (mounting material included) |
*quantity depends on track length
