KWS 8146..

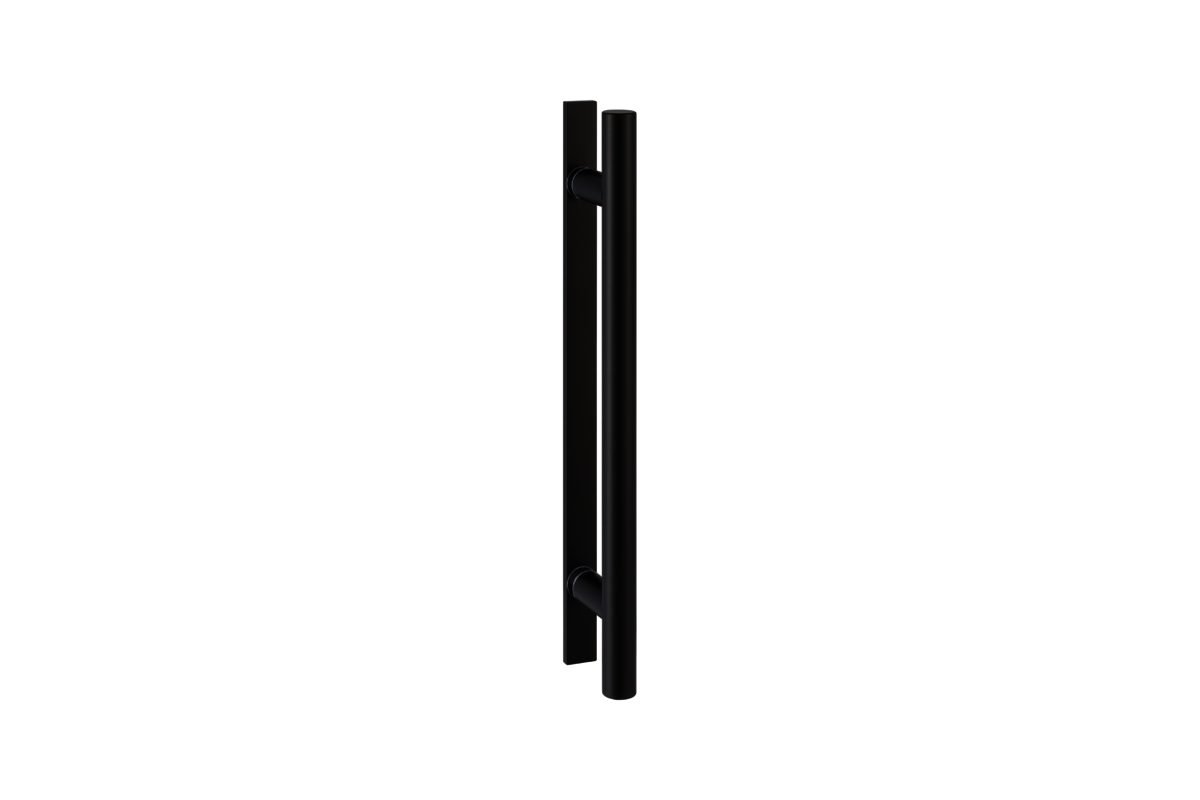

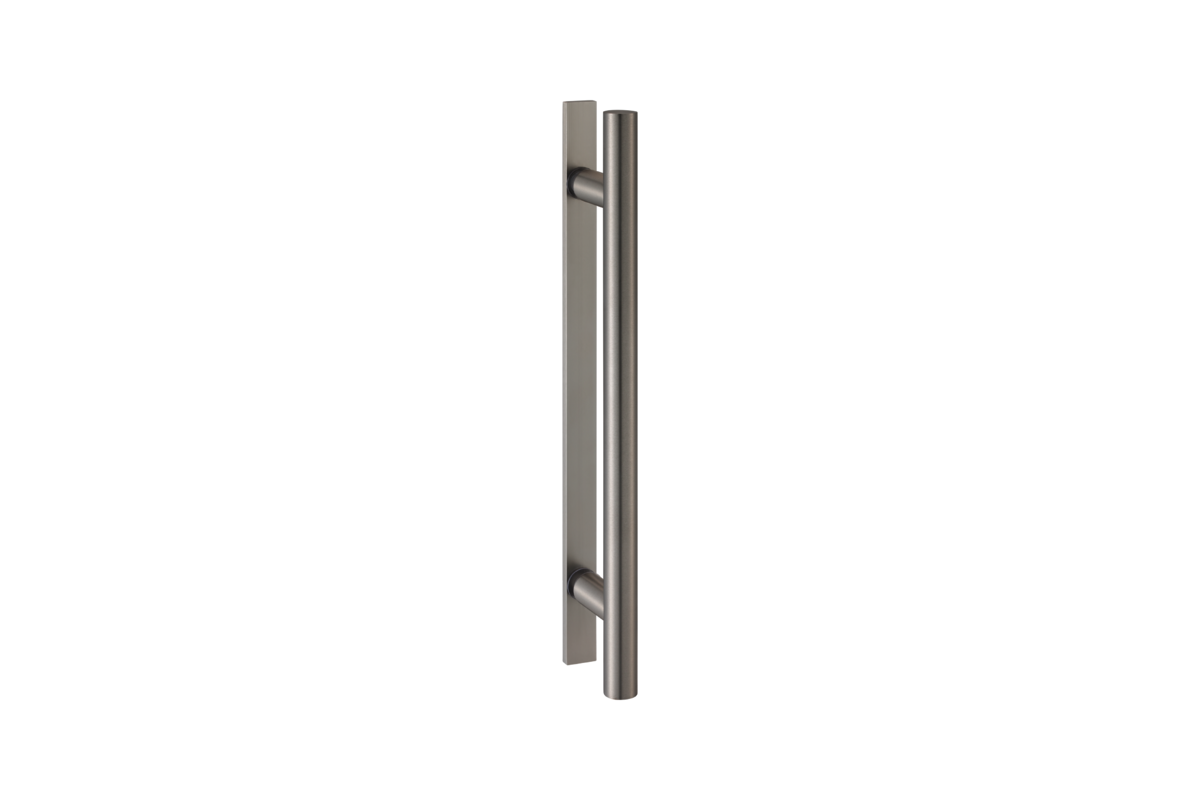

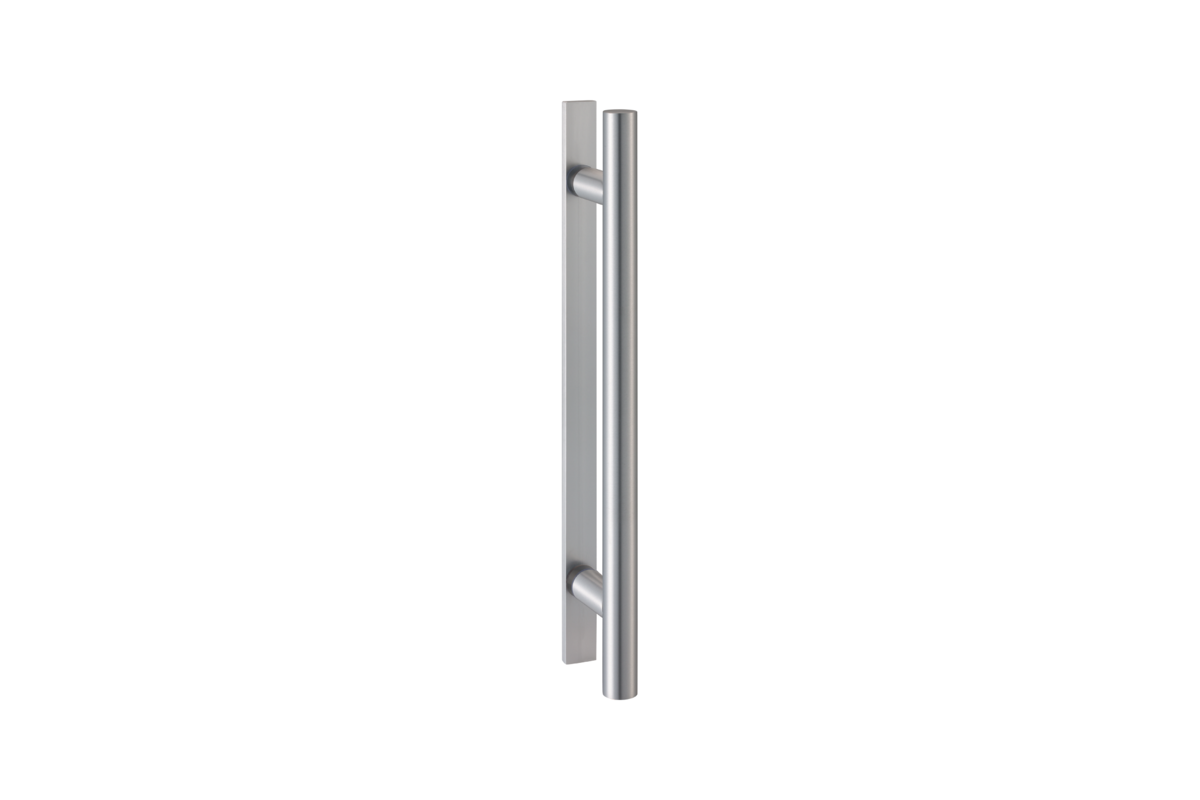

Door handle set for sliding doors made of glass and timber
- with a tubular handle and a flat, angular handle bar
- utilizing the entire passage width
- with mounting material
Material
aluminium

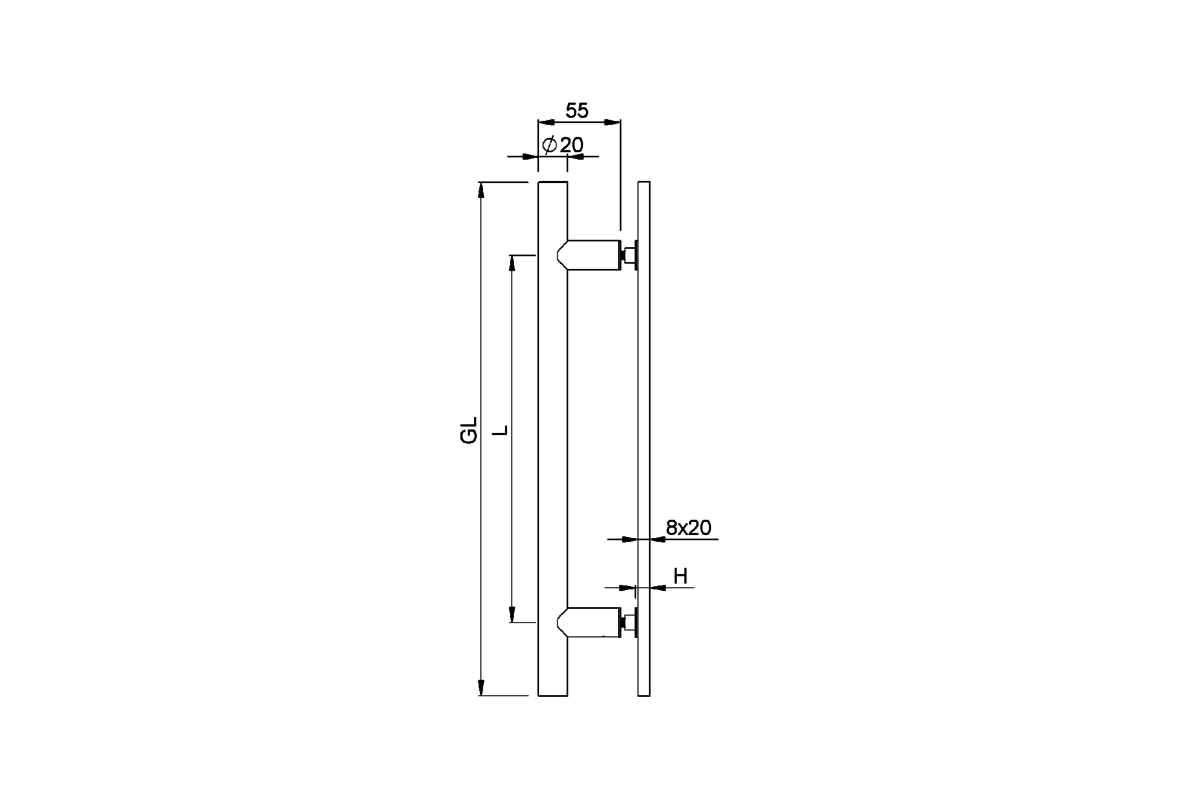

Dimensions (in mm)
| D / handle | GL | L | H |
| Ø 20 / 8 x 20 | 350 | 250 | 8 to 10 |
| Ø 20 / 8 x 20 | 720 | 520 | 8 to 10 |
Door thickness
from 8 to 13 mm (glass door)
from 38 to 45 mm (timber door)
