HELM 216 / 316
Bottom guide
- for interior sliding doors made of timber
- to be screwed onto the floor
- with mounting material
- can be used with HELM 240 / 340 U-track inserted into the bottom of the leaf
Material
plastic

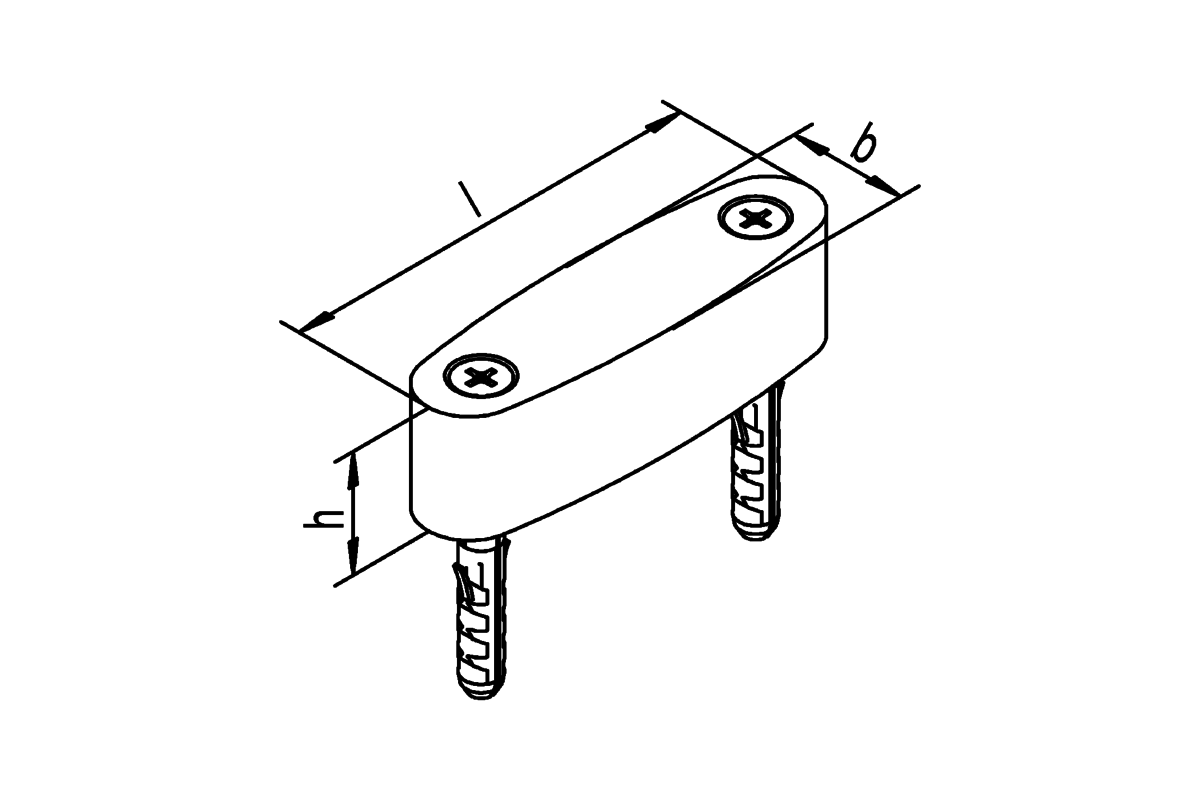

Dimensions (in mm)
| Article Art. no. | HELM 216 HELM 021660 | HELM 316 HELM 031664 |
| U-track | HELM 240 | HELM 340 |
| b | 12,5 | 19,5 |
| h | 14,5 | 19,5 |
| l | 49,5 | 69,5 |
| groove | 13 x 15* 16 x 13** | 21 x 20* 25 x 25** |
*when used without U-track
**when used with U-track
