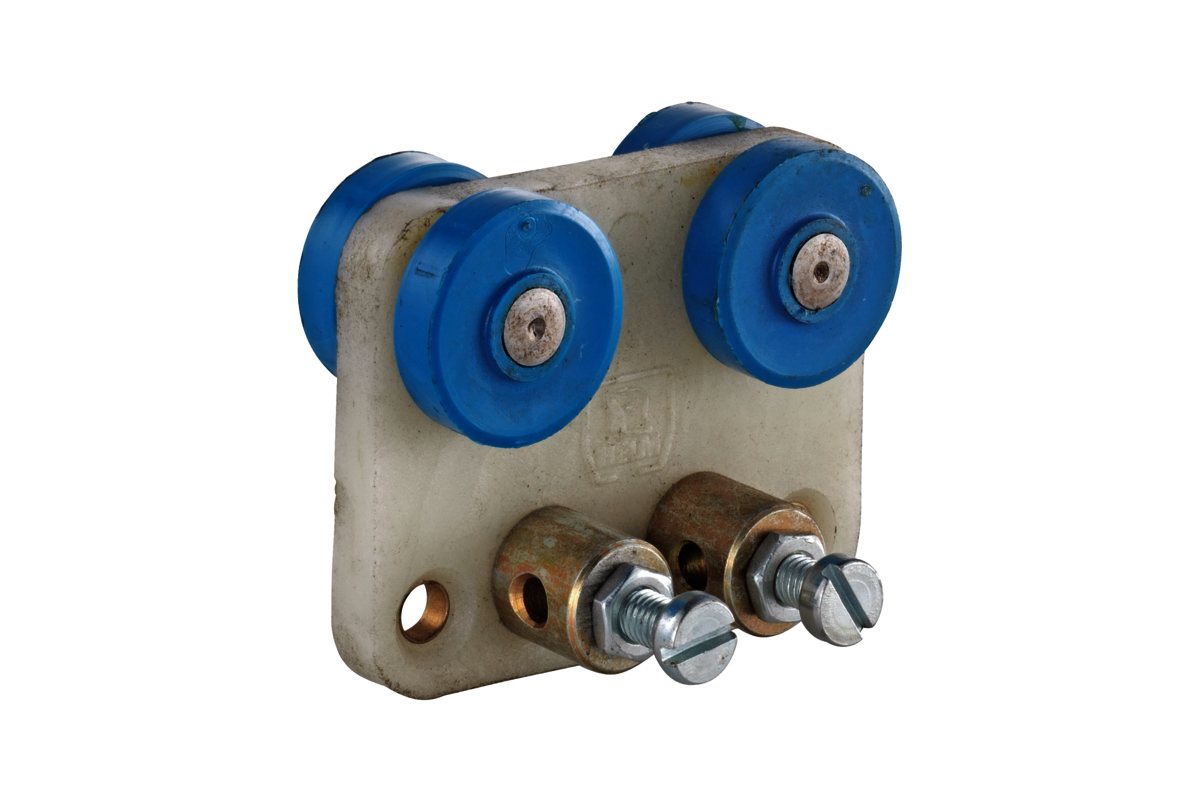

HELM -32 S
Towing trolley
- for curtains
- with wire rope clamp fixing for on-site cable drive (max. Ø 4 mm wire rope)
- with ball bearing (injected in roller body)
Material
plastic
eyes:
brass
Load
max. 10 kg (HELM 132 S / 013262)
max. 20 kg (HELM 332 S / 033262)
Dimensions (in mm)
| Article Art. no. | HELM 132 S HELM 013262 | HELM 332 S HELM 033262 |
| Profile | HELM 100 | HELM 300 |
| b | 60 | 71 |
| b1 | 46 | 53 |
| d | Ø 5 | Ø 6 |
| d1 | Ø 23 | Ø 27,5 |
| h | 24,5 | 26,5 |
| h1 | 17 | 14,5 |
| s | 5,8 | 8,1 |
