HELM 45 / 100 / 300
Bend
- standard arc
- 90 degrees with excess lengths (L)
- other radii (R) and degrees available on request
Material
steel or stainless steel

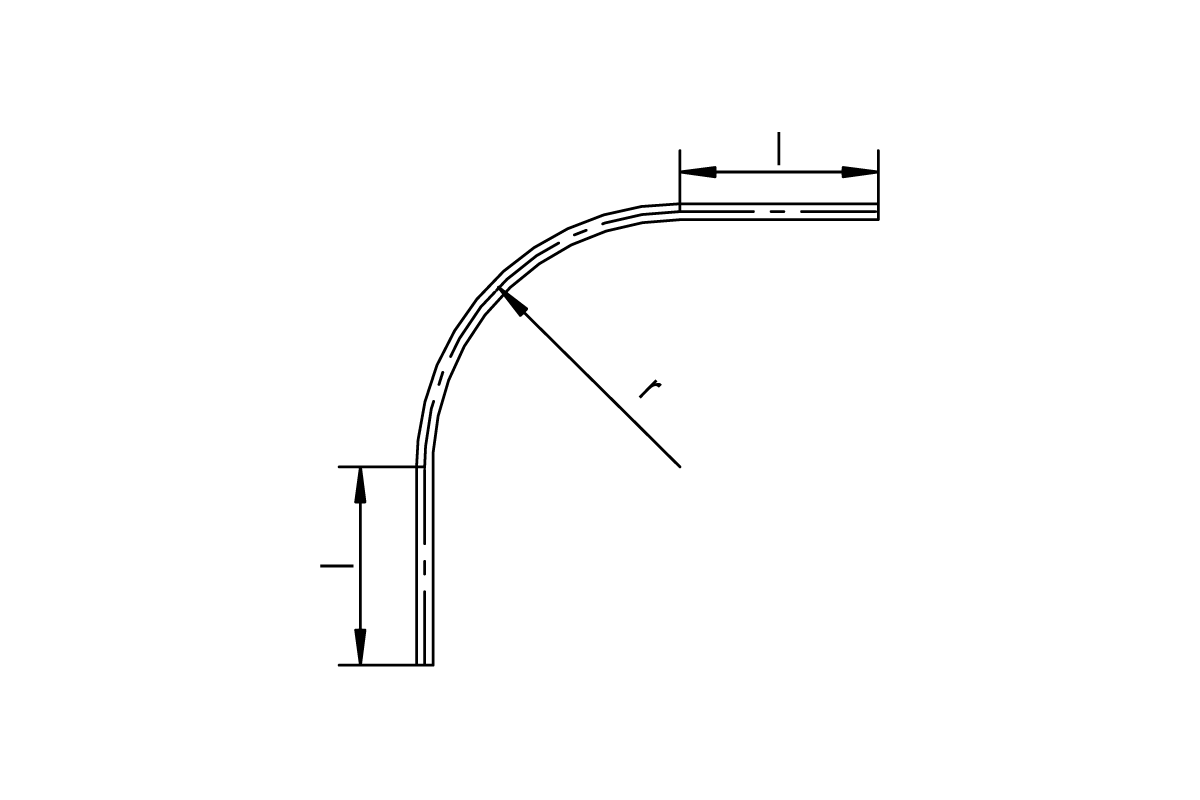

Dimensions (in mm)
| Article Art. no. | HELM 45 HELM 0045.. | HELM 100 HELM 0100.. | HELM 300 HELM 0300.. |
| r | 650 ±10 | 650 ±10* 690 ±15** | 630 ±15* 435 ±15** |
| l | ca. 480 | ca. 480* ca. 450** | ca. 490* ca. 650** |
*with steel
**with stainless steel
