HELM -49 1/2

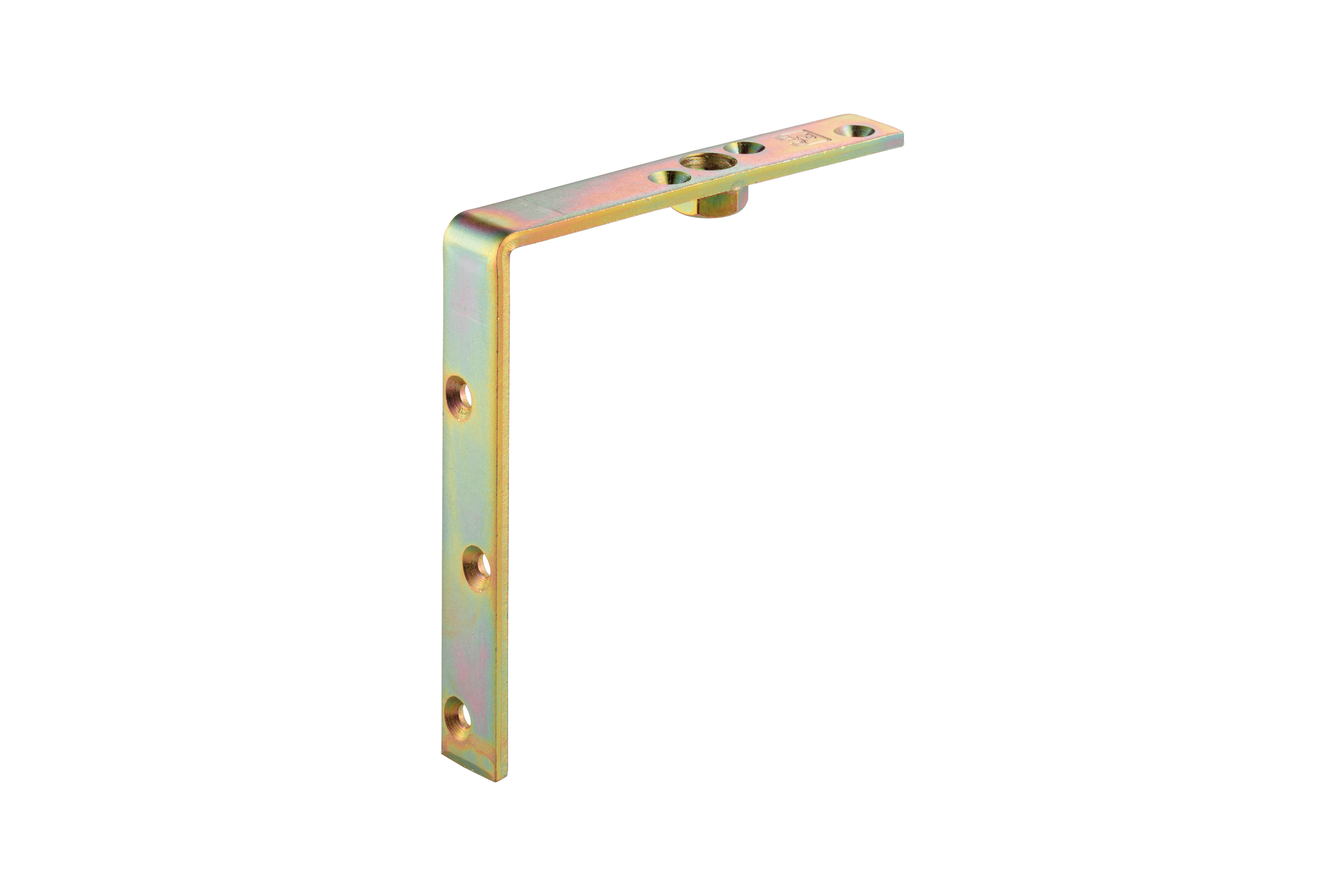

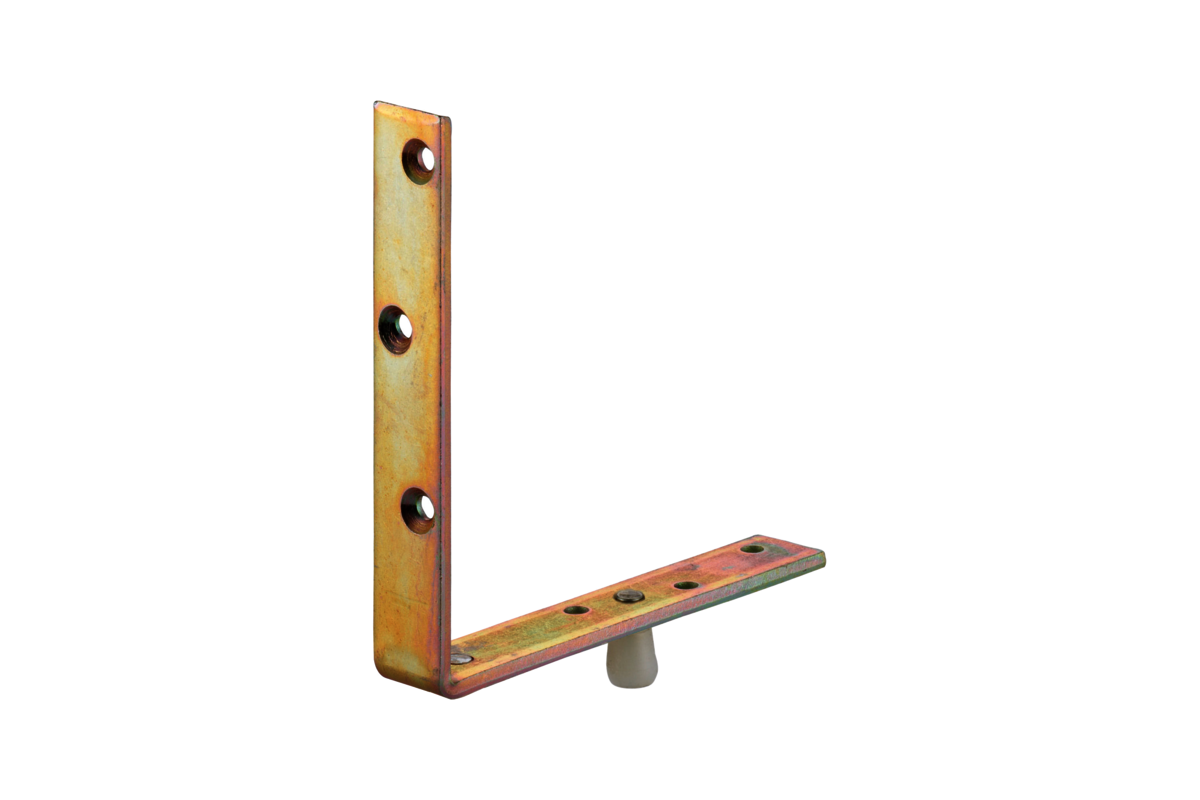

Roller guide with angle bracket for timber leaves
- centrally placed roller
- to be screwed or inserted
- can be used with HELM -40 U-profile inserted into the floor
Material
steel
roller:
plastic or brass
Dimensions (in mm)
| Article Art. no. | HELM 249 1/2 HELM 0249.. | HELM 349 1/2 HELM 0349.. | HELM 449 1/2 HELM 0449.. | HELM 549 1/2 HELM 0549.. |
| U-profile | HELM 240 | HELM 340 | HELM 340 HELM 440 | HELM 440 |
| b | 20 | 30 | 35 | 40 |
| d | Ø 12 | Ø 19 | Ø 19* Ø 32** | Ø 32 |
| h | 138 | 182 | 235* 246** | 296 |
| h1 | 124 | 158 | 210 | 260 |
| l | 124 | 158 | 200 | 255 |
| l1 | 70 | 80 | 120 | 155 |
*for HELM 340 U-profile
**for HELM 440 U-profile
