HELM -95
Support bracket for timber leaves
- with centrally placed thread
- to be screwed or inserted
Material
steel

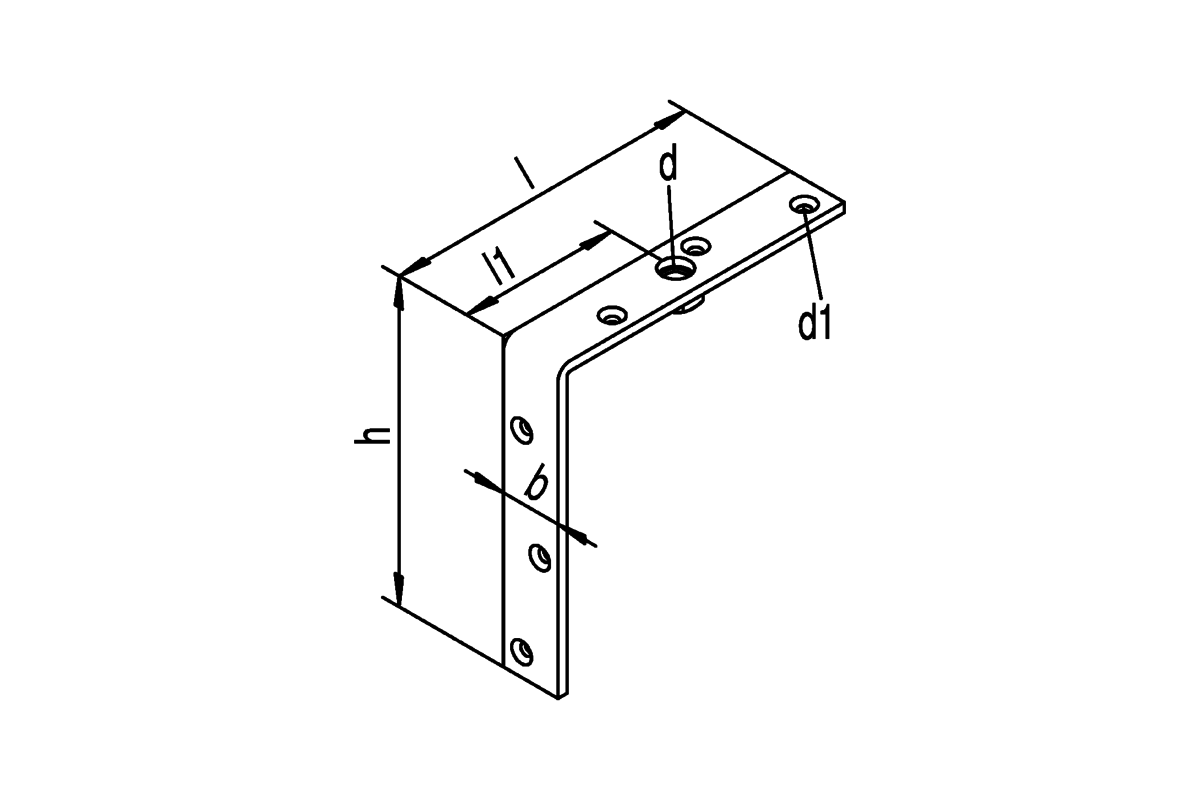

Dimensions (in mm)
| Article Art. no. | HELM 195 HELM 019520 | HELM 395 HELM 039520 | HELM 495 HELM 049520 | HELM 595 HELM 059520 |
| profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 |
| b | 20 | 30 | 35 | 40 |
| d | M10 | M12 | M16 | M20 |
| d1 | Ø 4,8 | Ø 5,9 | Ø 7 | Ø 8,4 |
| h | 124 | 158 | 210 | 260 |
| l | 124 | 158 | 200 | 255 |
| l1 | 70 | 80 | 120 | 155 |
