HELM -12
Trolley
- double-pair
- with pendulum joint
- hardened rollers
- low installation height
- no adjustment or disengagement option
Material
steel
pendulum joint:
plastic (for HELM 112 / 312 / 412) or steel (for HELM 512)
Leaf weight
max. 100 kg (HELM 112 / 011220)
max. 200 kg (HELM 312 / 031220)
max. 400 kg (HELM 412 / 041220)
max. 600 kg (HELM 512 / 051220)

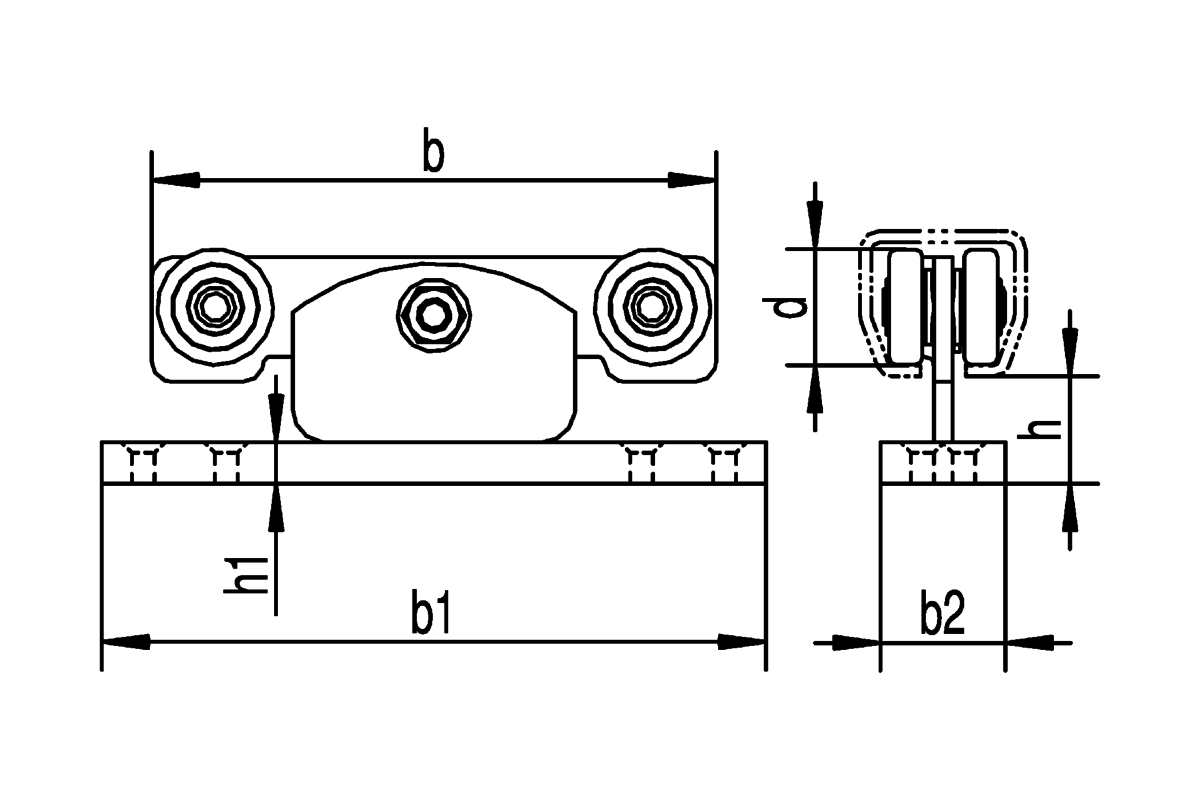

Dimensions (in mm)
| Article Art. no. | HELM 112 HELM 011220 | HELM 312 HELM 031220 | HELM 412 HELM 041220 | HELM 512 HELM 051220 |
| Profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 |
| b | 105 | 136 | 180 | 238 |
| b1 | 100 | 160 | 210 | 265 |
| b2 | 20 | 30 | 40 | 50 |
| d | Ø 22 | Ø 28 | Ø 34 | Ø 48 |
| h | 16 | 25 | 30 | 39,5 |
| h1 | 4 | 10 | 10 | 12 |
