HELM -11
Trolley
- single-pair
- with pendulum joint
- hardened roller
- low installation height
- no adjustment and dismantling possibility
Material
steel
pendulum joint:
plastic (with HELM 111 / 311 / 411) or steel (with HELM 511)
Leaf weight
max. 60 kg (HELM 111 / 011120)
max. 130 kg (HELM 311 / 031120)
max. 200 kg (HELM 411 / 041120)
max. 400 kg (HELM 511 / 051120)

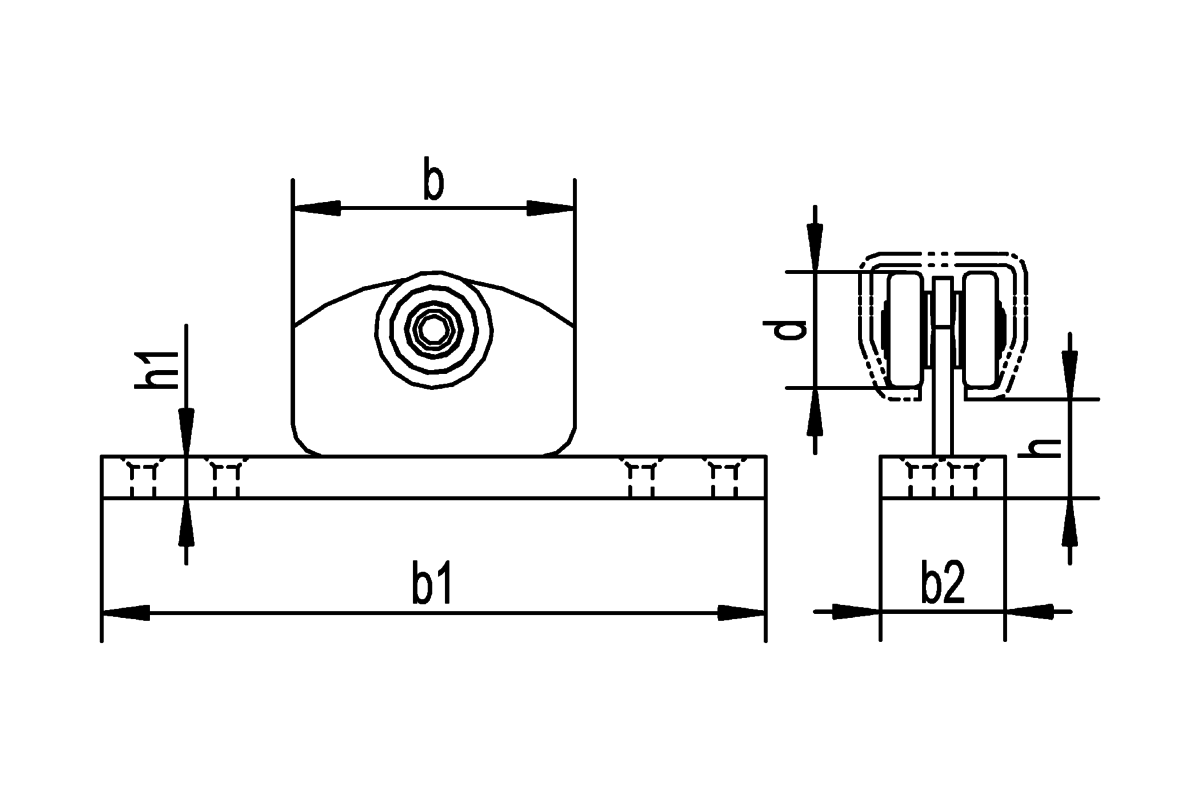

Dimensions (in mm)
| Article Art. no. | HELM 111 HELM 011120 | HELM 311 HELM 031120 | HELM 411 HELM 041120 | HELM 511 HELM 051120 |
| profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 |
| b | 50 | 68 | 90 | 110 |
| b1 | 100 | 160 | 210 | 265 |
| b2 | 20 | 30 | 40 | 50 |
| d | Ø 22 | Ø 28 | Ø 34 | Ø 48 |
| h | 16 | 23,5 | 29,3 | 39,5 |
| h1 | 4 | 10 | 10 | 12 |
