HELM -04 WDF
Double wall bracket
- angle bracket fixing with lateral adjustment option
- also compatible with HELM -04 F fire-rated coupling
Material
steel

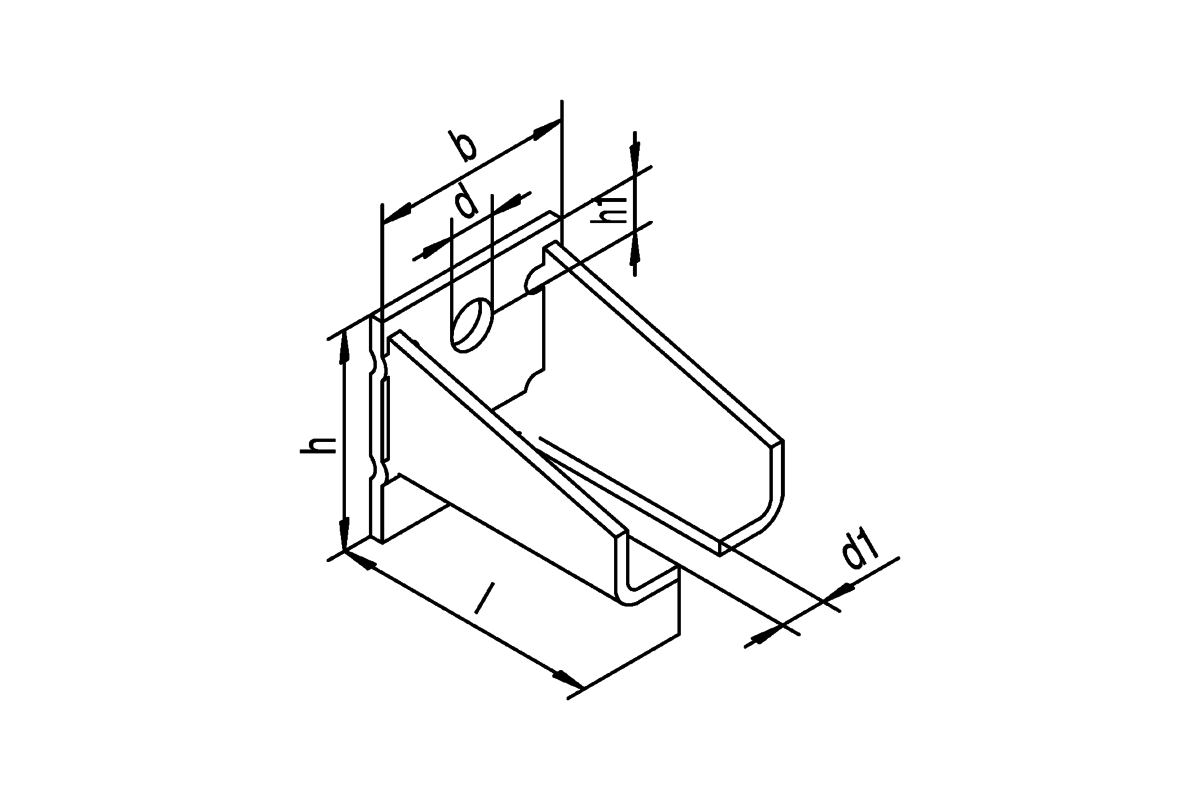

Dimensions (in mm)
| Article Art. no. | HELM 404 WDF HELM 040422-100 | HELM 604 WDF HELM 060423 |
| Profile | HELM 300 HELM 400 | HELM 500 HELM 600 |
| b | 75 | 120 |
| d | Ø 17 | Ø 18 |
| d1 | 17 | 21 |
| h | 80 | 110 |
| h1 | 20 | 25 |
| l | 100 | 162 |
