HELM -04 F
Fire-rated sleeve
particularly for use with fire-rated gates
Material
steel

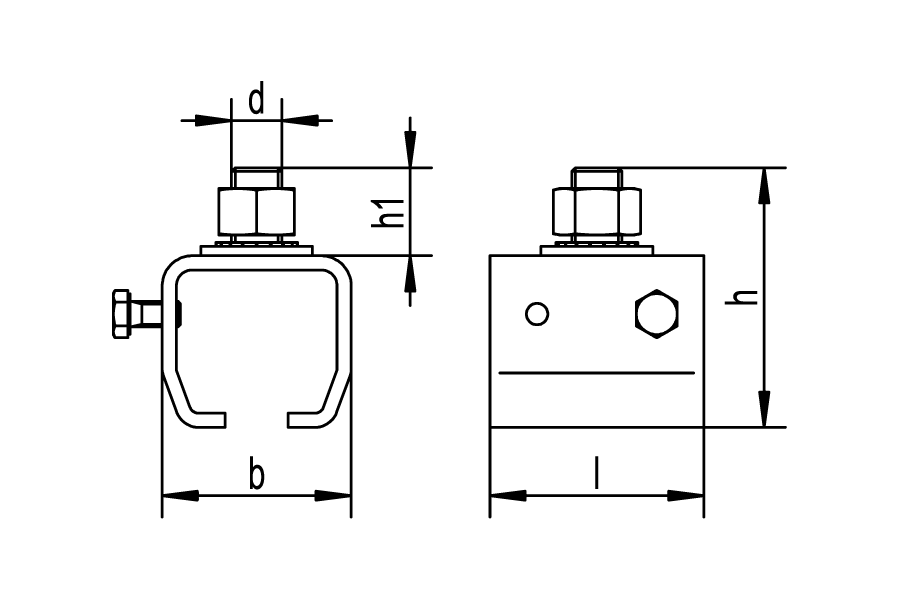

Dimensions (in mm)
| Article Art. no. | HELM 404 F HELM 040428 | HELM 504 F HELM 050424 | HELM 604 F HELM 060424 |
| Profile | HELM 400 | HELM 500 | HELM 600 |
| b | 60 | 80 | 100 |
| d | M16 | M20 | M20 |
| h | 95,5 | 113 | 132 |
| h1 | 41 | 38 | 38 |
| l | 68 | 90 | 110 |
