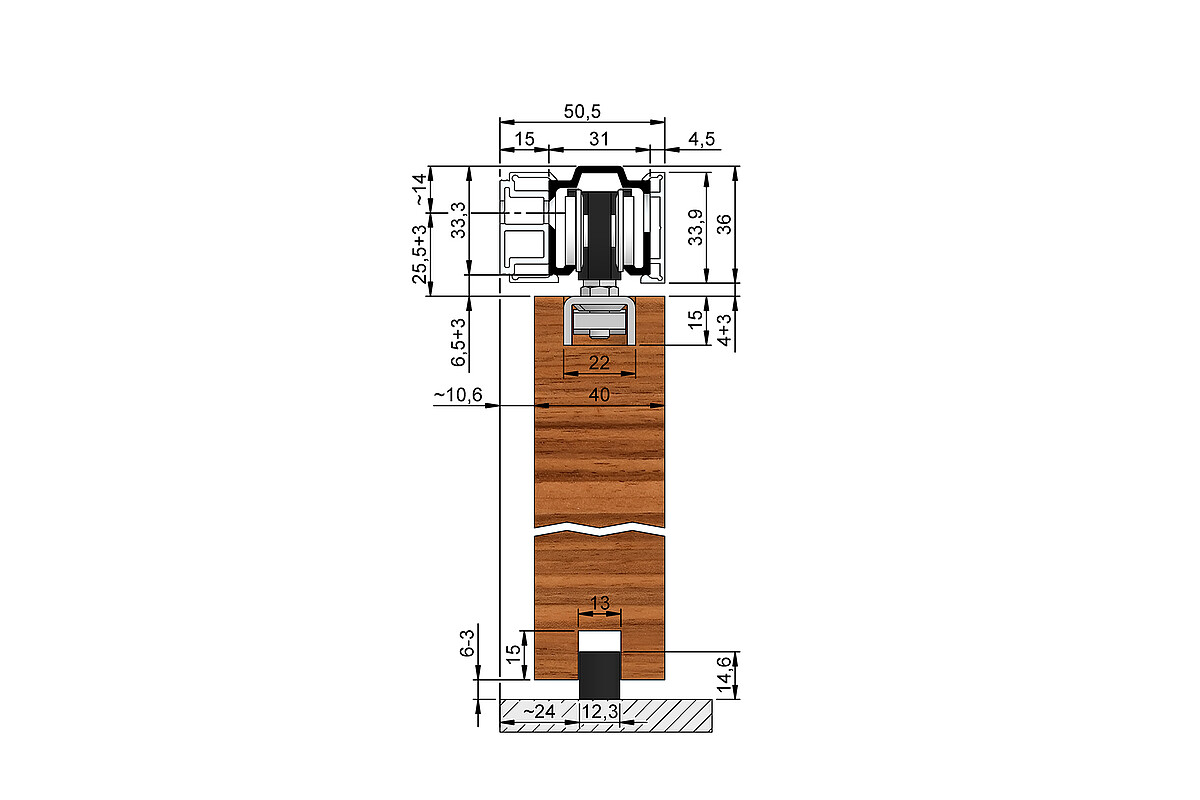

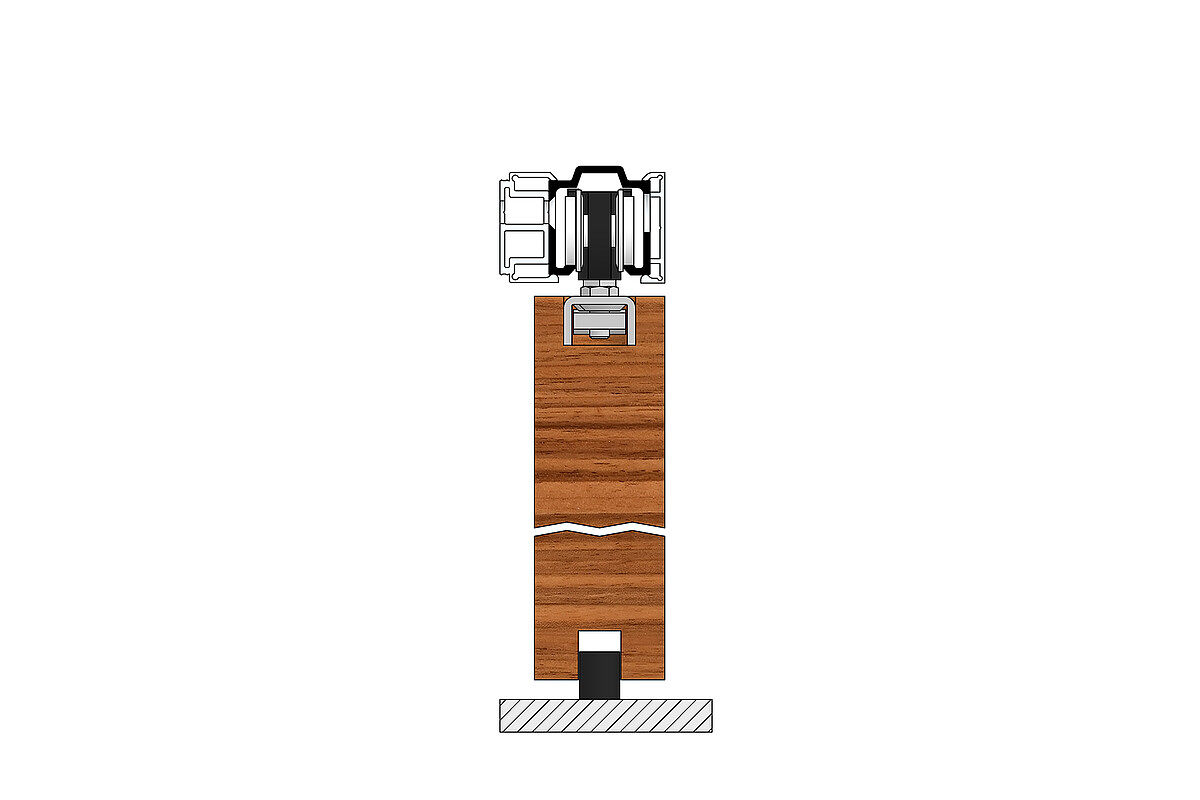

HELM MK-L 80 H 127
Sliding door system for leaves up to 80 kg, minimal headroom (ME-V), wall installation with 15 mm spacer profile and pelmet
- for interior sliding doors made of timber
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- tested according to DIN EN 1527:2022 (200.000 cycles)
Leaf weight
max. 80 kg
Leaf thickness
from 35 mm
Leaf width
min. 650 mm (with damper and soft closing device on one side)
min. 860 mm (with damper and soft closing device on both sides)

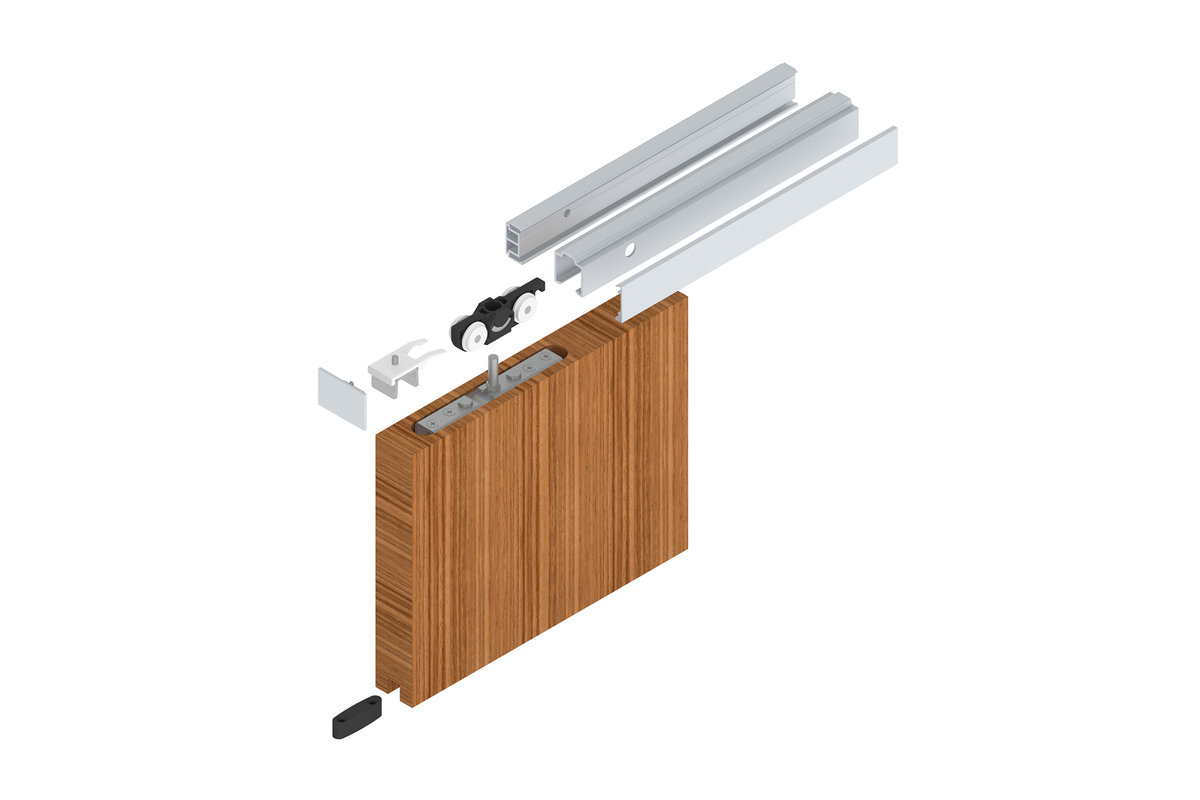

Set contents
| Quantity 1 leaf | 2 leaves | Article |
| 1 pc. | 1 pc. | HELM 53/73 track, drilled on the side |
| 1 pc. | 1 pc. | HELM spacer profile, 15 mm, drilled |
| 1 pc. | 1 pc. | HELM ME clip-on pelmet, 33,9 mm |
| 1 pc. | 1 pc. | HELM end cap set |
| 2 pc. | 4 pc. | HELM 73 trolley with ball bearing |
| 2 pc. | 4 pc. | HELM 73 V flange with support bolt |

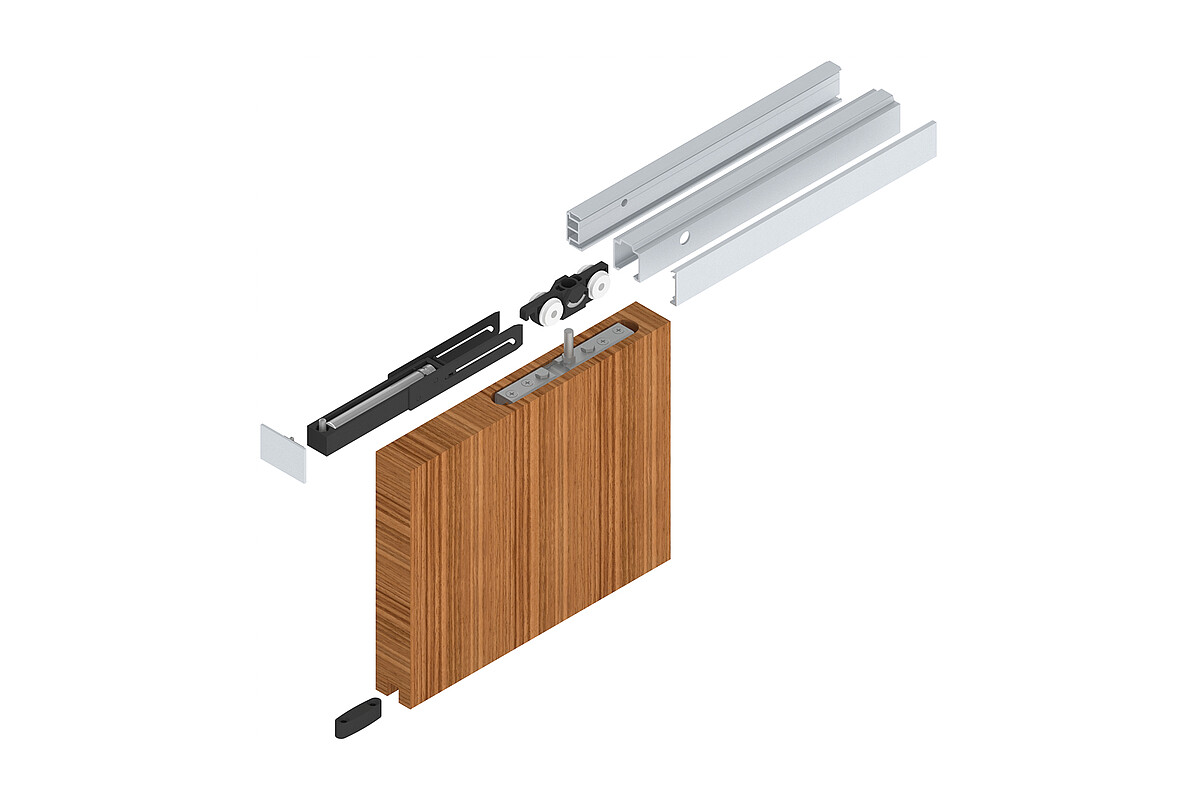

| 2 pc. | 4 pc. | HELM 65 P door catcher (when selecting "without damper and soft closing device") or HELM SmartStop FG 80 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| 1 pc. | 2 pc. | HELM 216 bottom guide (mounting material included) |
*clip-on pelmet and end caps black matte coated, track and spacer profile silver anodised
