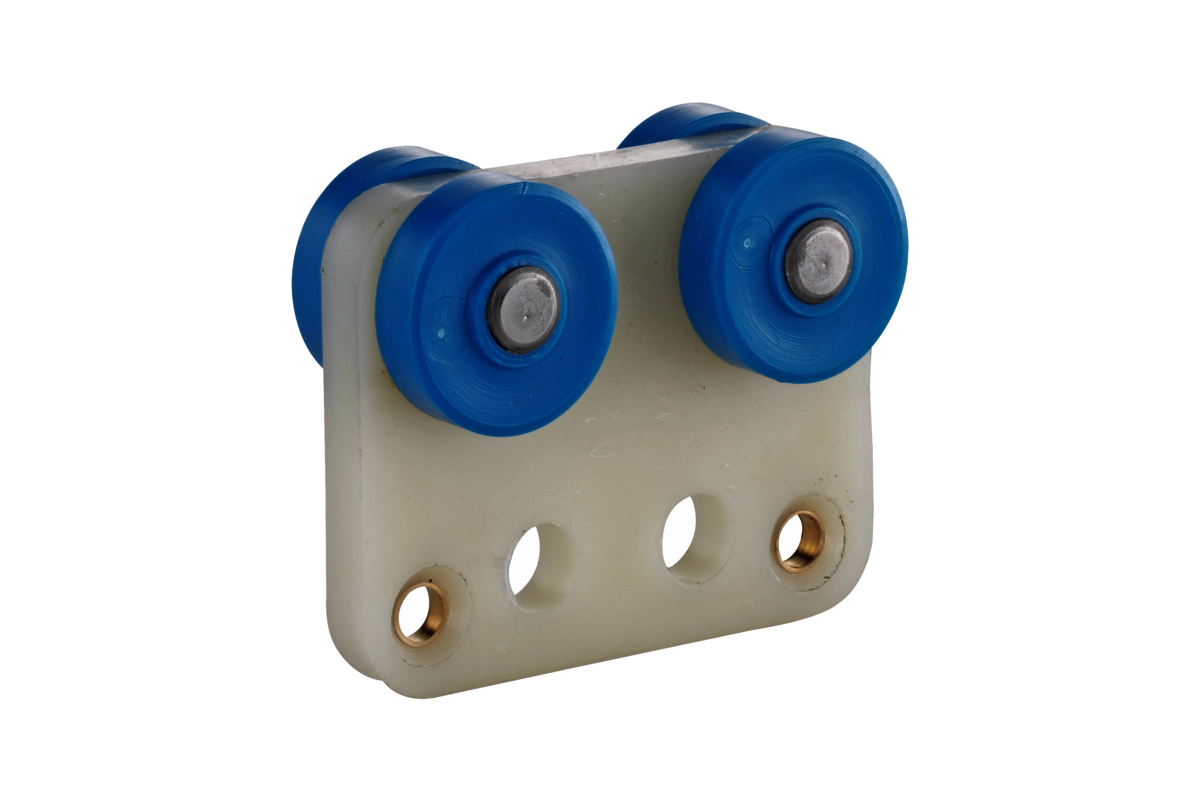

HELM -/32 K
Towing trolley
- for curtains
- with ball bearing (injected in roller body)
Material
plastic
eyes:
brass
Load
max. 5 kg (HELM 45/32 K / 0045..)
max. 10 kg (HELM 132 K / 0132..)
max. 20 kg (HELM 332 K / 0332..)

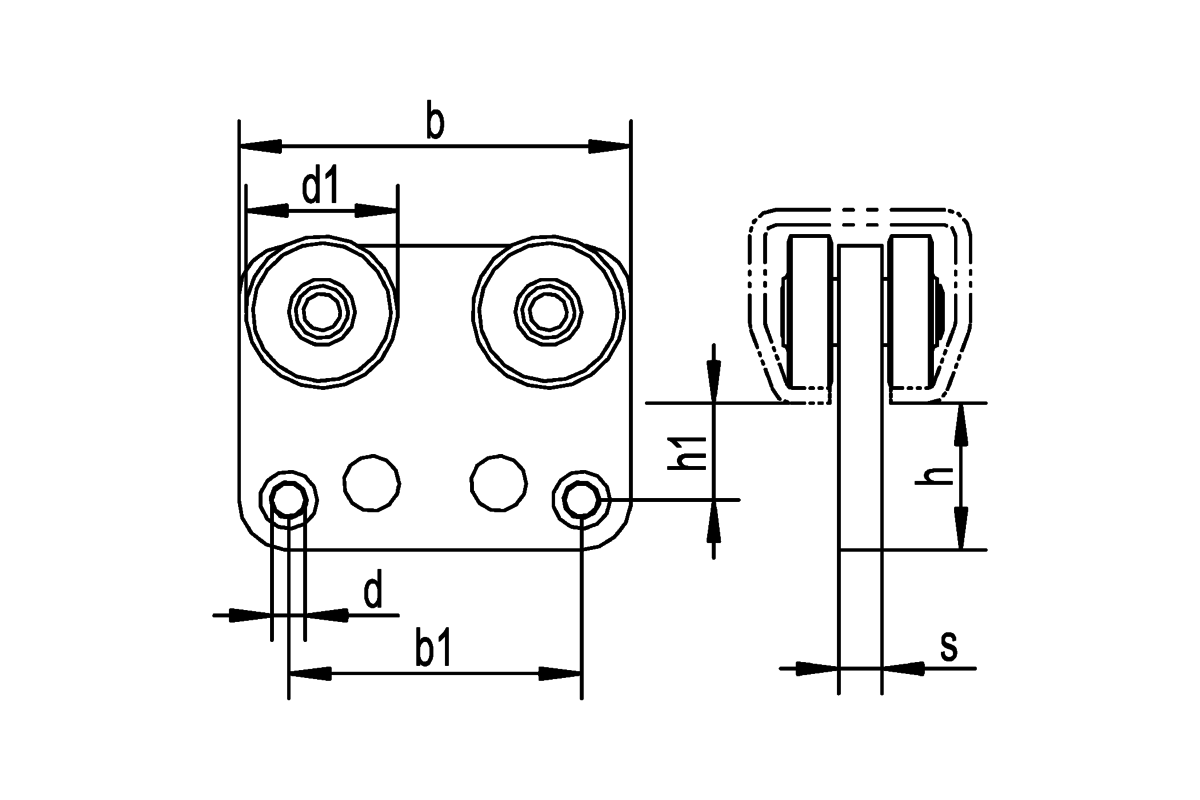

Dimensions (in mm)
| Article Art. no. | HELM 45/32 K HELM 0045.. | HELM 132 K HELM 0132.. | HELM 332 K HELM 0332.. |
| Profil | HELM 45 | HELM 100 | HELM 300 |
| b | 52 | 60 | 71 |
| b1 | 40 | 46 | 53 |
| d | Ø 5 | Ø 5 | Ø 6 |
| d1 | Ø 20 | Ø 23 | Ø 27,5 |
| h | 21,5 | 24,5 | 26,5 |
| h1 | 16 | 17 | 17,5 |
| s | 4,8 | 5,8 | 7,8 |
