KWS 6028..

Locking handle for one-sided door operation

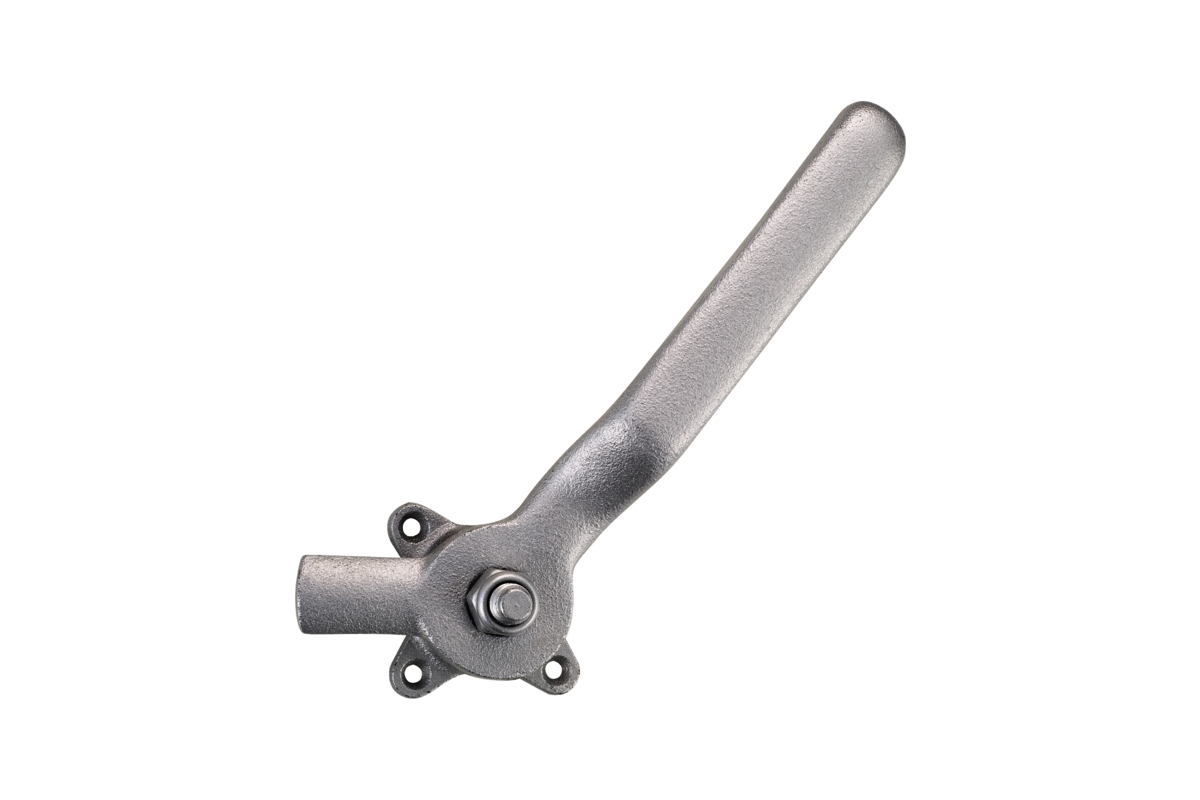

Picture shows KWS 6028.02.10000 (direction right)

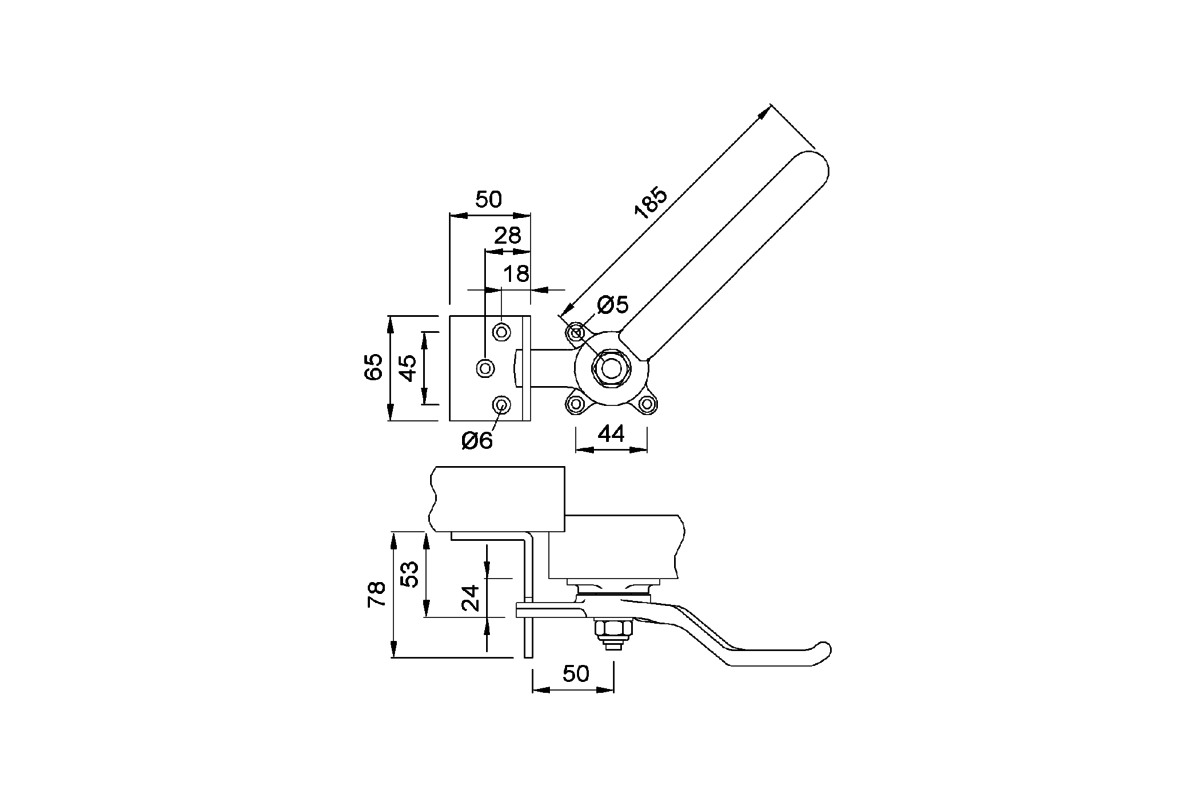

Drawing shows KWS 6028..

Do you have questions regarding the product?
We are happy to advise you!

Finish

Please make a new selection.

Direction

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 6028..
Locking handle for one-sided door operation
with angled strike plate

Material
malleable cast iron
angled strike plate:
steel

Door operation
one-sided

Unit weight
0,810 kg
Installation
Screw on the locking handle according to the dimensions in the product drawing. Fix the strike plate at the corresponding position.
The actuation path of the lever is at 45 degrees. The locking handle should be installed in such a way that the lever is level in the open position.
Downloads
Product drawing (DWG)
