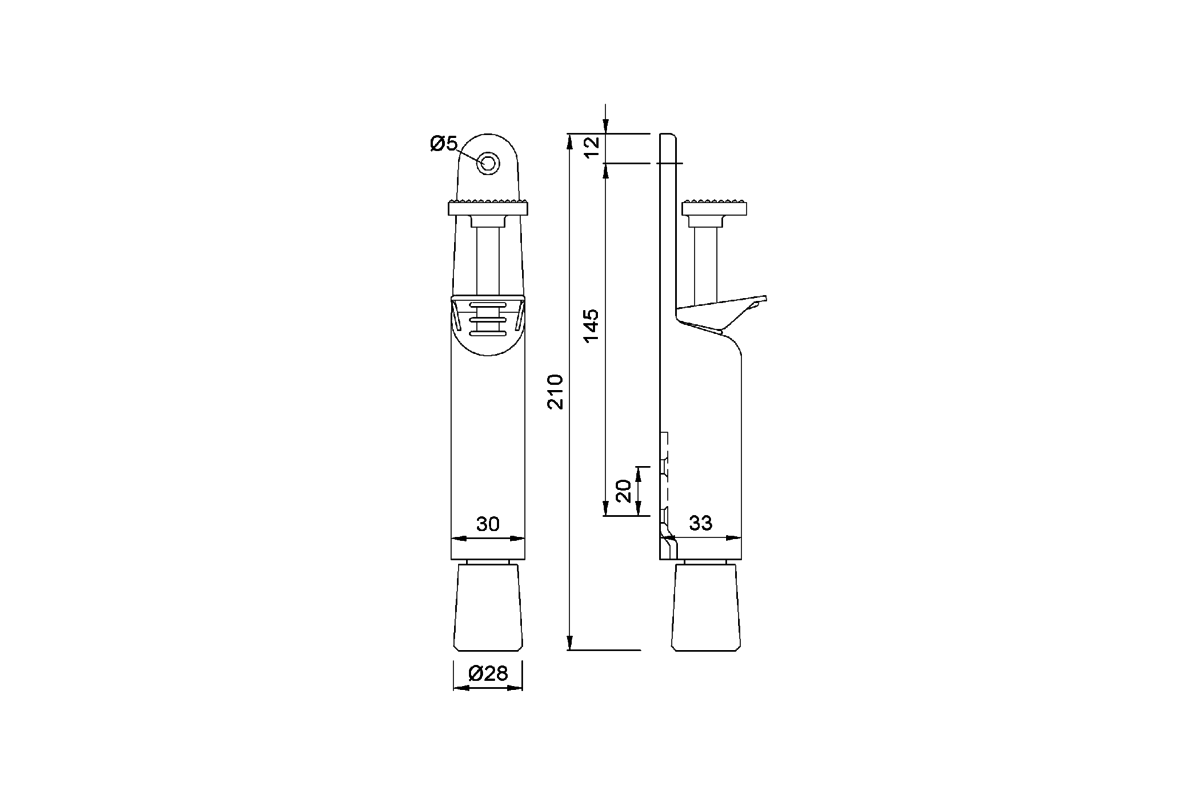

KWS 1032..
Door holder with throw
Material
steel, brass or stainless steel
bolt:
steel, galvanized, brass or stainless steel
foot:
rubber, black
Mode of operation
foot actuation
Door weight
max. 40 kg
Throw
30 mm (KWS 1032..)
50 mm (KWS 1034..)
Unit weight
0,340 kg (KWS 1032.. steel)
0,350 kg (KWS 1032.. brass)
0,340 kg (KWS 1032.. stainless steel))
0,360 kg (KWS 1034.. steel)
0,370 kg (KWS 1034.. brass)
0,360 kg (KWS 1034.. stainless steel)
The door can be held open at any angle.
To hold the door in place, push down the bolt until the foot is being pressed firmly on the floor. Pushing the check plate gently releases the door.
The default hub spring improves the contact pressure applied to the floor.

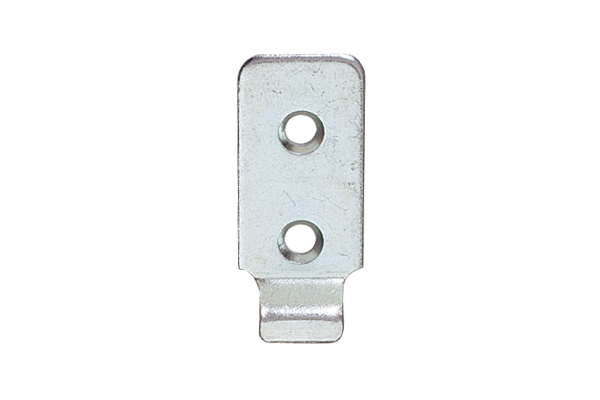

Mount the door holder on the door with three screws in combination with a fixing plate at the furthest possible distance from the door hinge. The distance from the bottom edge of the door to the foot should be 5 to 10 mm.
With every packaging unit, installation instructions and a drilling template are included.
