KWS End support 8309 in finish 82 (stainless steel, matte), direction leftProduct drawing KWS End support 8305 / 8309 / 8310 / 8H09 / 8H10
✕

KWS 8305..

Bent end support, series RS

Back to overview

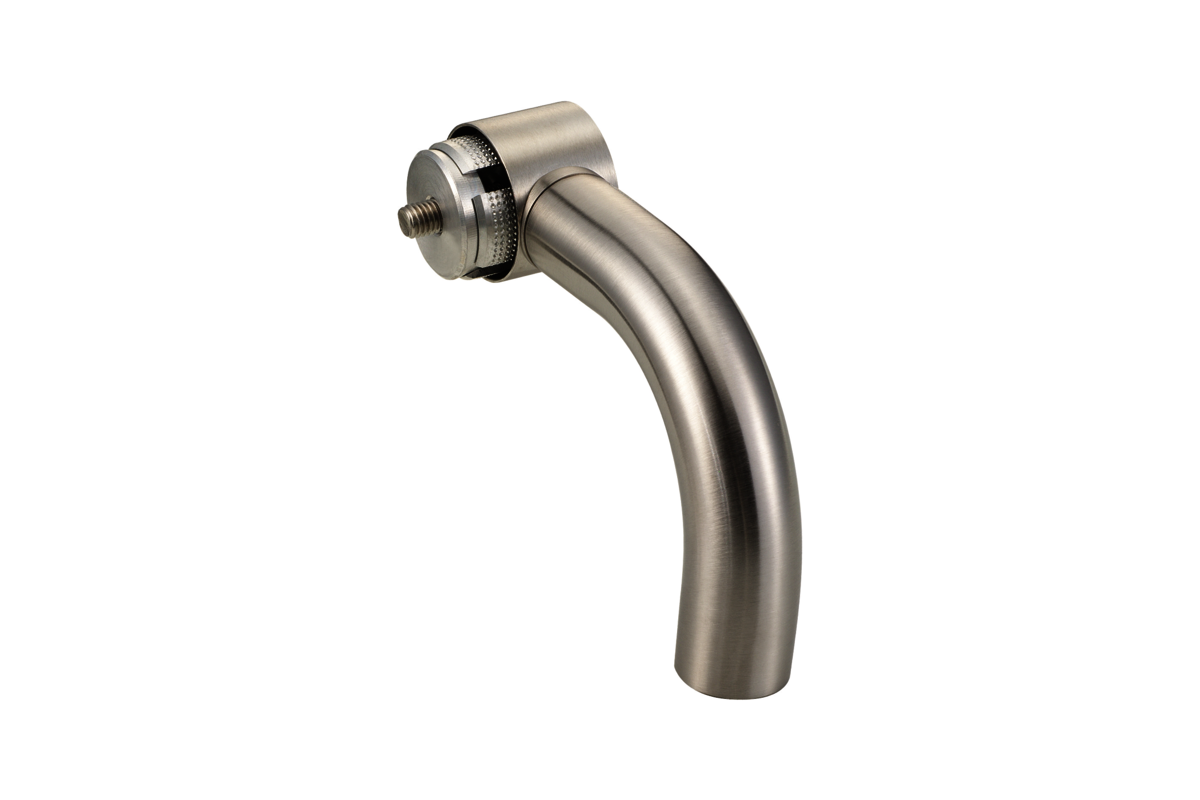

KWS End support 8309 in finish 82 (stainless steel, matte), direction left
Picture shows KWS 8309.82.00000 (direction left)

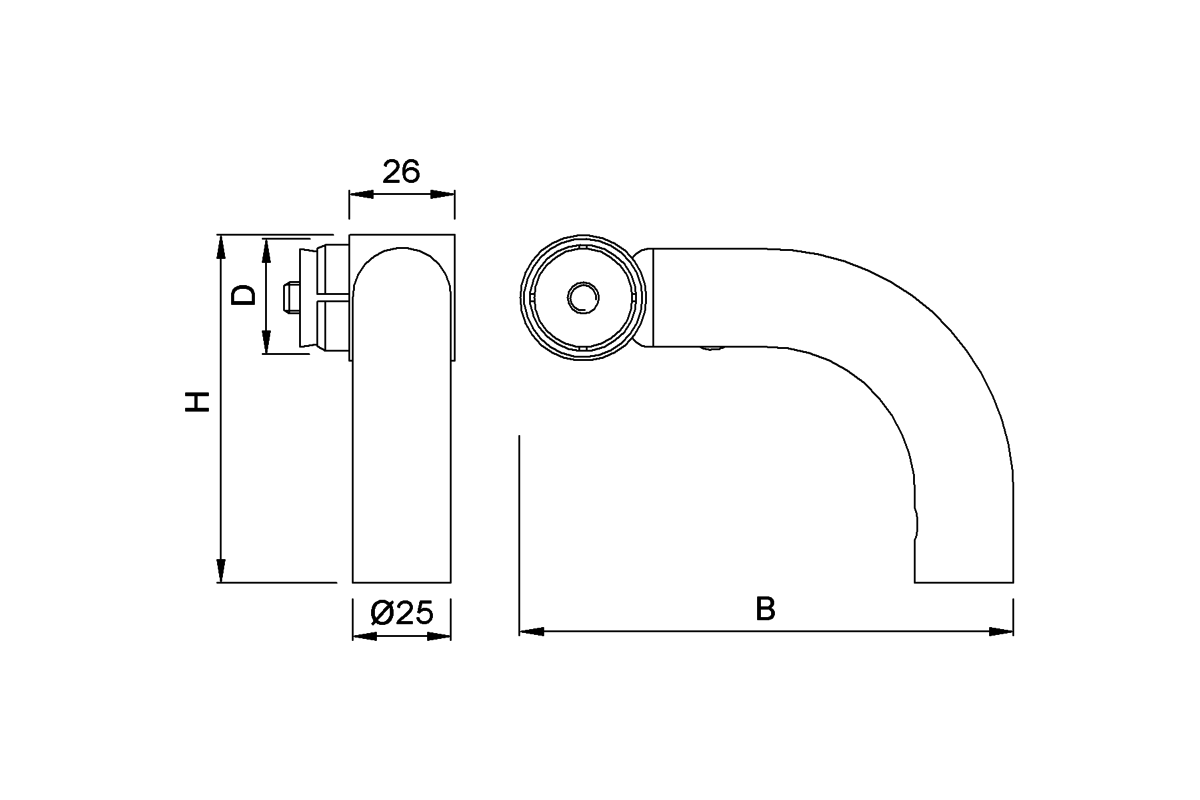

Product drawing KWS End support 8305 / 8309 / 8310 / 8H09 / 8H10
Drawing shows KWS 8305.. ff.

Do you have questions regarding the product?
We are happy to advise you!

Configure product

Please make a new selection.
Please make a new selection.
Please make a new selection.

Article number

KWS 8305.82.000008305.82.00000266
Please correct all errors and fill in all fields.
Please enter a quantity.
piece(s)

Downloads

  • Product information

    KWS 8305..
    Bent end support, series RS

    • series RS: round support with socket for invisible tube ends
    • bent 90 degrees
    • for concealed fixing
    • fastening elements in the handle support
    • mounting material available separately


    Material
    stainless steel

    clamping element:
    aluminium


    Dimensions (in mm)

    Art. no.DBH
    KWS 8305..tube, Ø 30 x 1,512388,5
    KWS 8309..tube, Ø 35 x 1,512891
    KWS 8310..tube, Ø 40 x 213393,5
    KWS 8H09..timber, Ø 3512891
    KWS 8H10..timber, Ø 4013393,5
