HELM -96
Support bracket for timber leaves
- with laterally placed thread
- to be screwed or inserted
Material
steel

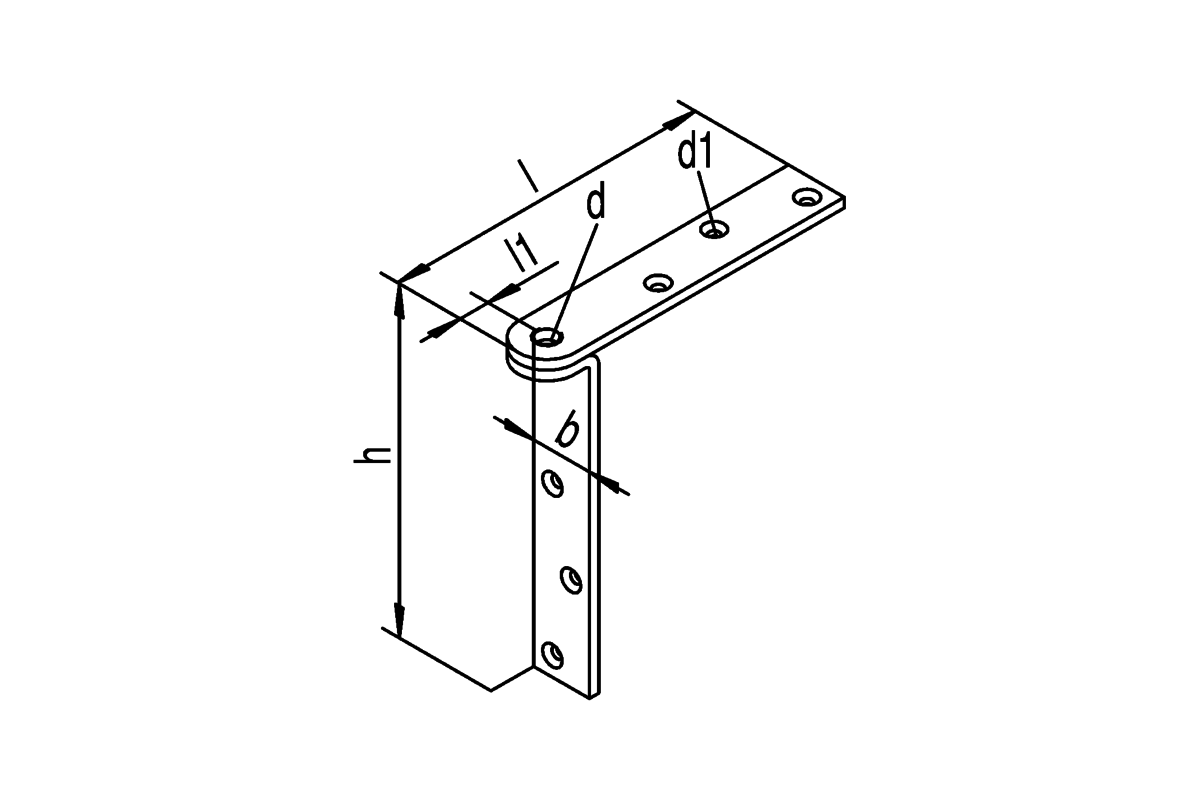

Dimensions (in mm)
| Article Art. no. | HELM 196 HELM 019620 | HELM 396 HELM 039620 | HELM 496 HELM 049620 | HELM 596 HELM 059620 |
| profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 |
| b | 20 | 30 | 35 | 40 |
| d | M10 | M12 | M16 | M20 |
| d1 | Ø 4,8 | Ø 5,4 | Ø 7 | Ø 8,4 |
| h | 120 | 165 | 223 | 260 |
| l | 130 | 160 | 219 | 280 |
| l1 | 10 | 15 | 18 | 20 |
