HELM -49 A
Roller guide with angle bracket for timber leaves
- laterally placed roller
- to be screwed or inserted
- can be used with HELM -40 U-profile inserted into the floor
Material
steel
roller:
plastic or brass

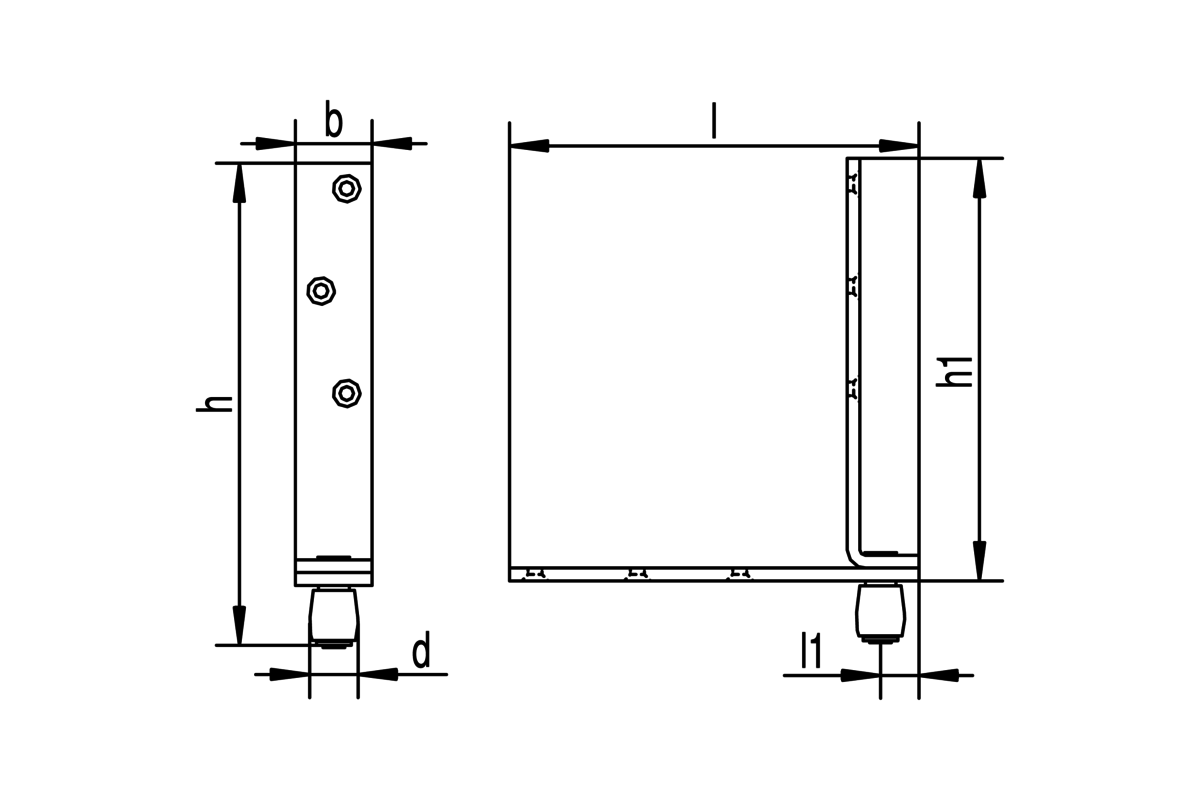

Dimensions (in mm)
| Article Art. no. | HELM 249 A HELM 0249.. | HELM 349 A HELM 0349.. | HELM 449 A HELM 0449.. | HELM 549 A HELM 0549.. |
| U-profile | HELM 240 | HELM 340 | HELM 340 HELM 440 | HELM 440 HELM 540 |
| b | 20 | 30 | 35 | 40 |
| d | Ø 12 | Ø 19 | Ø 19* Ø 32** | Ø 32** Ø 49,5*** |
| h | 142 | 188,5 | 248* 258,5** | 296** 306,5*** |
| h1 | 128 | 165 | 223 | 260 |
| l | 130 | 160 | 219 | 280 |
| l1 | 10 | 15 | 18 | 20 |
*for HELM 340 U-profile
**for HELM 440 U-profile
***for HELM 540 U-profile
