HELM -92
Trolley for gates with folding leaf
- double-pair
- with pendulum joint and counterpressure roller
- hardened rollers
- height-adjustable
Material
steel
Leaf weight
max. 100 kg (HELM 192 / 019220)
max. 200 kg (HELM 392 / 039220)
max. 400 kg (HELM 492 / 049220)
max. 600 kg (HELM 592 / 059220)
max. 1.200 kg (HELM 692 / 069220)

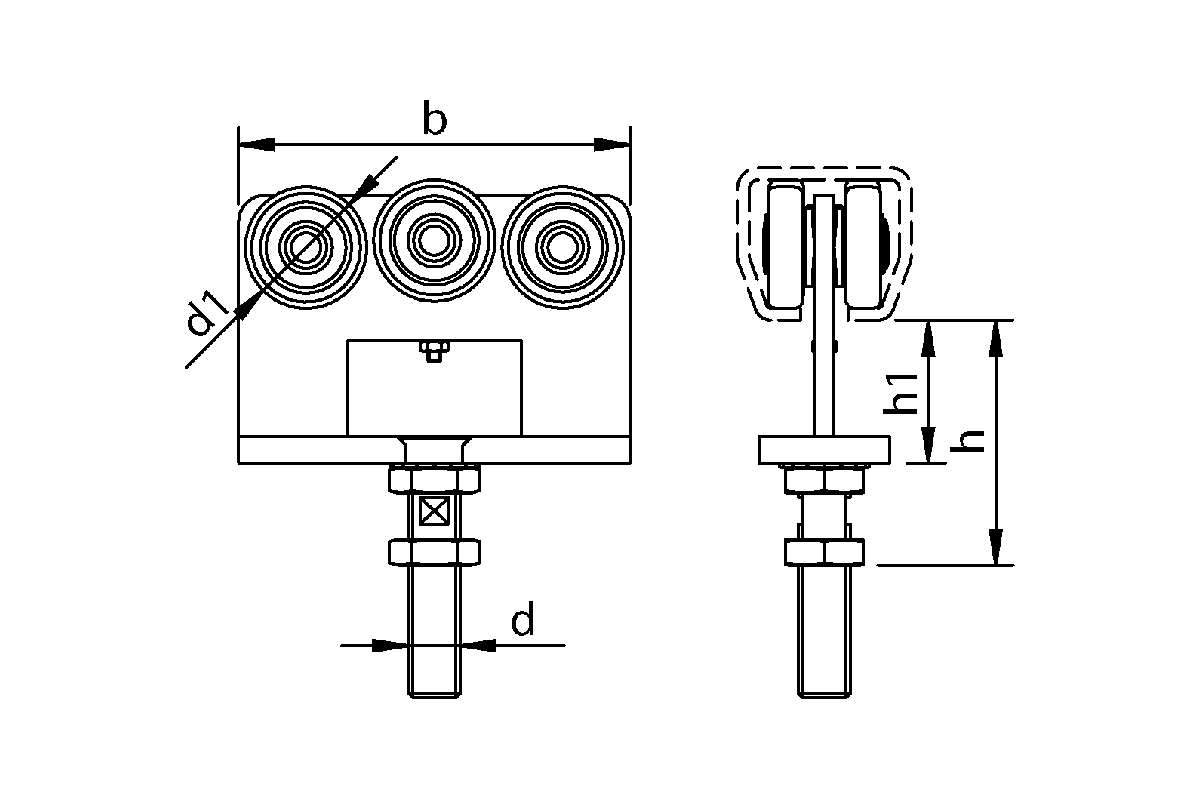

Dimensions (in mm)
| Article Art. no. | HELM 192 HELM 019220 | HELM 392 HELM 039220 | HELM 492 HELM 049220 | HELM 592 HELM 059220 | HELM 692 HELM 069220 |
| Profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 | HELM 600 |
| b | 68 | 90 | 120 | 160 | 190 |
| d | M10 x 40 | M12 x 60 | M16 x 70 | M20 x 90 | M24 x 160 |
| d1 | Ø 22 | Ø 28 | Ø 34 | Ø 48 | Ø 60 |
| h | 45 +8 | 52 +20 | 59 +18 | 77 +17 | 100 +75 |
| h1 | 25 | 32,8 | 34 | 36,4 | 57 |
