HELM 1T-00-
Trolley for leaves up to 8.000 kg
- special rollers for large hall gates, radiation protection doors or hangar gates
- with ball bearings
- can be used with U-profile steel 160 and 200 (DIN 1026-1) (on site, also the installation of the profile)
Material
steel
Load
max. 1.500 kg (HELM 1T-008 / 100810)
max. 4.000 kg (HELM 1T-007 / 100710)
Leaf weight
max. 3.000 kg (2 x HELM 1T-008 / 100810)
max. 8.000 kg (2 x HELM 1T-007 / 100710)

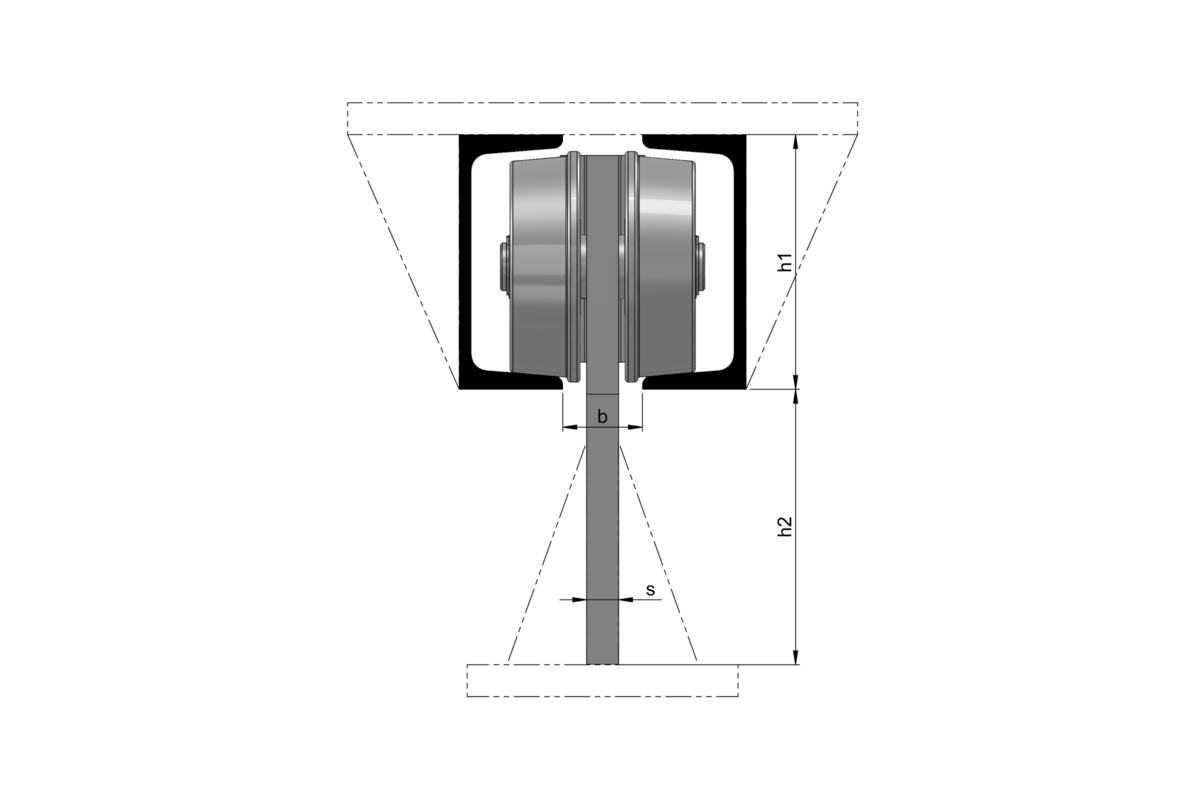

Dimensions (in mm)
| Article Art. no. | HELM 1T-008 HELM 100810 | HELM 1T-007 HELM 100710 |
| U-profile steel (h1) | 160 | 200 |
| b | 50 | 60 |
| h | 320 | 360 |
| h2 | 172 | 174 |
| l | 600 | 660 |
| l1 | 200 | 200 |
| s | 20 | 25 |
