HELM -10
Trolley
- double-pair
- with pendulum joint
- hardened rollers
- height-adjustable
Material
steel
pendulum joint:
plastic (for HELM 110 / 310 / 410) or steel (for HELM 510 / 610)
Leaf weight
max. 100 kg (HELM 110 / 011020)
max. 200 kg (HELM 310 / 031020)
max. 400 kg (HELM 410 / 041020)
max. 600 kg (HELM 510 / 051020)
max. 1.200 kg (HELM 610 / 061020)

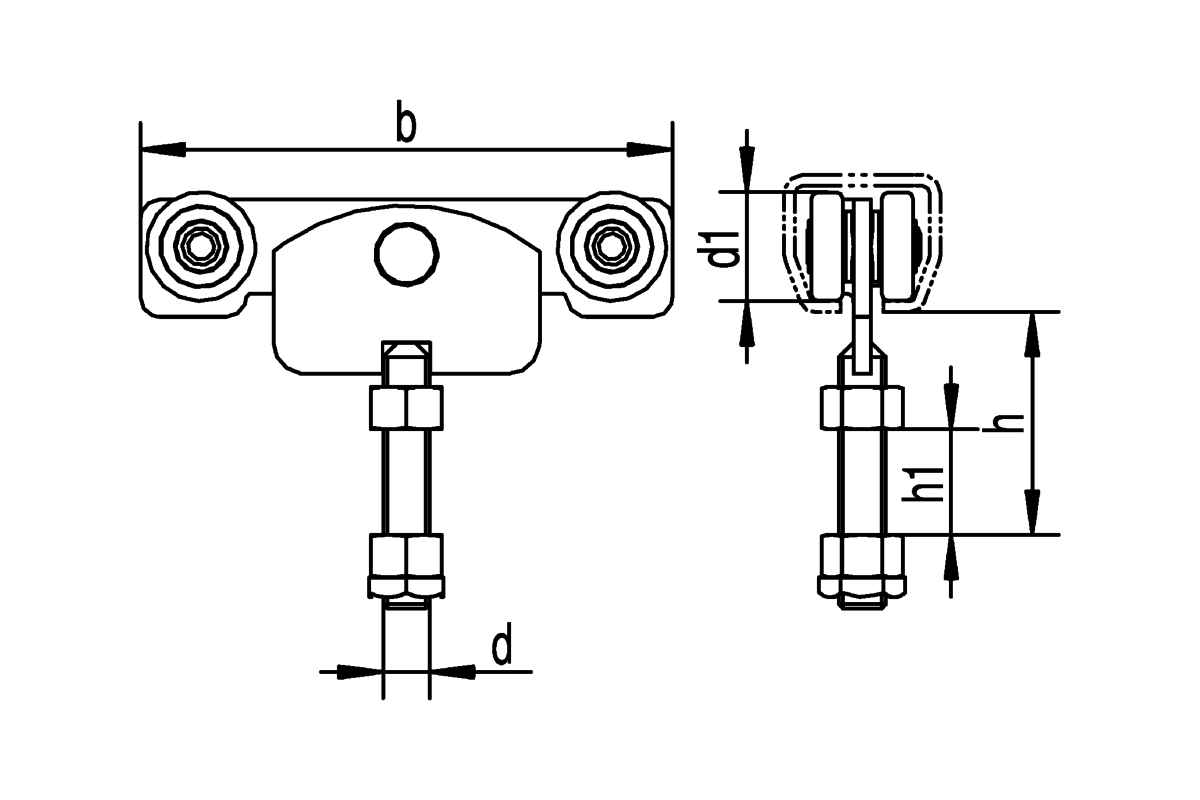

Dimensions (in mm)
| Article Art. no. | HELM 110 HELM 011020 | HELM 310 HELM 031020 | HELM 410 HELM 041020 | HELM 510 HELM 051020 | HELM 610 HELM 061020 |
| Profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 | HELM 600 |
| b | 105 | 136 | 180 | 238 | 234 |
| d | M10 | M12 | M16 | M20 | M24 |
| d1 | Ø 22 | Ø 28 | Ø 34 | Ø 48 | Ø 60 |
| h | 44 | 57 | 78 | 104 | 125 |
| h1 | 19 | 27 | 40 | 51 | 40 |
