HELM -09
Trolley
- single-pair
- with pendulum joint
- hardened roller
- height adjustable
Material
steel
pendulum joint:
plastic (with HELM 109 / 309 / 409) or steel (with HELM 509 / 609)
Leaf weight
max. 60 kg (HELM 109 / 010920)
max. 130 kg (HELM 309 / 030920)
max. 200 kg (HELM 409 / 040920)
max. 400 kg (HELM 509 / 050920)
max. 800 kg (HELM 609 / 060920)

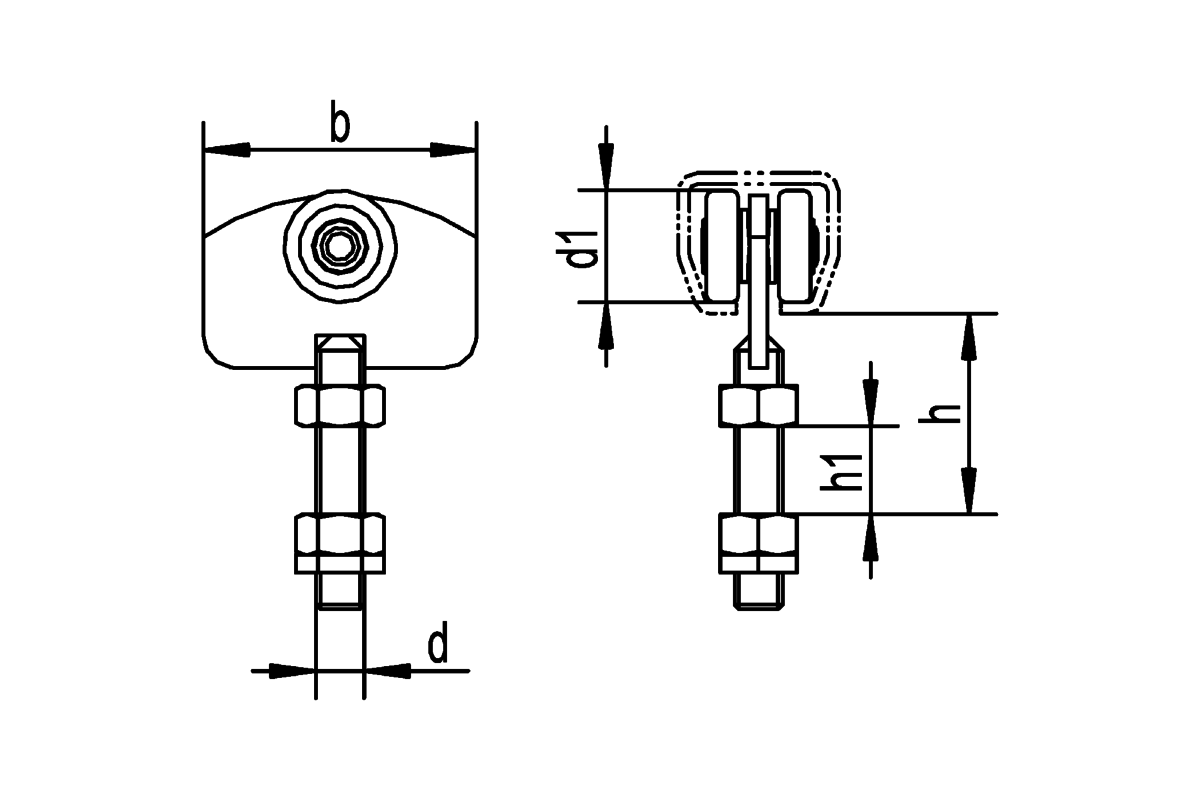

Dimensions (in mm)
| Article Art. no. | HELM 109 HELM 010920 | HELM 309 HELM 030920 | HELM 409 HELM 040920 | HELM 509 HELM 050920 | HELM 609 HELM 060920 |
| profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 | HELM 600 |
| b | 50 | 68 | 90 | 110 | 60 |
| d | M10 | M12 | M16 | M20 | M24 |
| d1 | Ø 22 | Ø 28 | Ø 34 | Ø 48 | Ø 60 |
| h | 44 | 50 | 75,5 | 111 | 125 |
| h1 | 19 | 22 | 35 | 63 | 50 |
