HELM -04 WD
Double wall bracket
- angle bracket fixing with lateral adjustment option
- compatible with two height-adjustable HELM -04 couplings
Material
steel or stainless steel

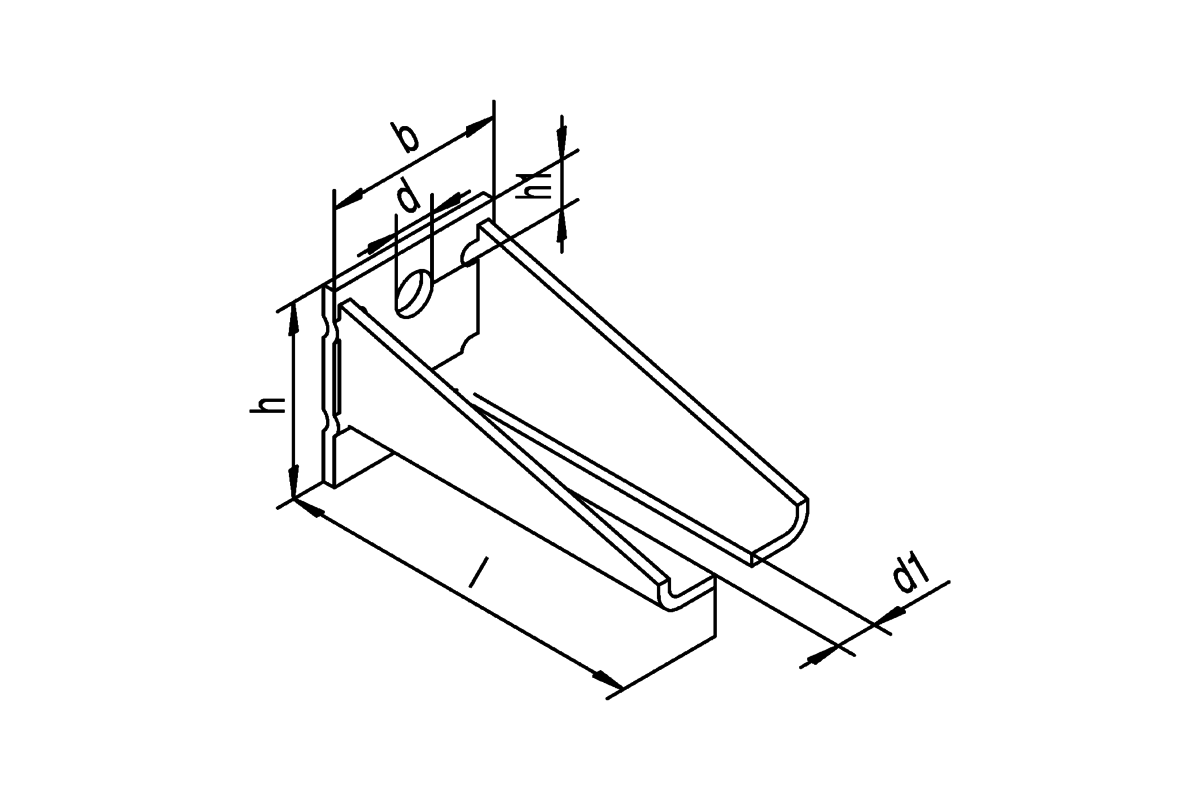

Dimensions (in mm)
| Article Art. no. | HELM 404 WD HELM 0404.. | HELM 604 WD HELM 0604.. | HELM 704 WD HELM 0704.. |
| Profile | HELM 300 HELM 400 | HELM 500 HELM 600 | HELM 700 |
| b | 75 | 120 | 120 |
| d | Ø 17 | Ø 18 | Ø 18 |
| d1 | 17 | 21 | 32 |
| h | 80 | 110 | 110 |
| h1 | 20 | 25 | 25 |
| l | 155 | 212 | 212 |
