HELM -04 W
Wall bracket
- angle bracket fixing with lateral adjustment option
- compatible with height-adjustable HELM -04 coupling
Material
steel or stainless steel

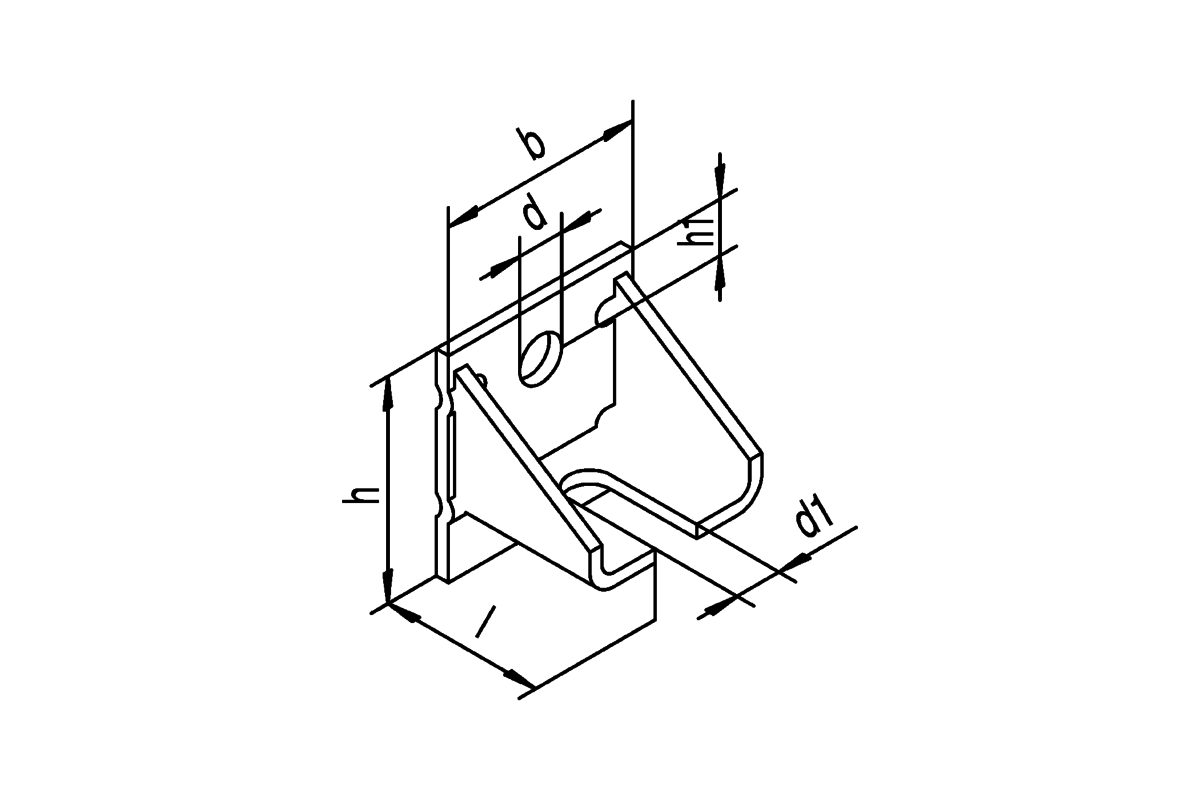

Dimensions (in mm)
| Article Art. no. | HELM 404 W HELM 0404.. | HELM 604 W HELM 0604.. |
| Profile | HELM 300 HELM 400 | HELM 500 HELM 600 |
| b | 75 | 120 |
| d | Ø 17 | Ø 18 |
| d1 | 17 | 21 |
| h | 80 | 110 |
| h1 | 20 | 25 |
| l | 65 | 102 |
