HELM MK-L 80 H 166
Sliding door system for leaves up to 80 kg, wall pocket installation with MK-L SmartTip and WTR installation track, reversible
- for interior sliding doors made of timber
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- MK-L SmartTip: door ejector with bi-directional soft-close mechanism ensures smooth opening and closing, installed in the track
- WTR installation track: enables disassembly/assembly of the track at any time for maintenance, replacement and addition of components
- note: WTR installation track is 25 mm longer than track(s)
Leaf weight
max. 80 kg
Leaf thickness
40 mm
Leaf width
min. 830 mm

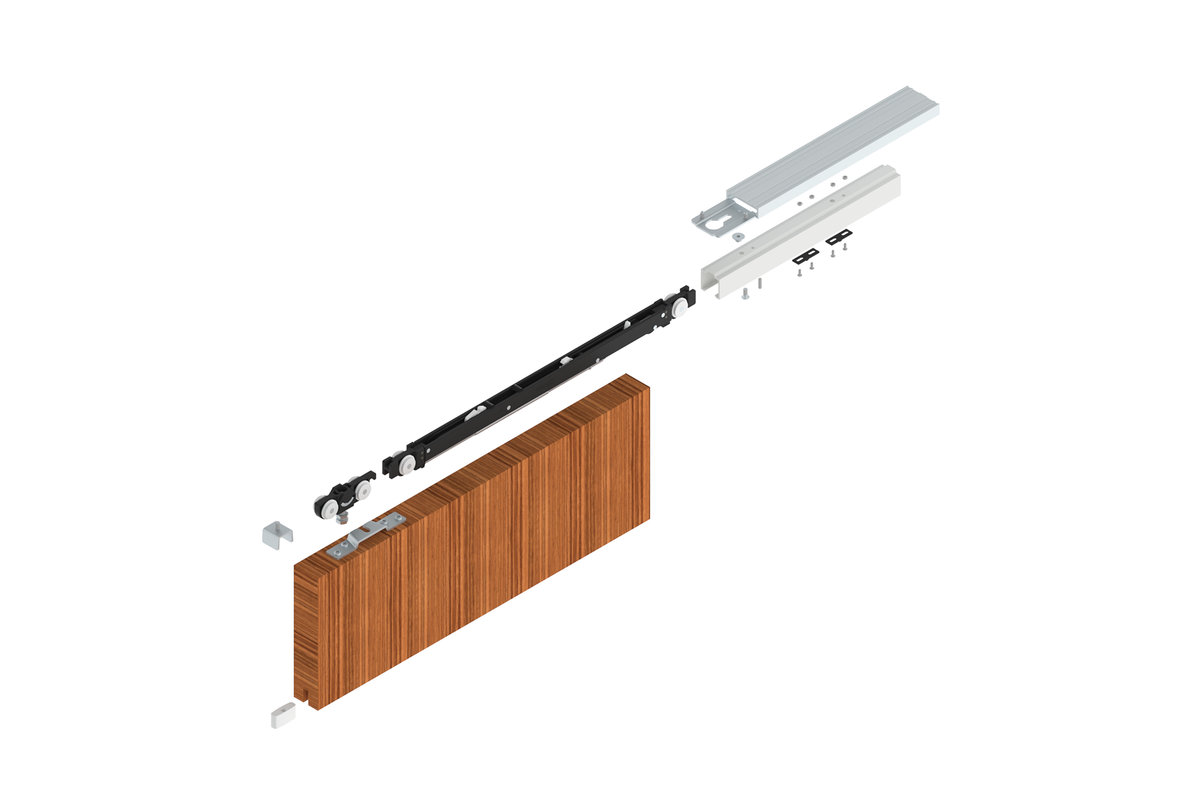

Set contents
| Quantity 1 leaf | 2 leaves | Article |
| 1 pc. | 2 pc. | HELM 53/73 track for MK-L SmartTip, perforated on top |
| 1 pc. | 1 pc. | HELM WTR installation track |
| * pc. | * pc. | HELM WTR fixing plate with mounting material |
| 2 pc. | 4 pc. | HELM 73 trolley with ball bearing, M8 x 35 support screw and flange |
| 1 pc. | 2 pc. | HELM MK-L SmartTip with release triggers |
| 2 pc. | 4 pc. | HELM 65 PS end stop |
| 1 pc. | 2 pc. | HELM 70 bottom guide (mounting material included) |
*quantity depends on track length
