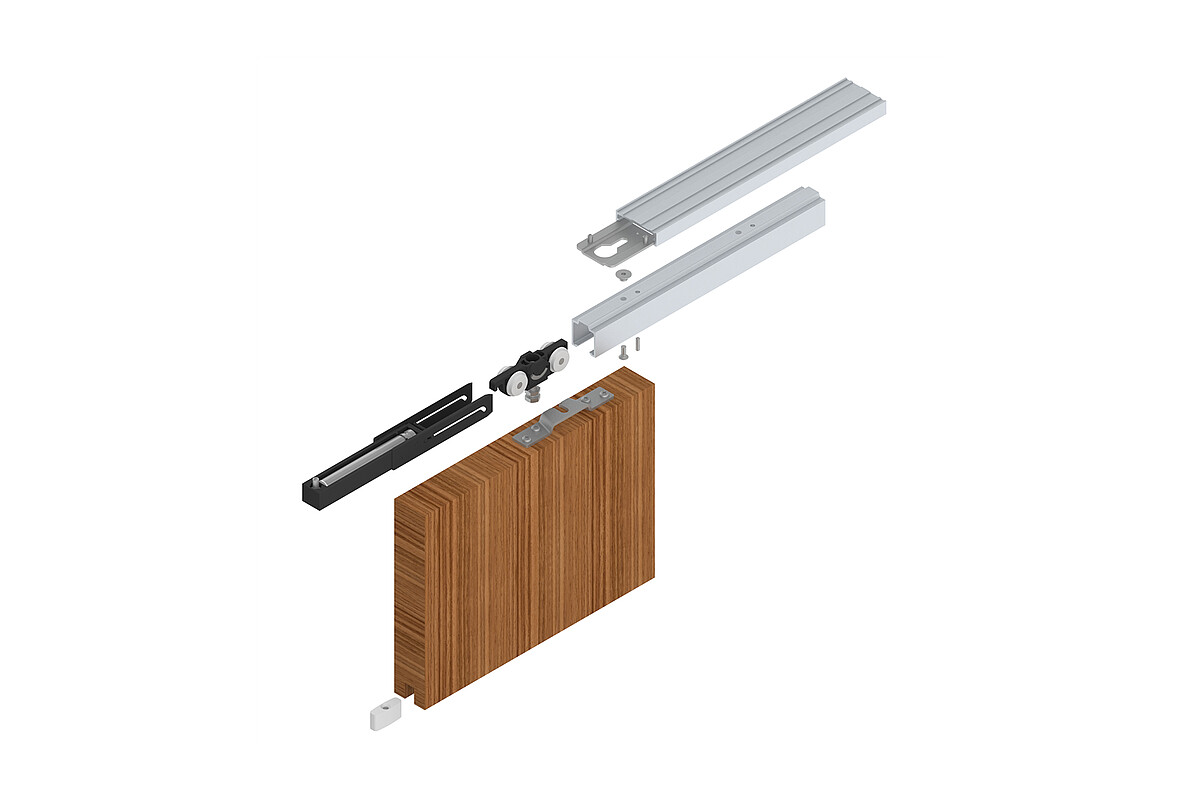

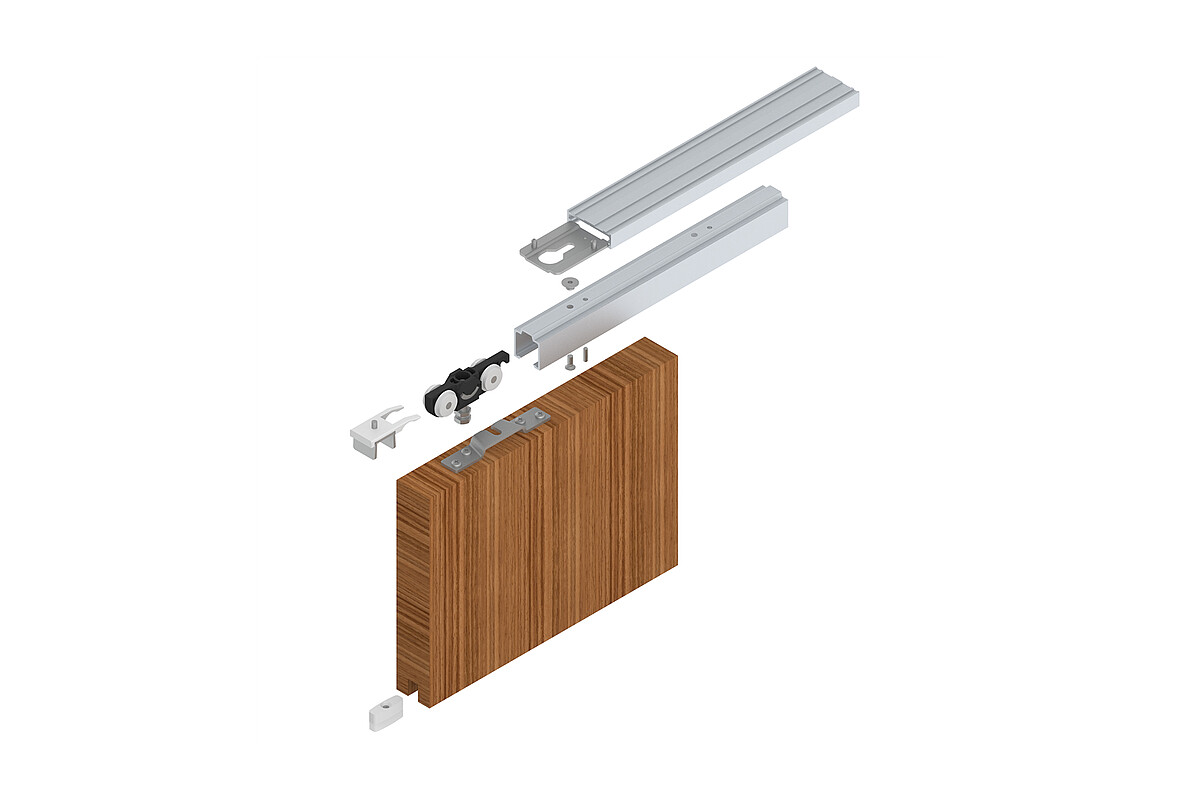

HELM MK-L 80 H 129
Sliding door system for leaves up to 80 kg, wall pocket installation with WTR installation track, reversible
- for interior sliding doors made of timber
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- WTR installation track: enables disassembly/assembly of the track at any time for maintenance, replacement and addition of components
- tested according to DIN EN 1527:2022 (200.000 cycles)
- note: WTR installation track is 25 mm longer than track(s)
Leaf weight
max. 80 kg
Leaf thickness
from 20 mm
Leaf width
min. 750 mm (with damper and soft closing device on one side)
min. 900 mm (with damper and soft closing device on both sides)
Set contents
| Quantity 1 leaf | 2 leaves | Article |
| 1 pc. | 2 pc. | HELM 53/73 track, perforated on top |
| 1 pc. | 1 pc. | HELM WTR installation track |
| * pc. | * pc. | HELM WTR fixing plate with mounting material |
| 2 pc. | 4 pc. | HELM 73 trolley with ball bearing, M8 x 35 support screw and flange |
| 2 pc. | 4 pc. | HELM 65 P door catcher (when selecting "without damper and soft closing device") or HELM SmartStop FG 80 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| 1 pc. | 2 pc. | HELM 70 bottom guide (mounting material included) |
*quantity depends on track length
