HELM MK-L 80 H 119

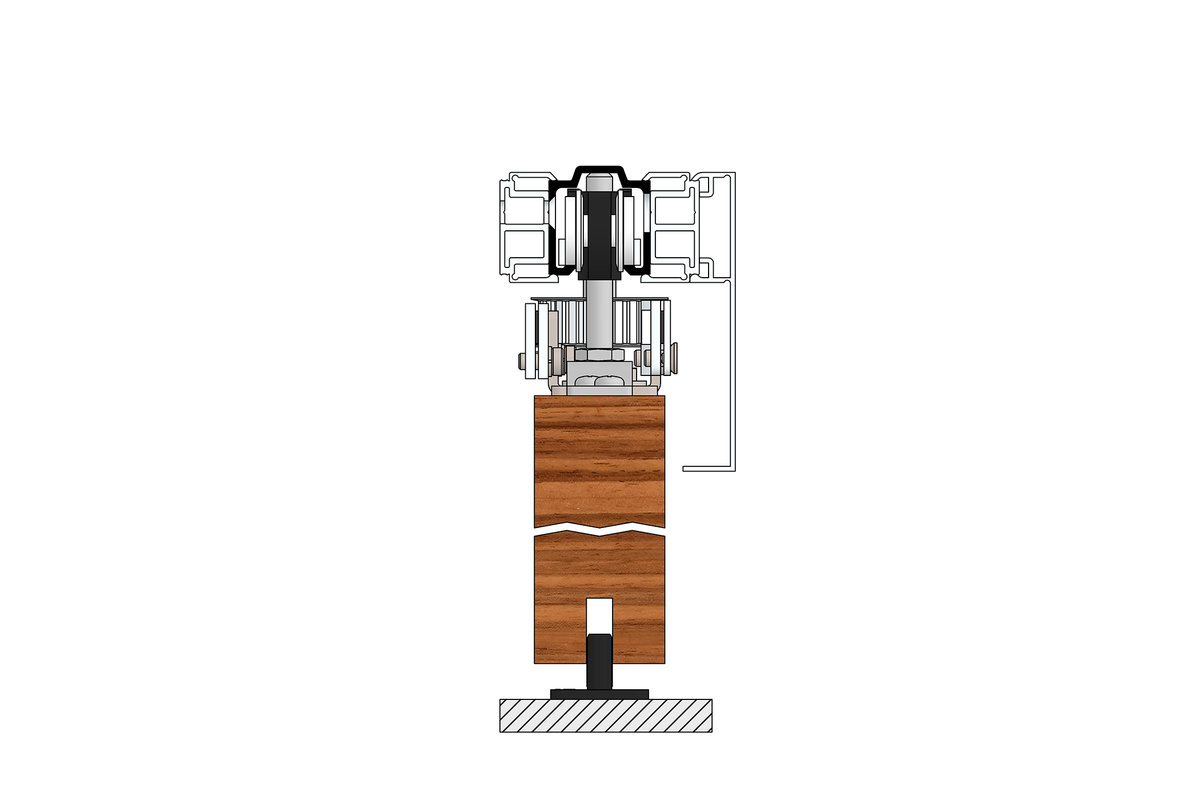

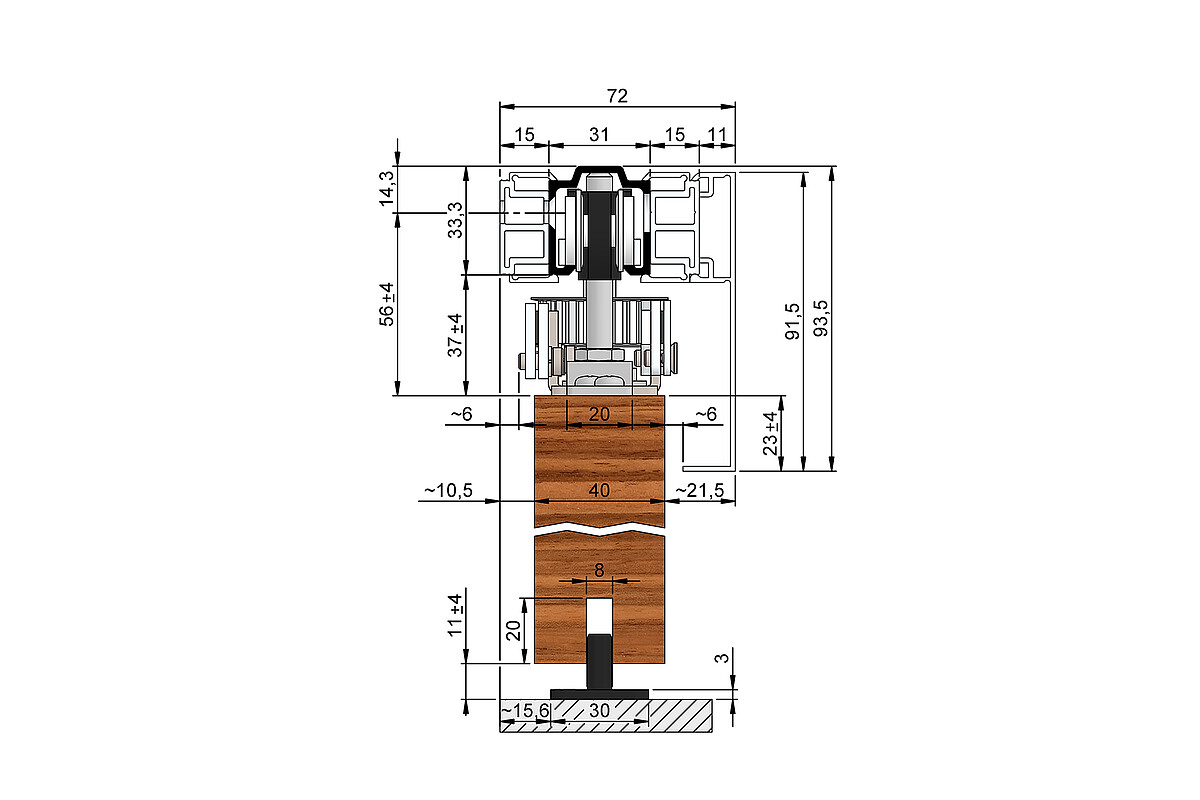

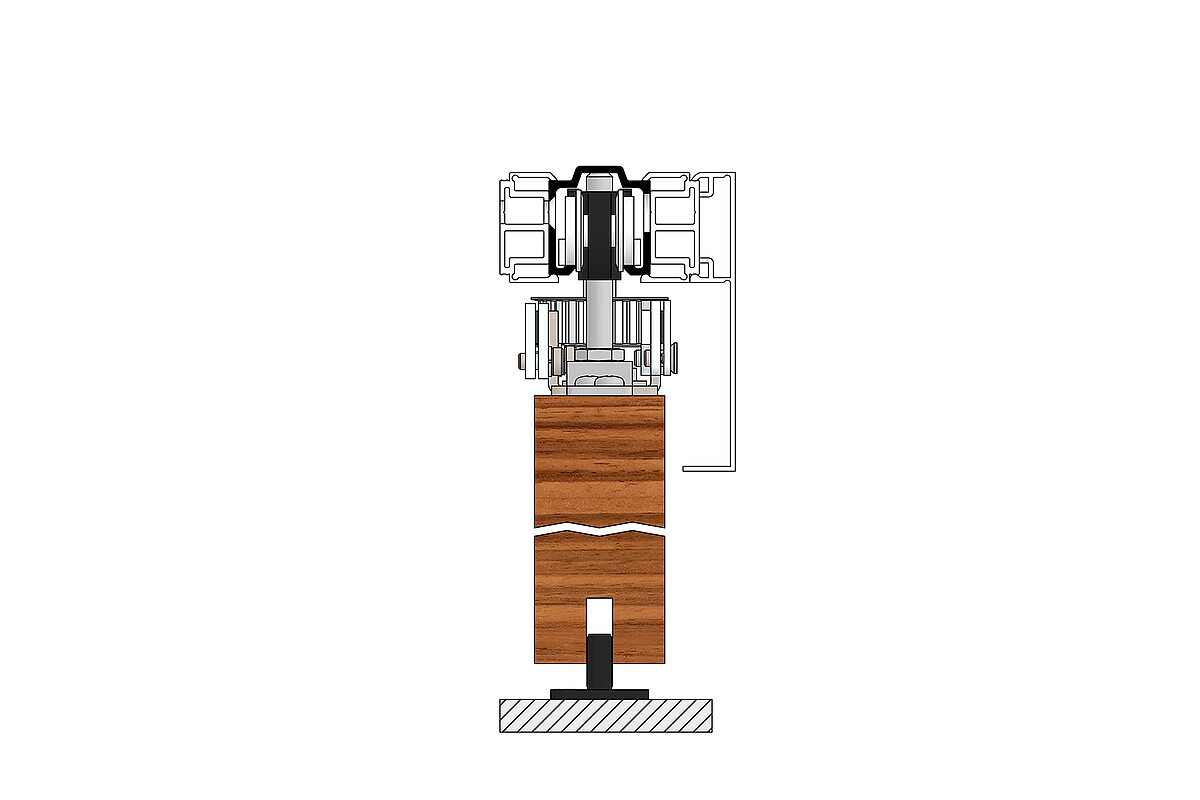

Sliding door system for double leaf synchronised systems up to 80 kg/leaf, wall installation with 15 mm spacer profile and pelmet
- for synchronously sliding interior doors made of timber: By linking the leaves with a toothed belt, the movement of one leaf triggers a symmetrical movement of the second leaf
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- SmartGuide: clearance-free bottom guide to reduce or avoid rattling noises, suitable for 8 mm groove
- tested according to DIN EN 1527:2013 (200.000 cycles)
Leaf weight
max. 80 kg
Leaf thickness
from 20 mm
Leaf width
min. 650 mm (with damper and soft closing device on one side)
min. 860 mm (with damper and soft closing device on both sides)

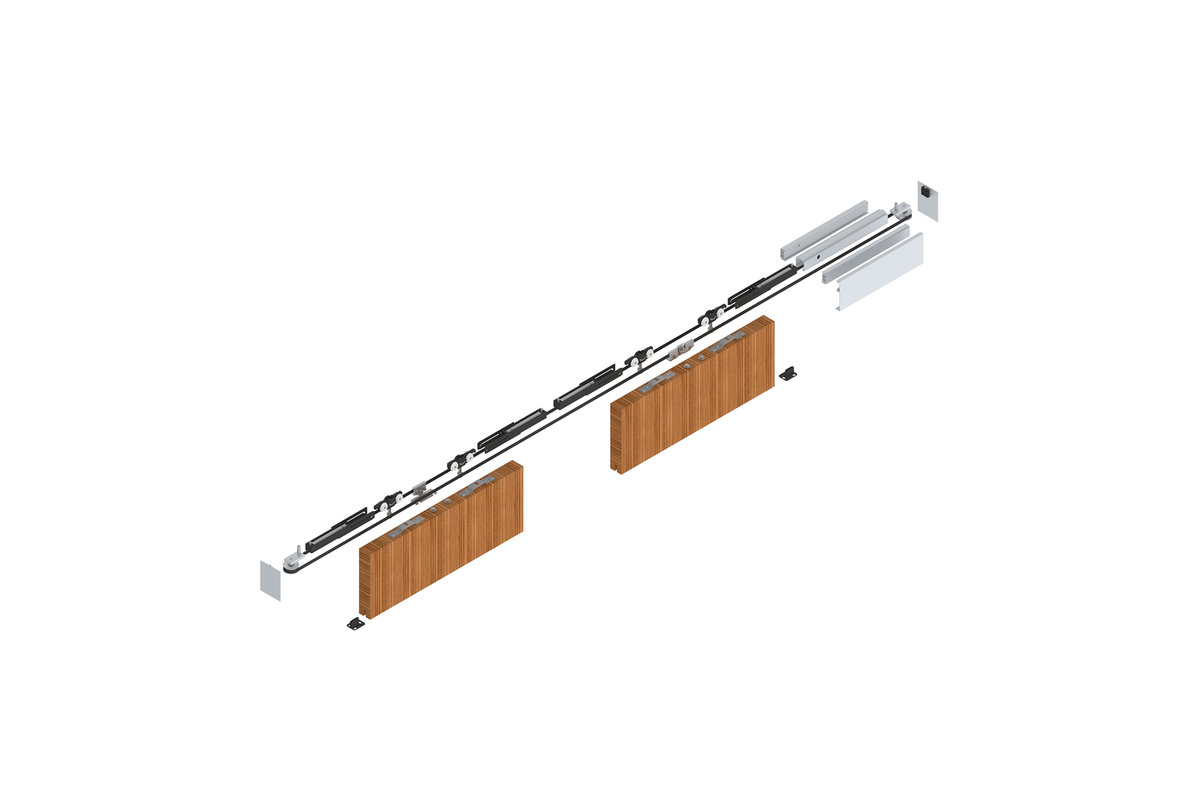

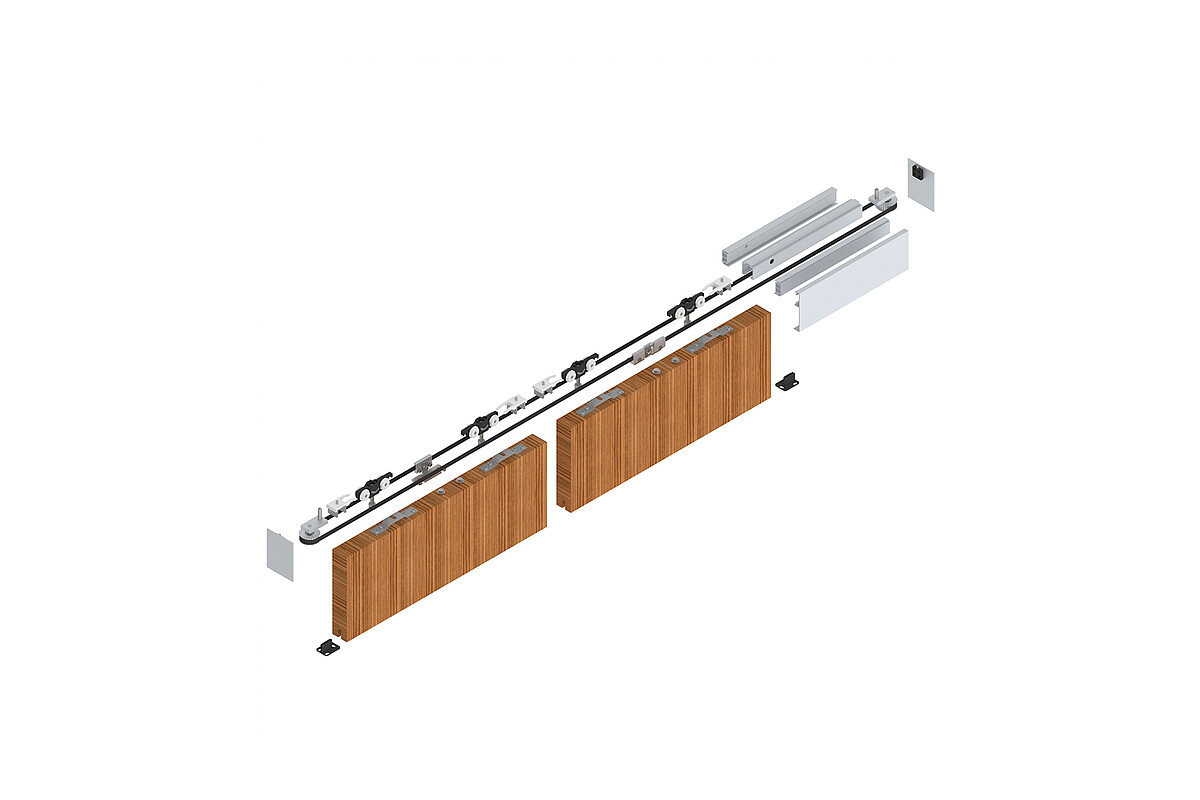

Set contents
| Quantity | Article |
| 1 pc. | HELM 53/73 track, drilled on the side |
| 1 pc. | HELM spacer profile, 15 mm, drilled |
| 1 pc. | HELM clip-on pelmet, 91,5 mm, with spacer profile, 15 mm |
| 1 pc. | HELM end cap set |
| 4 pc. | HELM 73 trolley with ball bearing, M8 x 50 support screw and flange |
| 2 pc. | HELM deflection roller |
| 1 pc. | HELM toothed belt connector timber |
| 1 pc. | HELM toothed belt driver timber |
| 1 pc. | HELM toothed belt |
| 4 pc. | HELM 65 P door catcher (when selecting "without damper and soft closing device") or HELM SmartStop FG 80 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| 2 pc. | HELM SmartGuide H 212 S |
