HELM MK-L 80 G 154

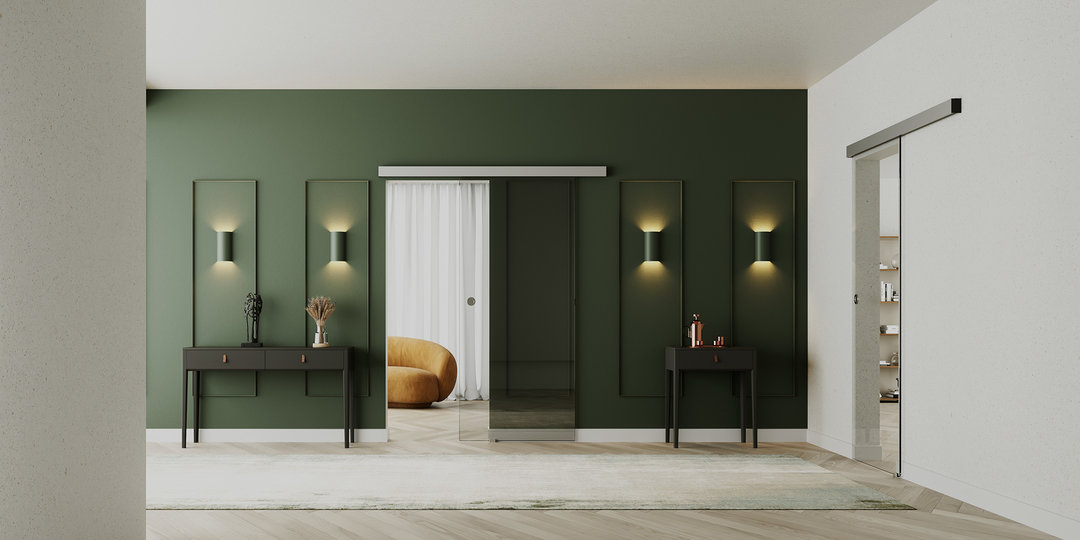

Sliding door system for leaves up to 80 kg, 8/8,76 and 10/10,76 mm TSG/LSG, wall installation with 9 mm spacer profile and pelmet
- for interior sliding doors made of tempered safety glass (TSG) and laminated safety glass (LSG)
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- SmartGuide: self-adjusting, clearance-free bottom guide to reduce or avoid rattling noises
- tested according to DIN EN 1527:2013 (200.000 cycles)
Leaf weight
max. 80 kg
Leaf thickness
8/8,76 and 10/10,76 mm TSG/LSG**
Leaf width
min. 650 mm (with damper and soft closing device on one side)
min. 860 mm (with damper and soft closing device on both sides)
Set contents
| Quantity 1 leaf | 2 leaves | Article |
| 1 pc. | 1 pc. | HELM 53/73 track, drilled on the side |
| 1 pc. | 1 pc. | HELM spacer profile, 9 mm, drilled |
| 1 pc. | 1 pc. | HELM clip-on pelmet, 75 mm |
| 1 pc. | 1 pc. | HELM brush seal |
| 1 pc. | 1 pc. | HELM end cap set |
| 2 pc. | 4 pc. | HELM 73 trolley with ball bearing and M8 x 30 support screw |
| 2 pc. | 4 pc. | HELM glass clamp, 250 x 22 mm, for 8/8,76 and 10/10,76 mm TSG/LSG** |
| 2 pc. | 4 pc. | HELM 65 P door catcher (when selecting "without damper and soft closing device") or HELM SmartStop FG 80 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| 1 pc. | 2 pc. | HELM SmartGuide G |
*clip-on pelmet and end caps black matte coated, track and spacer profile silver anodised
**when using LSG the glass clamp must be glued on with two-component adhesive (not included in the set)
