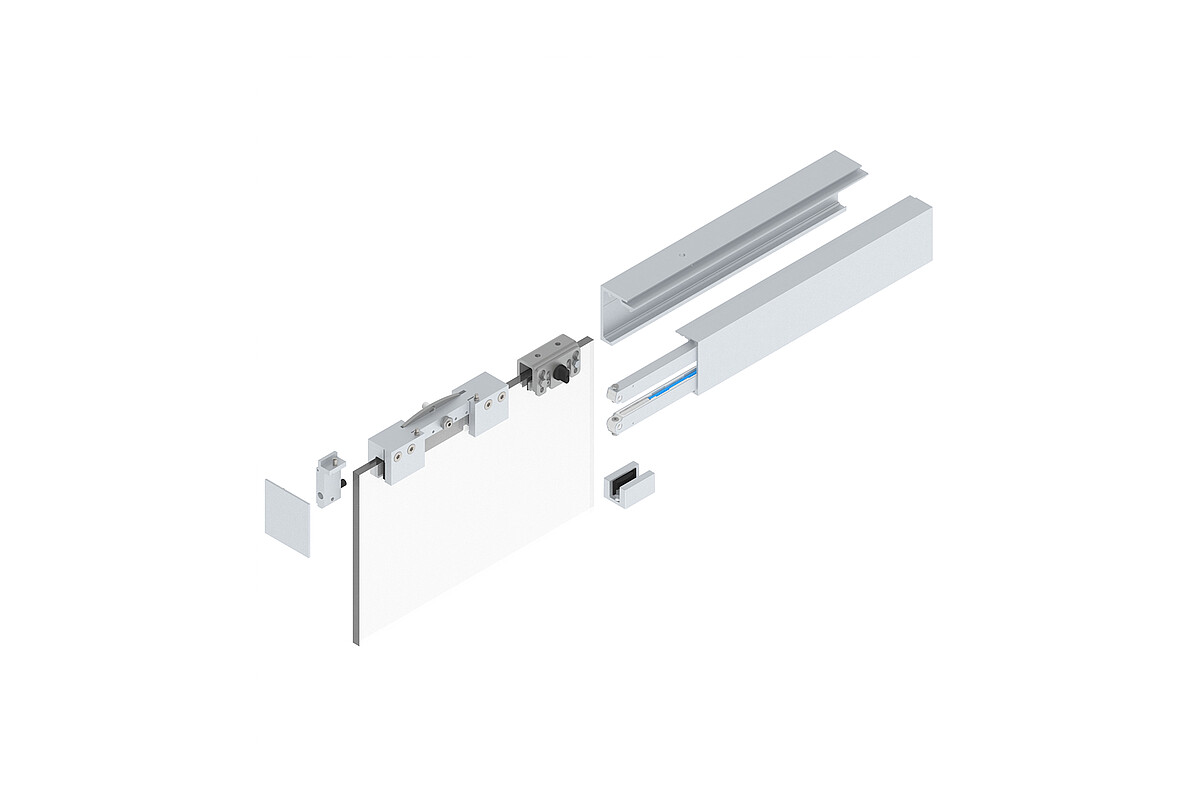

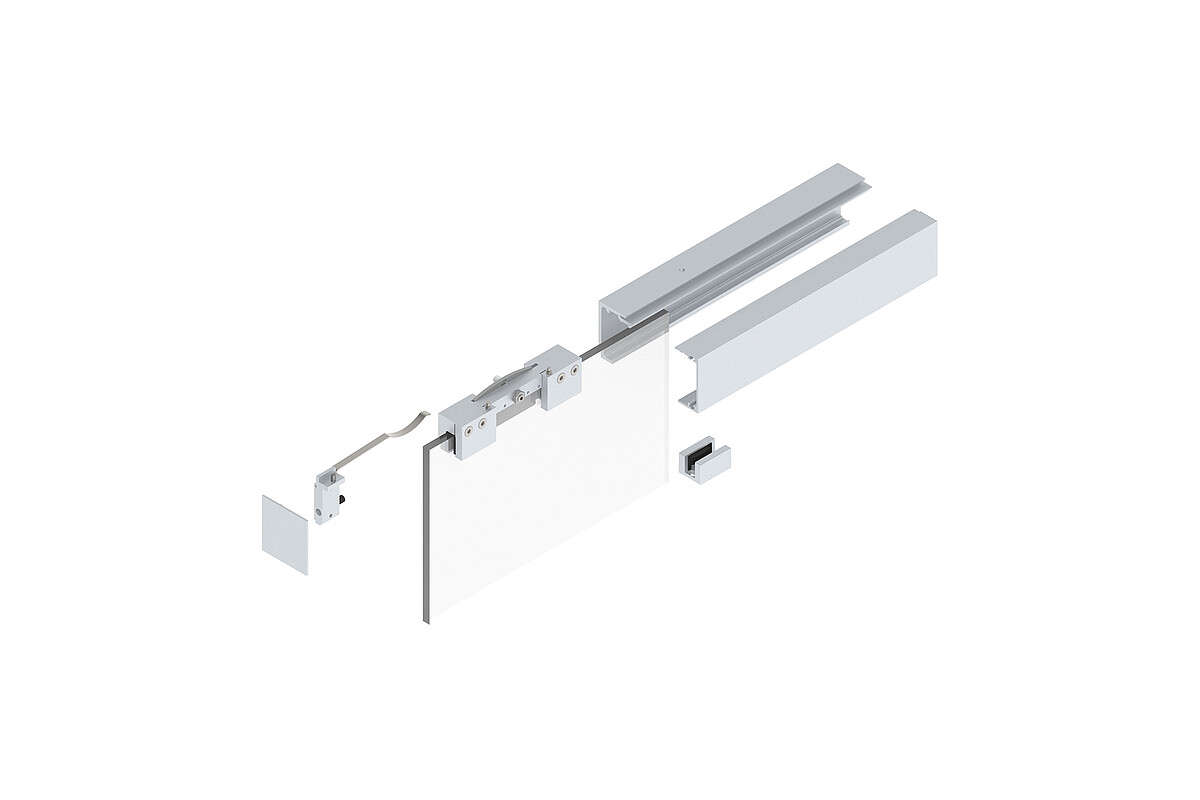

HELM GT-S 150 G 413
Sliding door system for leaves up to 150 kg, 8/8,76, 10/10,76 and 12/12,76 mm TSG/LSG, ceiling installation
- for interior sliding doors made of tempered safety glass (TSG) and laminated safety glass (LSG)
- trolleys: height adjustable even after installation, with load-bearing rocker for a long service life
- SmartGuide: self-adjusting, clearance-free bottom guide to reduce or avoid rattling noises
- tested according to DIN EN 1527:2013 (200.000 cycles)
Leaf weight
max. 150 kg
Leaf thickness
8/8,76, 10/10,76 and 12/12,76 mm TSG/LSG
Leaf width
min. 510 mm (with damper and soft closing device on one side)
min. 700 mm (with damper and soft closing device on both sides)
Set contents
Quantity 1 leaf | 2 leaves | Article |
1 pc. | 1 pc. | HELM GT-S 150 track for ceiling installation |
1 pc. | 1 pc. | HELM GT-S 150 pelmet |
1 pc. | 1 pc. | HELM GT-S 150 end cap set |
2 pc. | 4 pc. | HELM GT-S 150 trolley |
2 pc. or 4 pc. 2 pc. | 4 pc. or 8 pc. 4 pc. | HELM GT-S 150 door catcher left/right (when selecting "without damper and soft closing device") or HELM GT-S 150 damper and soft closing device with release bolt (fixing bracket included), HELM GT-S 150 end stop left/right (when selecting "damper and soft closing device on both sides") |
1 pc. | 2 pc. | HELM SmartGuide G |
