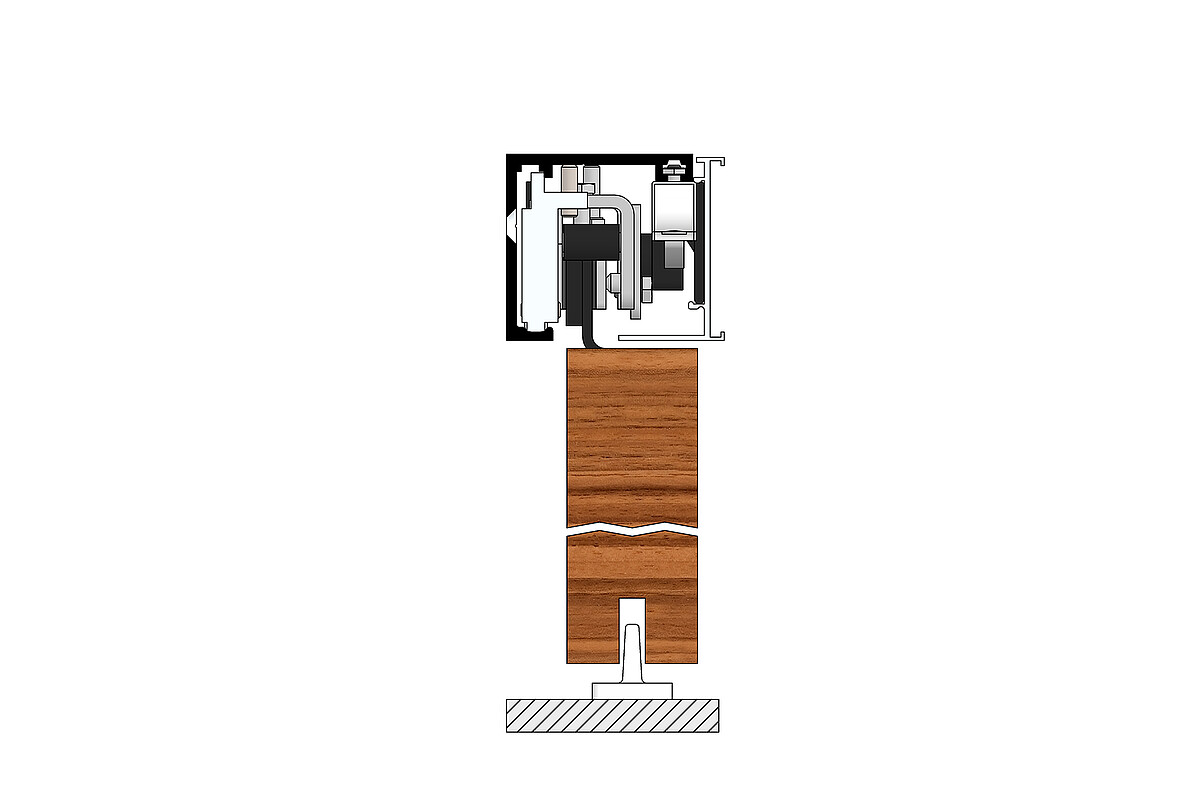

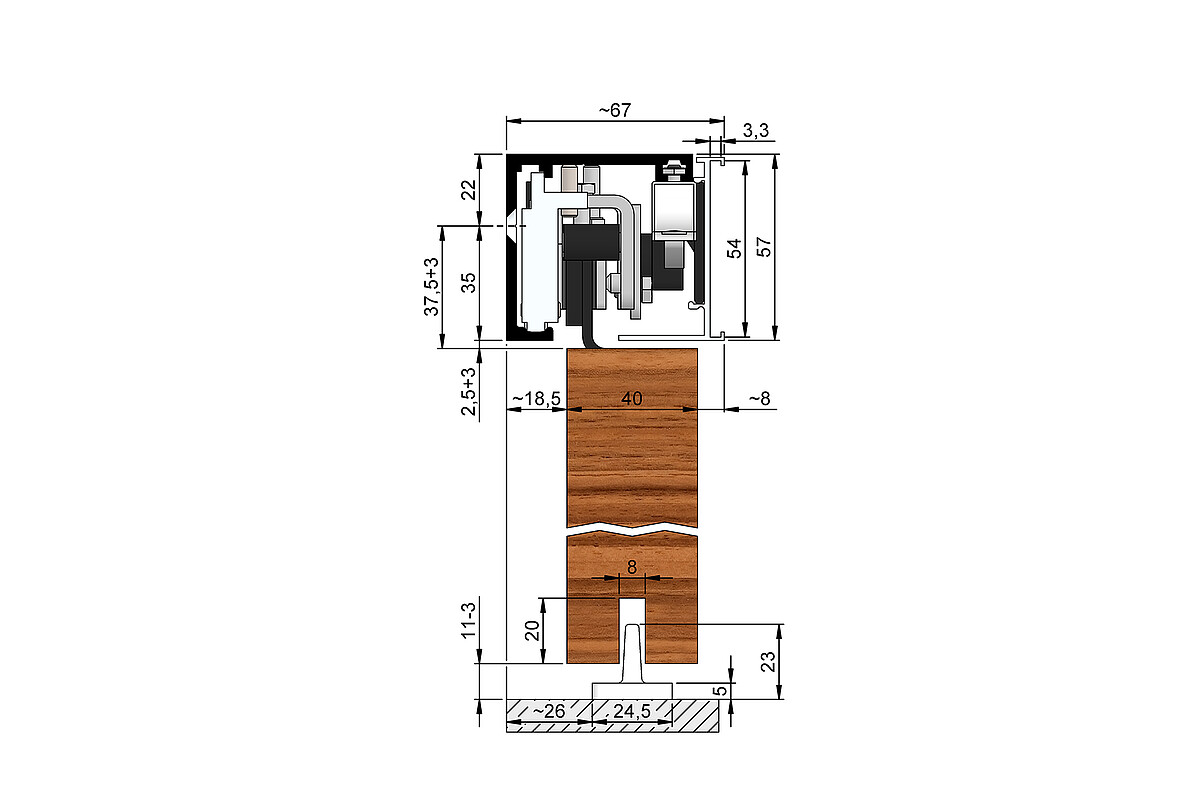

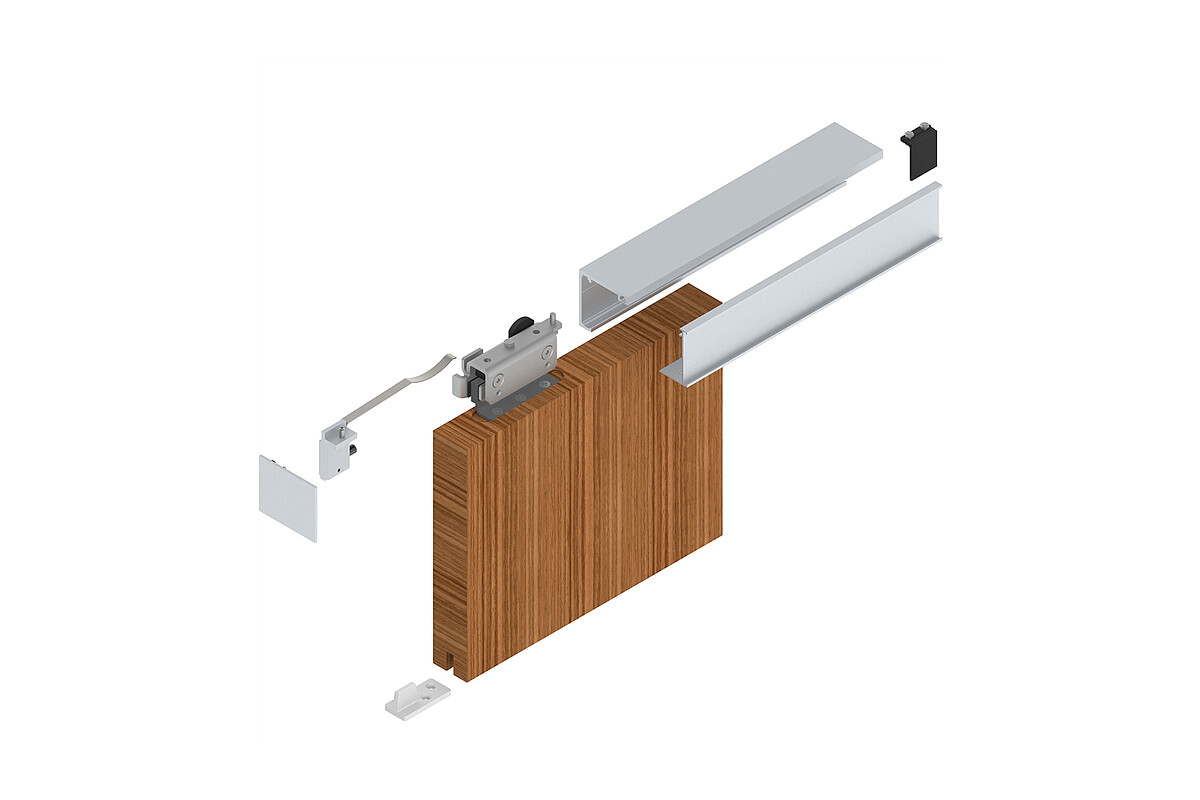

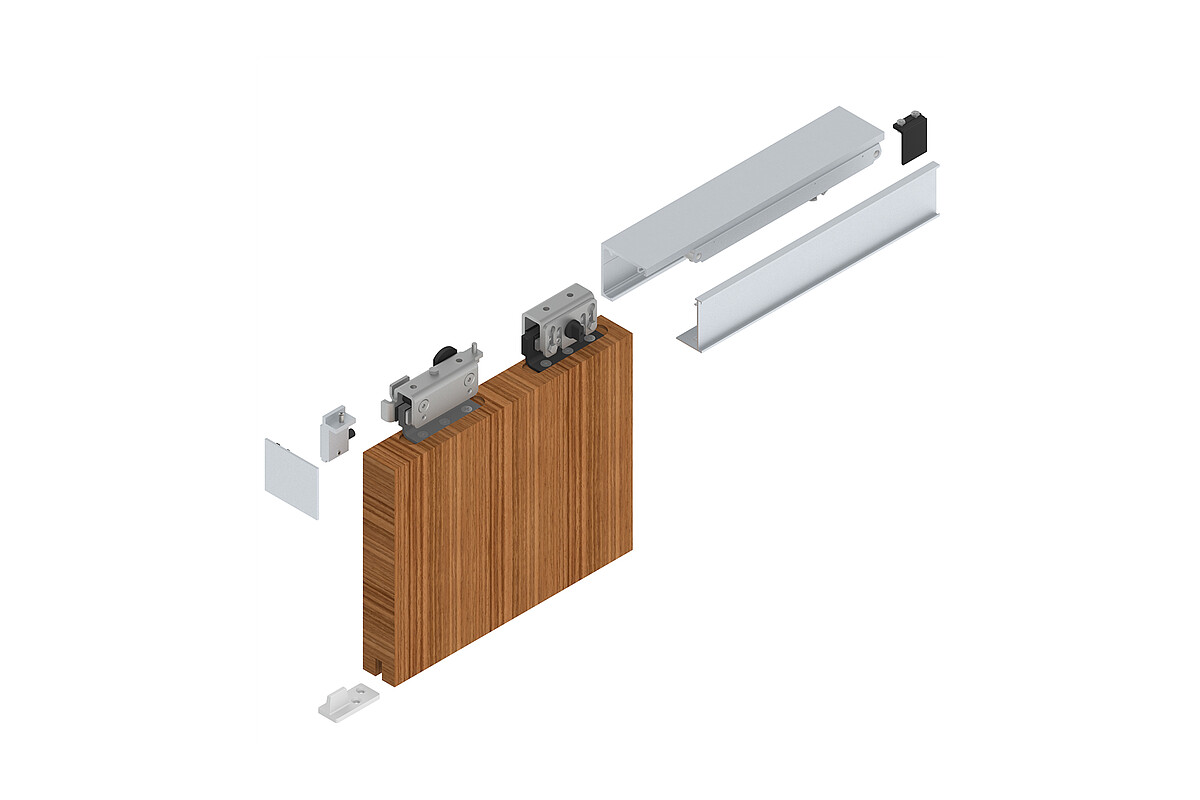

HELM GT-L 50 H 417
Sliding door system for leaves up to 50 kg, wall installation with pelmet for decor inlay
- for interior sliding doors made of timber
- trolleys: height adjustable even after installation, with load-bearing rocker for a long service life
Leaf weight
max. 50 kg
Leaf thickness
from 30 to 50 mm
Leaf width
mind. 650 mm (with damper and soft closing device on one side)
min. 700 mm (with damper and soft closing device on both sides)
Set contents
| Quantity 1 leaf | 2 leaves | Article |

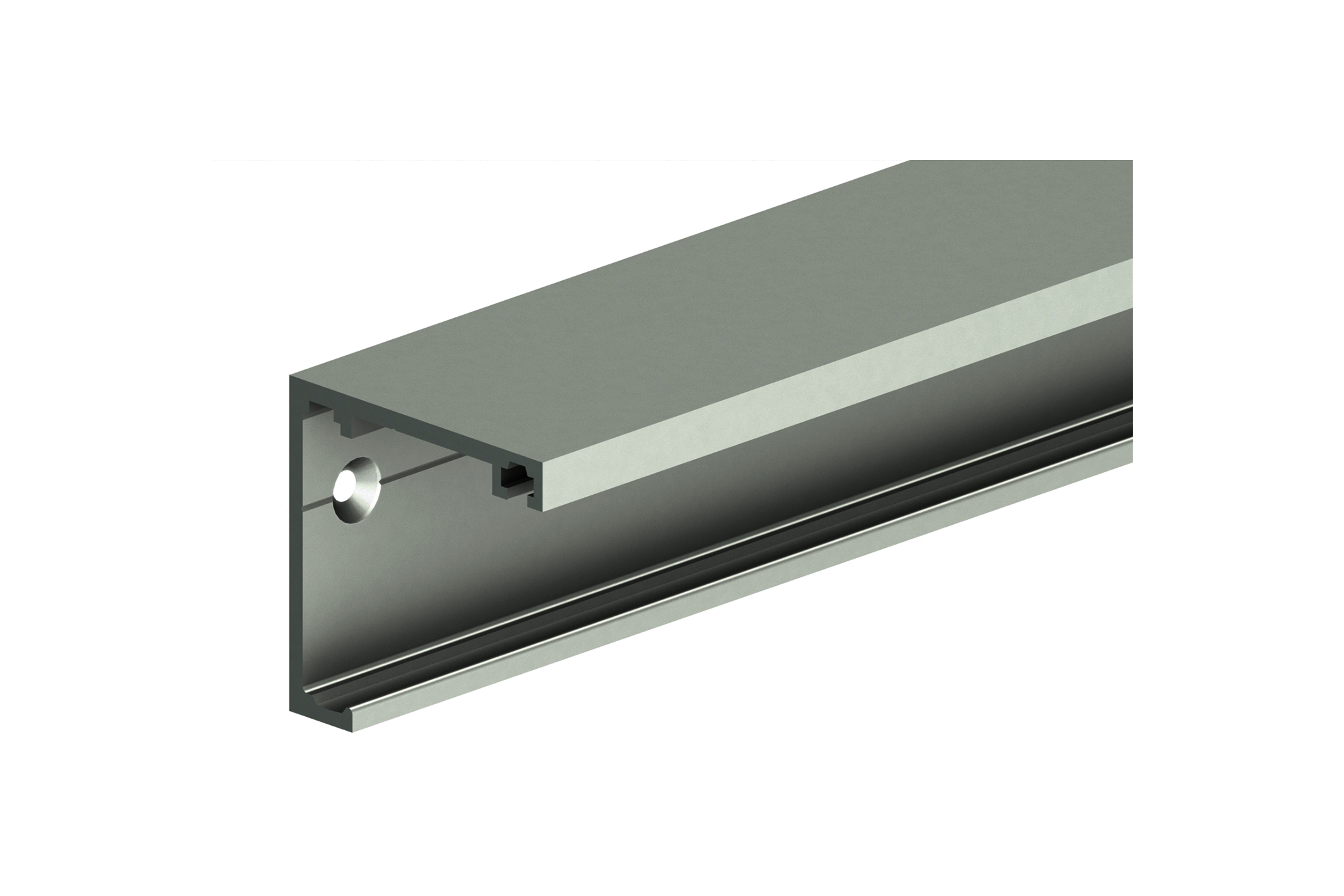

| 1 pc. | 1 pc. | HELM GT-L track for wall installation |

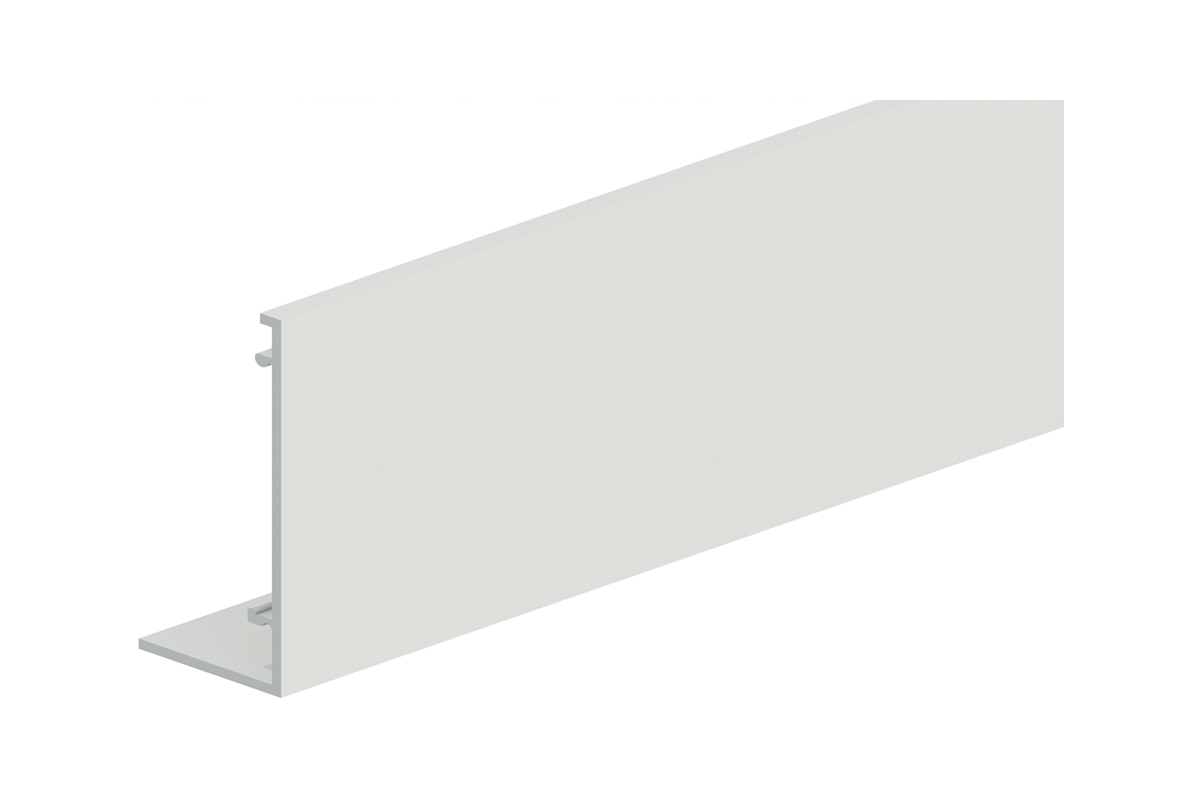

| 1 pc. | 1 pc. | HELM GT-L pelmet for decor inlay |

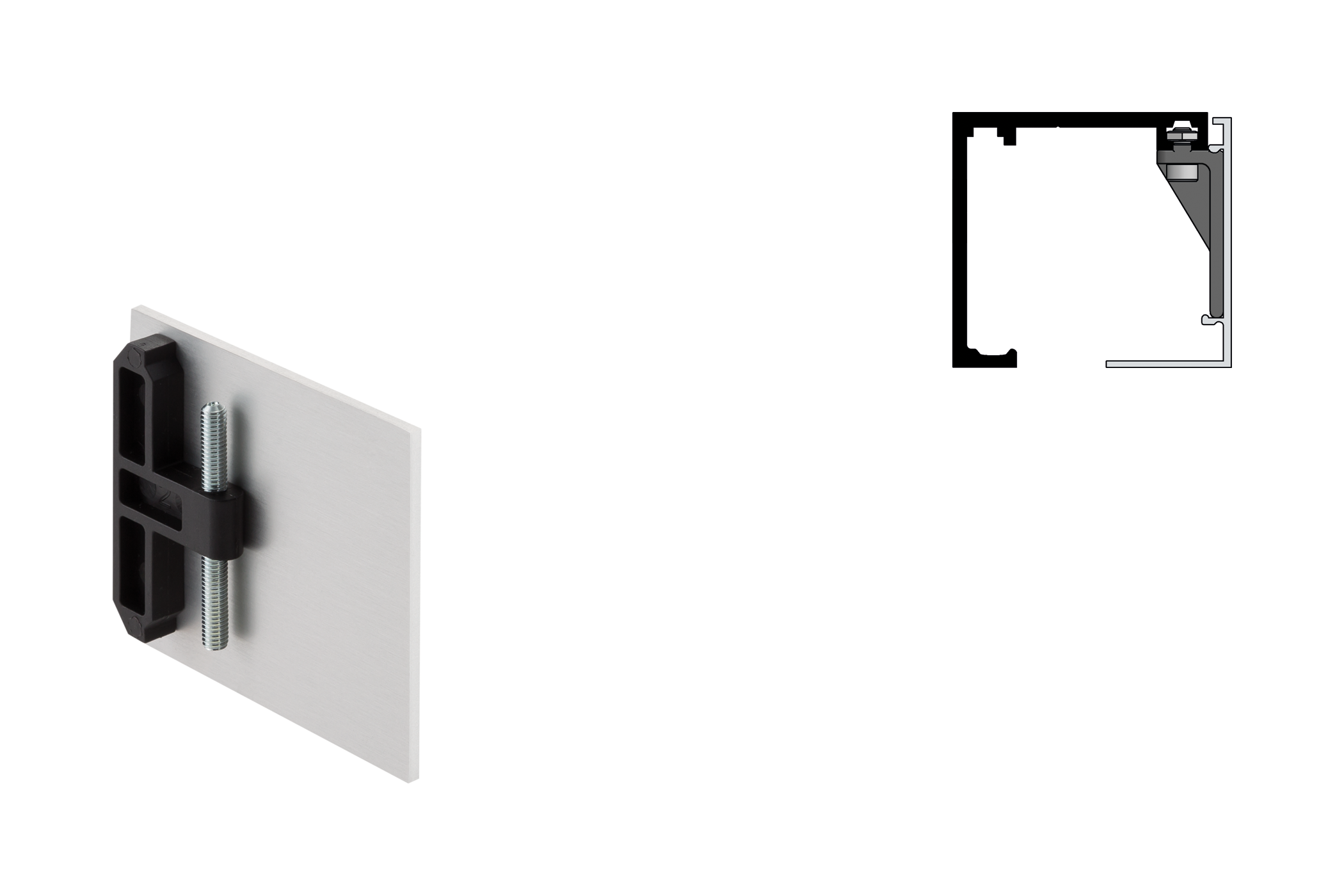

| * pc. | * pc. | HELM GT-L clamping adapter for pelmet |
| 1 pc. | 1 pc. | HELM GT-L end cap set |
| 2 pc. | 4 pc. | HELM GT-L 50 trolley |

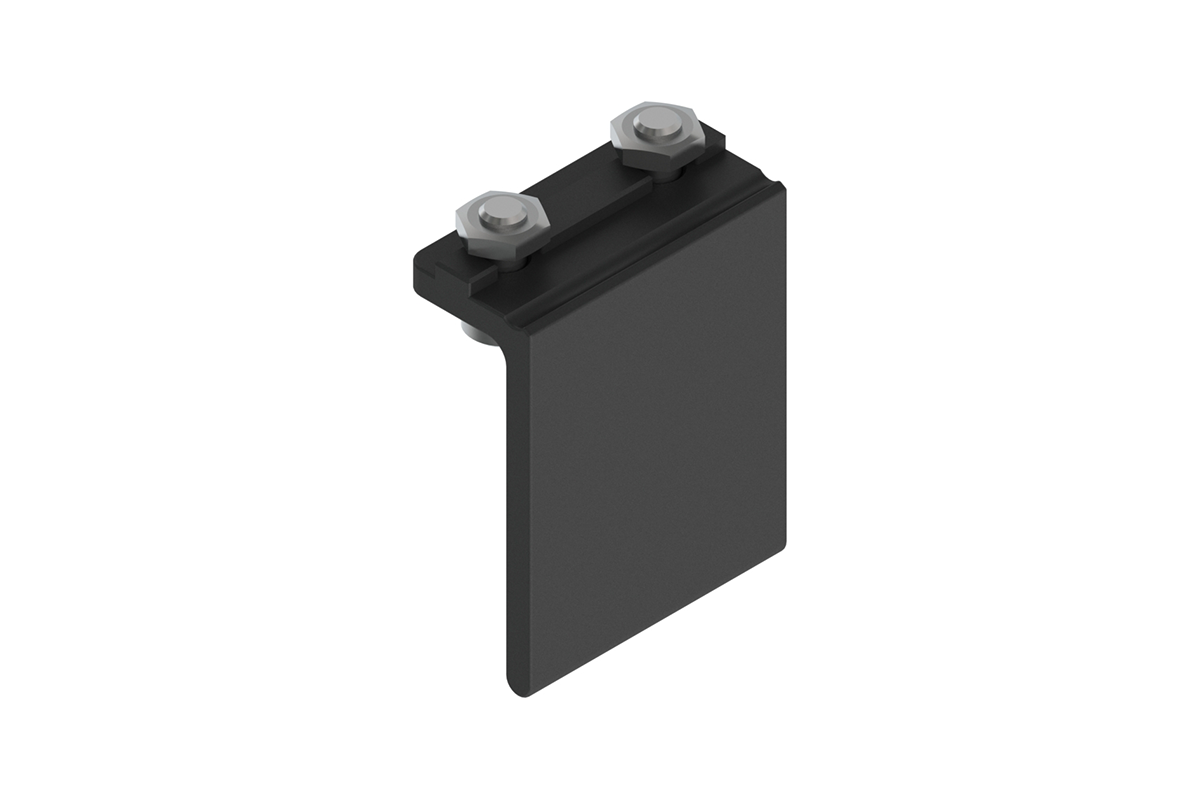

| 2 pc. | 4 pc. | HELM GT-L fixing bracket for trolley |

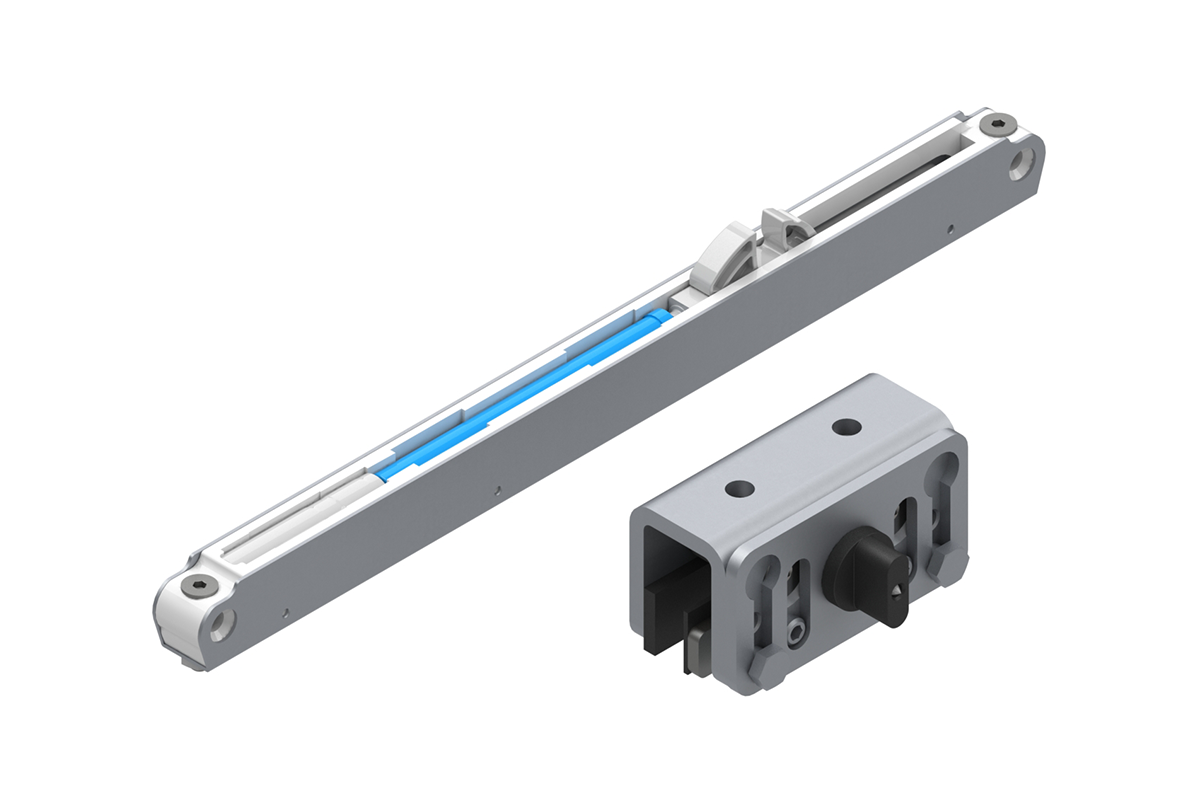

| 2 pc. or 2 pc. each | 4 pc. or 4 pc. each | HELM GT-L door catcher left/right (when selecting "without damper and soft closing device") or HELM GT-L 50 damper and soft closing device with release bolt (fixing bracket included), HELM GT-L end stop left/right (when selecting "damper and soft closing device on both sides") |

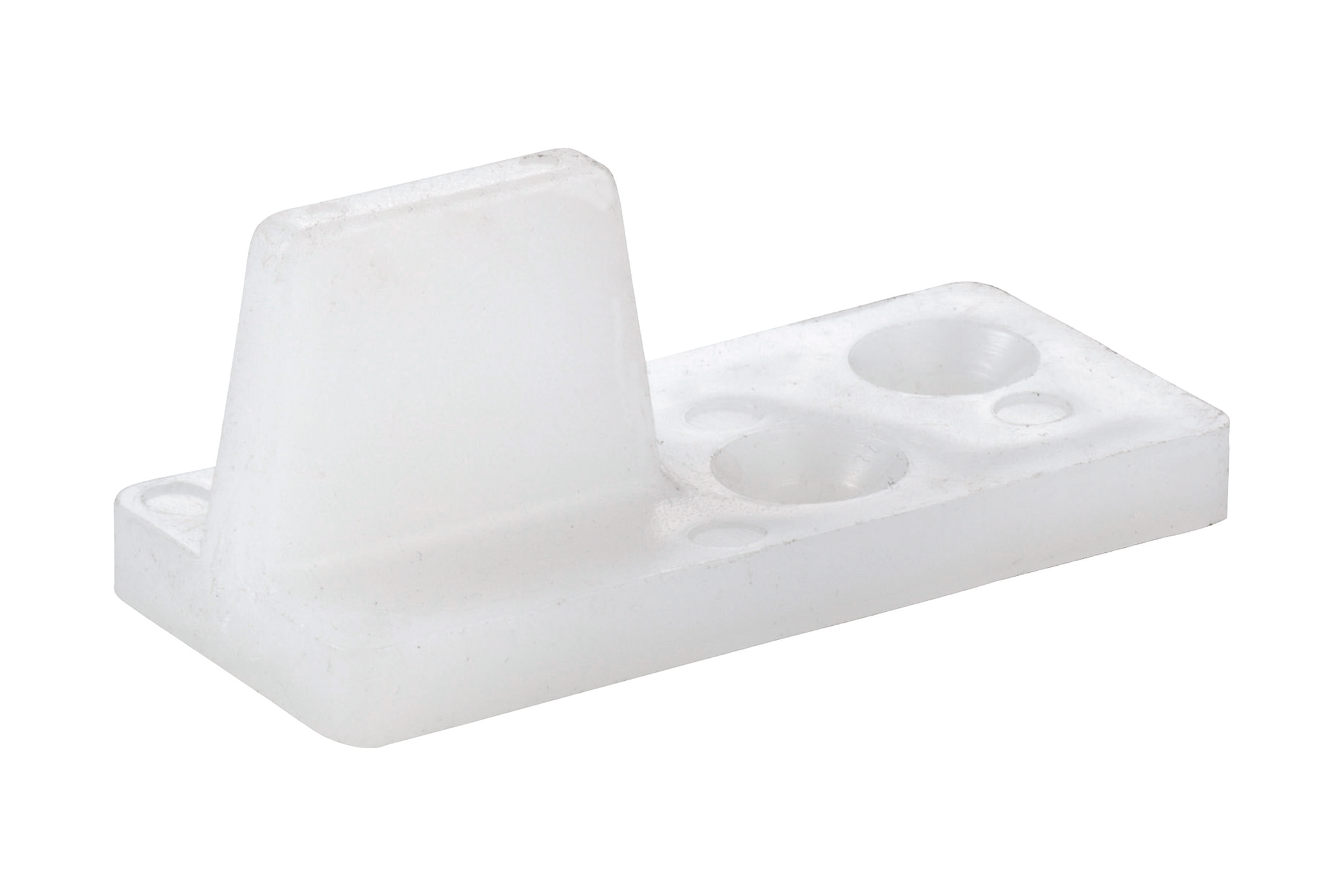

| 1 pc. | 2 pc. | HELM 214 bottom guide |
*quantity depends on track length
