HELM 73 Telescopic set timber
for double leaf telescopic systems up to 80 kg/leaf
- for telescopically sliding interior doors made of timber: The leading leaf pulls the following leaf into the desired position by means of latch and spring carriers
- contains parts for two leaves
- note: overlapping of the leaves of 50 mm is required

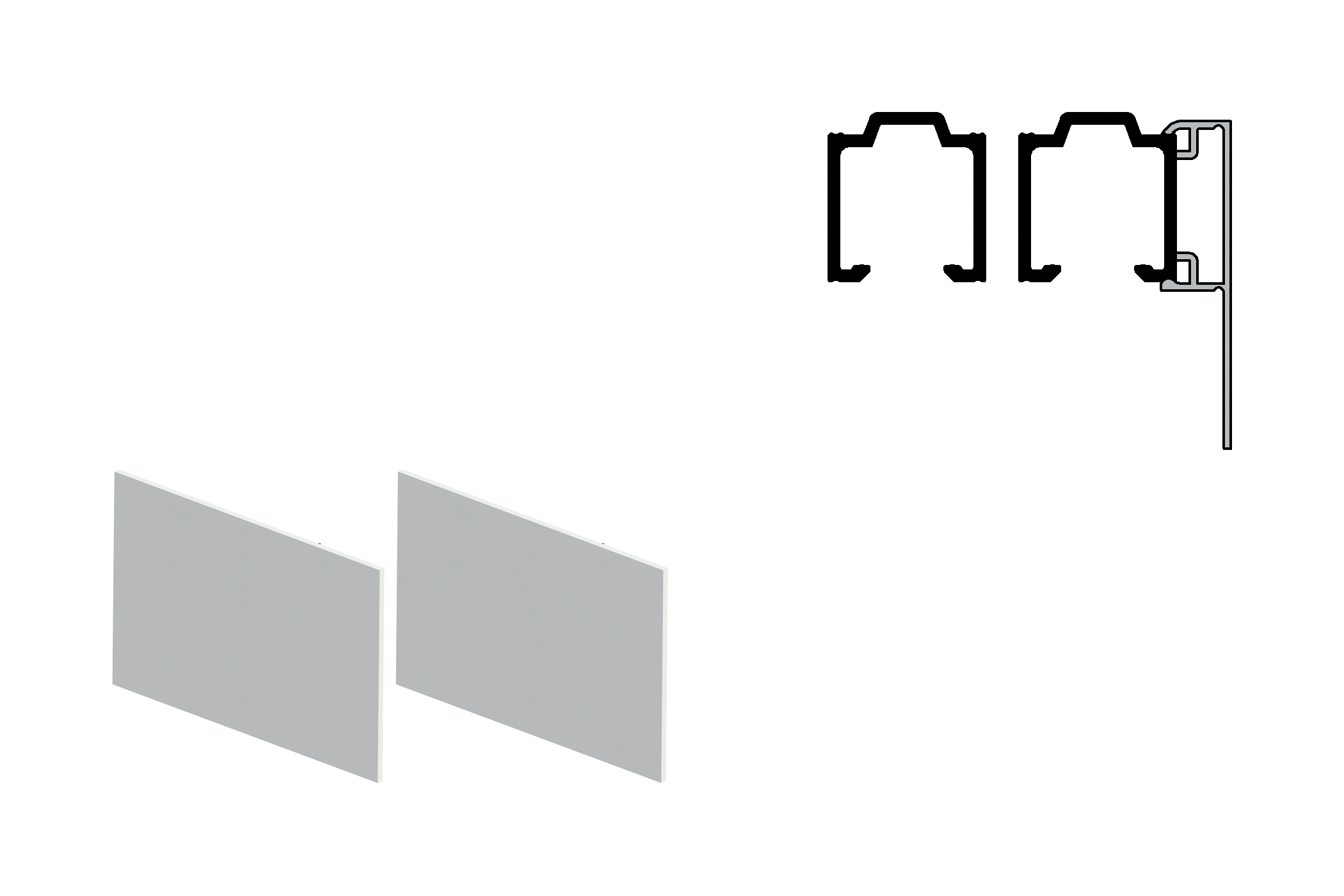

- tracks, clip-on pelmet, end caps and U-tracks available separately
Leaf weight
max. 80 kg
Leaf thickness
from 30 to 40 mm
Set contents
| Quantity | Article |
| 4 pc. | HELM 73 trolley with ball bearing, M8 x 35 support screw and flange |
| 1 pc. | HELM spring carrier left |
| 1 pc. | HELM spring carrier right |
| 1 pc. | HELM latch carrier |
| 4 pc. | HELM 65 P door catcher |
| 1 pc. | HELM SmartGuide H 216 S |
| 1 pc. | HELM SmartGuide H 216 S with angle bracket, 45 mm |
