HELM 86- S / 870 S

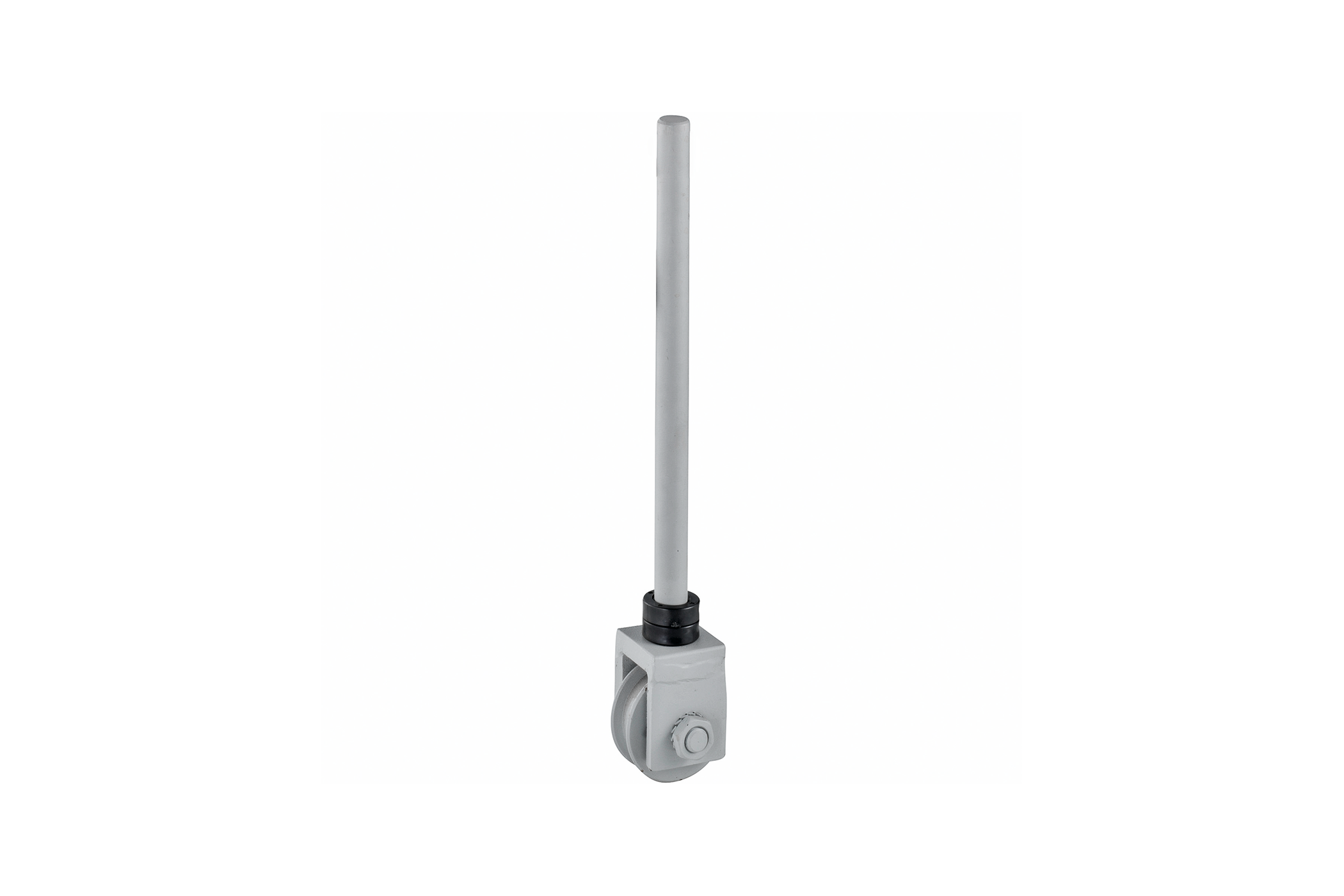

Top guide roller
- for manually operated gates
- with ball bearing (HELM 868 S without ball bearing)
- can be used with HELM 85- S / 860 S steel roller
Material
steel
Side force
max. 140 kg (HELM 868 S / 086811)
max. 310 kg (HELM 869 S / 086911)
max. 440 kg (HELM 870 S / 087011)

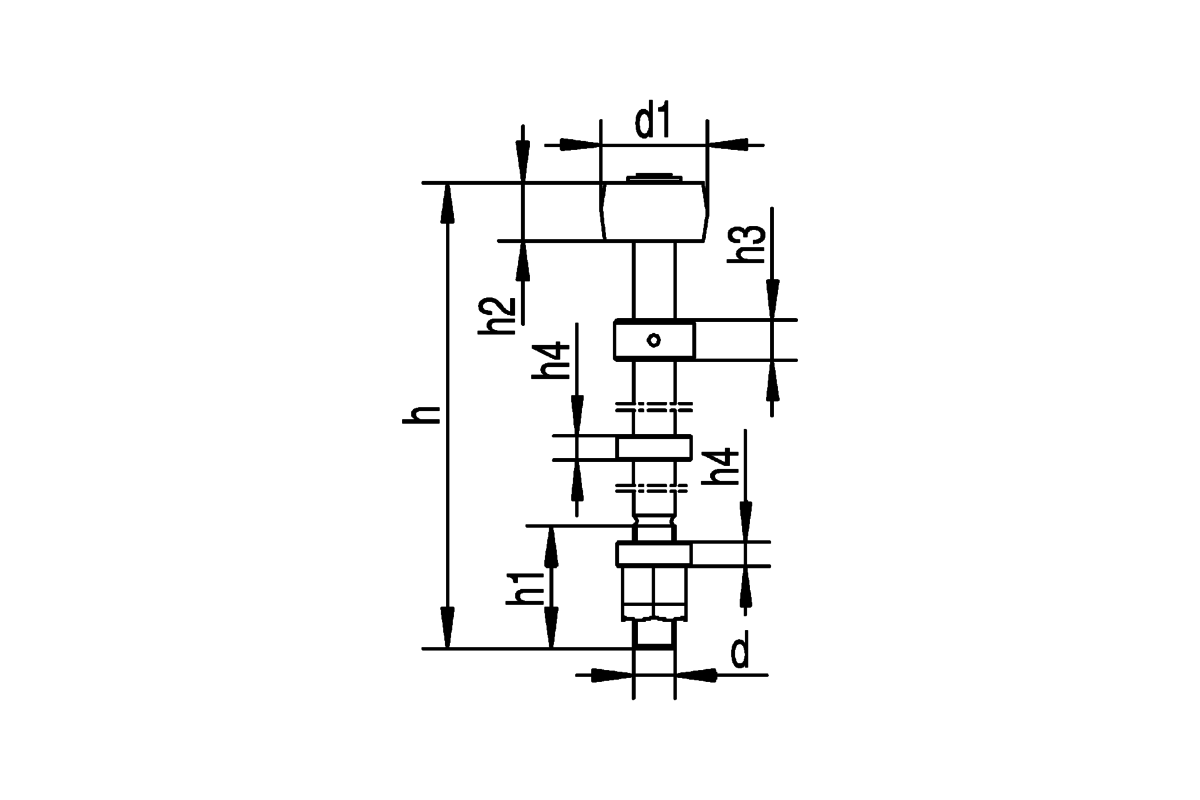

Dimensions (in mm)
| Article Art. no. | HELM 868 S HELM 086811 | HELM 869 S HELM 086911 | HELM 870 S HELM 087011 |
| d | Ø 16 | Ø 22 | Ø 26 |
| d1 | Ø 40 | Ø 68 | Ø 98 |
| h | 321,5 | 381 | 400 |
| h1 | 46 | 50 | 54 |
| h2 | 22 | 25 | 35 |
| h3 | 15 | 20 | 22 |
| h4 | 9 | 12,5 | 13 |
