HELM 85- S / 860 S
Steel roller
- for manually operated gates
- bottom running
- with two ball bearings
- can be used with HELM 86- S / 870 S top guide roller
Material
steel
Load
max. 250 kg (HELM 858 S / 085811)
max. 500 kg (HELM 859 S / 085911)
max. 750 kg (HELM 860 S / 086011)

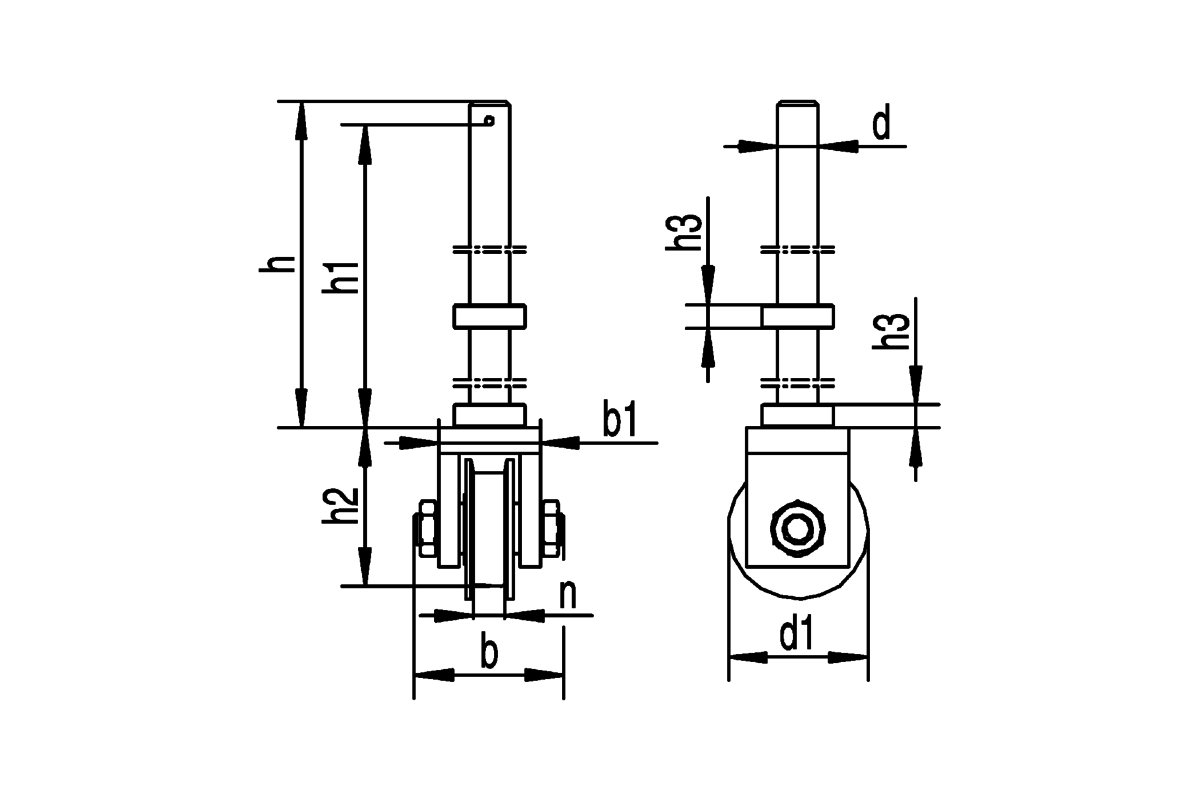

Dimensions (in mm)
| Article Art. no. | HELM 858 S HELM 085811 | HELM 859 S HELM 085911 | HELM 860 S HELM 086011 |
| b | 59 | 80,6 | 90,6 |
| b1 | 40 | 60 | 70 |
| d | Ø 16 | Ø 22 | Ø 26 |
| d1 | Ø 55 | Ø 99,5 | Ø 125 |
| h | 250 | 302 | 302 |
| h1 | 240,5 | 292,5 | 292,5 |
| h2 | 62,5 | 117 | 118 |
| h3 | 9 | 12,1 | 13 |
| n | 12,3 | 20,3 | 25,3 |
