HELM -/01
Joint wall bracket
- profile holder for wall installation
- without levelling
Material
steel or stainless steel

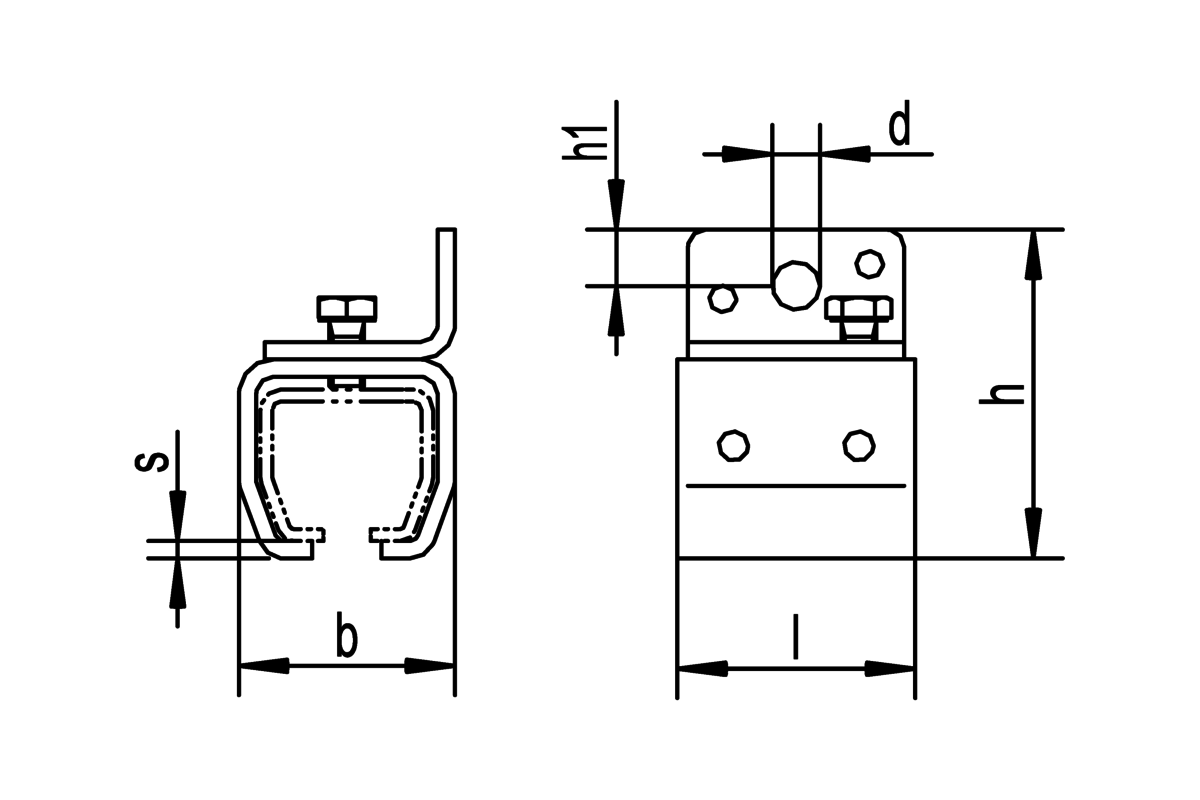

Dimensions (in mm)
| Article Art. no. | HELM 45/01 HELM 0045.. | HELM 101 HELM 0101.. | HELM 301 HELM 0301.. |
| Profile | HELM 45 | HELM 100 | HELM 300 |
| b | 31 | 38 | 50 |
| d | Ø 8,5 | Ø 8* Ø 8,5** | Ø 11 |
| h | 52,5 | 60* 60,5** | 76* 77** |
| h1 | 10 | 10,5* 10** | 13 |
| l | 40 | 40 | 55 |
| s | 2 | 3 | 4 |
*with steel
**with stainless steel
