KWS Pivot hinge 6208 in finish 82 (stainless steel, matte)Product drawing KWS Pivot hinge 6208
✕

KWS 6208..

Pivot hinge for doors up to 120 kg

Back to overview
KWS Pivot hinge 6208 in finish 82 (stainless steel, matte)
Picture shows KWS 6208.82

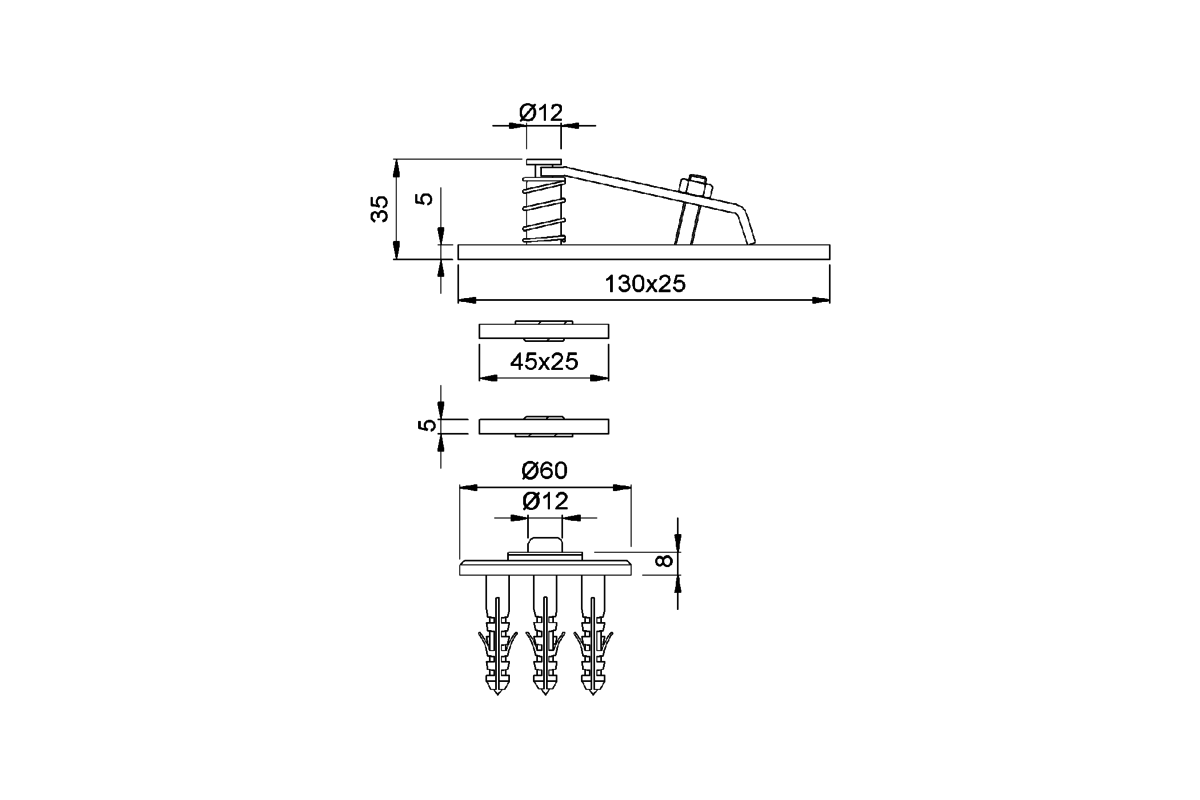

Product drawing KWS Pivot hinge 6208
Drawing shows KWS 6208..

Do you have questions regarding the product?
We are happy to advise you!

Configure product

Please make a new selection.

Article number

KWS 6208.826208.8238
Please correct all errors and fill in all fields.
Please enter a quantity.
piece(s)

Downloads

  • Product information

    KWS 6208..
    Pivot hinge for doors up to 120 kg

    • with needle bearing
    • for non-rebated interior doors


    Material
    stainless steel


    Door weight
    max. 120 kg


    Unit weight
    0,386 kg

  • Installation

    Fix the lower hinge on the floor. Insert the upper hinge into the door frame. Insert the pivot receivers into the door leaf. Locate the door leaf on the lower hinge (90 degrees to the door frame). Fix the upper pivot on the door leaf by means of an adjusting screw.

    With every packaging unit installation instructions are included.
