KWS Pivot hinge 6206 in finish 82 (stainless steel, matte)Product drawing KWS Pivot hinge 6206
✕

KWS 6206..

Pivot hinge for doors up to 60 kg

Back to overview
KWS Pivot hinge 6206 in finish 82 (stainless steel, matte)
Picture shows KWS 6206.82

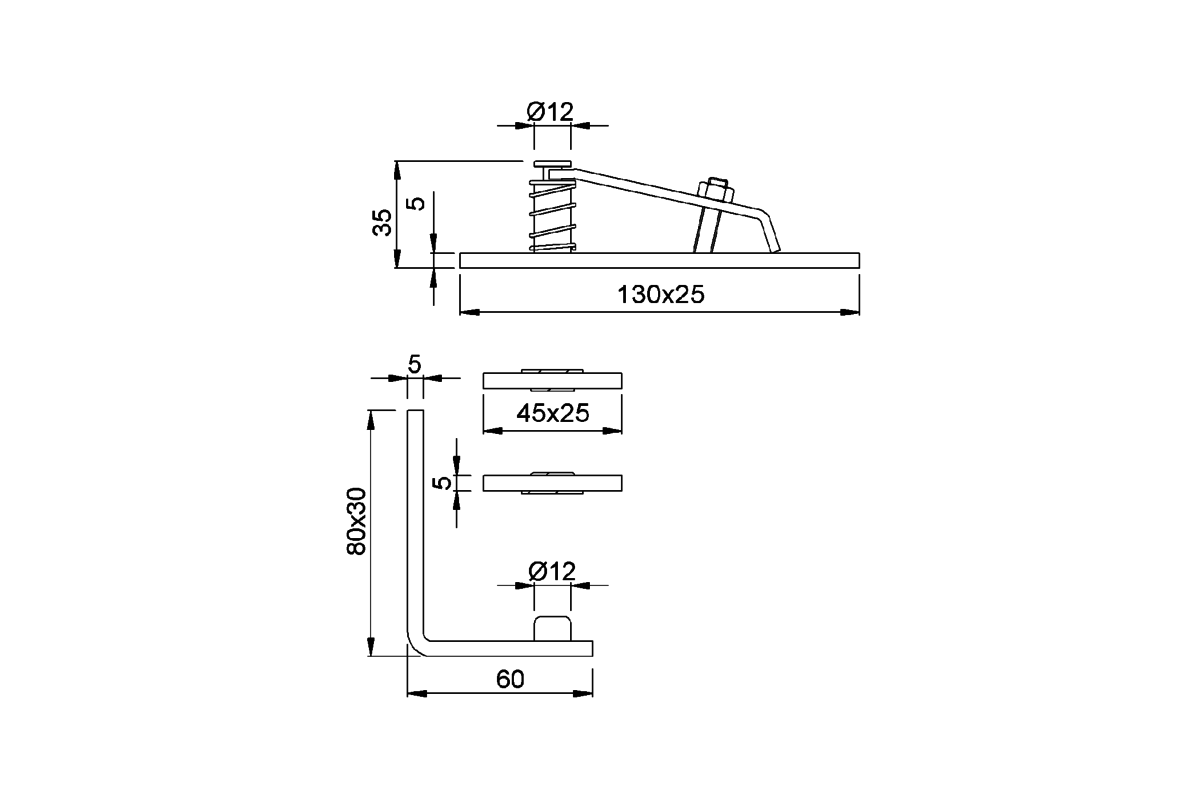

Product drawing KWS Pivot hinge 6206
Drawing shows KWS 6206..

Do you have questions regarding the product?
We are happy to advise you!

Configure product

Please make a new selection.

Article number

KWS 6206.826206.8236
Please correct all errors and fill in all fields.
Please enter a quantity.
piece(s)

Downloads

  • Product information

    KWS 6206..
    Pivot hinge for doors up to 60 kg

    • without needle bearing
    • for non-rebated interior doors


    Material
    stainless steel


    Door weight
    max. 60 kg


    Unit weight
    0,396 kg

  • Installation

    Fix the lower hinge on the door frame. Insert the upper hinge into the door frame. Insert the pivot receivers into the door leaf. Locate the door leaf on the lower hinge (90 degrees to the door frame). Fix the upper pivot on the door leaf by means of an adjusting screw.

    With every packaging unit installation instructions are included.
