KWS 4221..

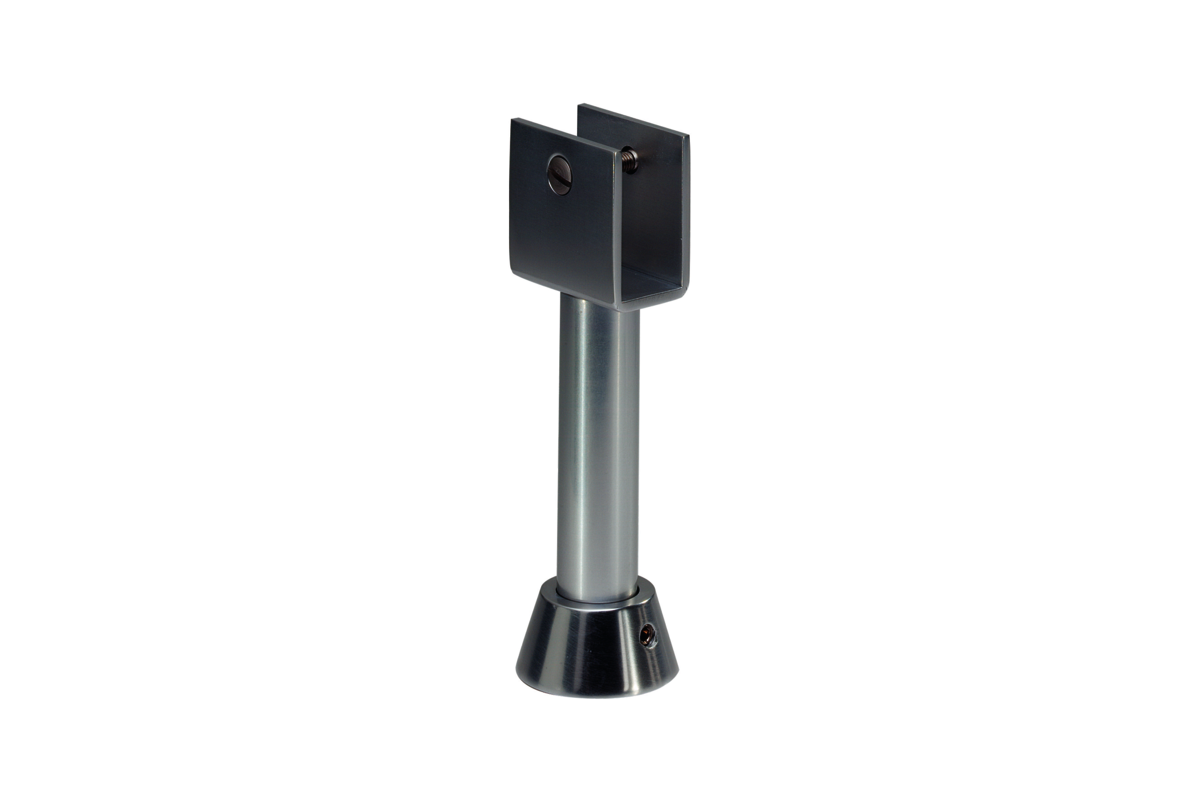

Partition support with U-shaped rest
Material
aluminium or stainless steel
Height
100 mm (KWS 4221..)
120 mm (KWS 4222..)
150 mm (KWS 4223..)
Wall thickness
19 mm
Unit weight
0,160 kg (KWS 4221.. aluminium)
0,390 kg (KWS 4221.. stainless steel)
Screw the floor rosette with inserted washer onto the floor, insert the support and secure it with a clamping screw.
To offset possible deviations when boring the floor plug hole, every partition support is supplied with an additional eccentric disc, which is used instead of the washer. Deviations of up to 4 mm from the centre can be equalised.
The height of the support can be shortened by 5 or 10 mm at the markings to adapt to uneven floors.
With every packaging unit installation instructions are included.
