KWS 4201..

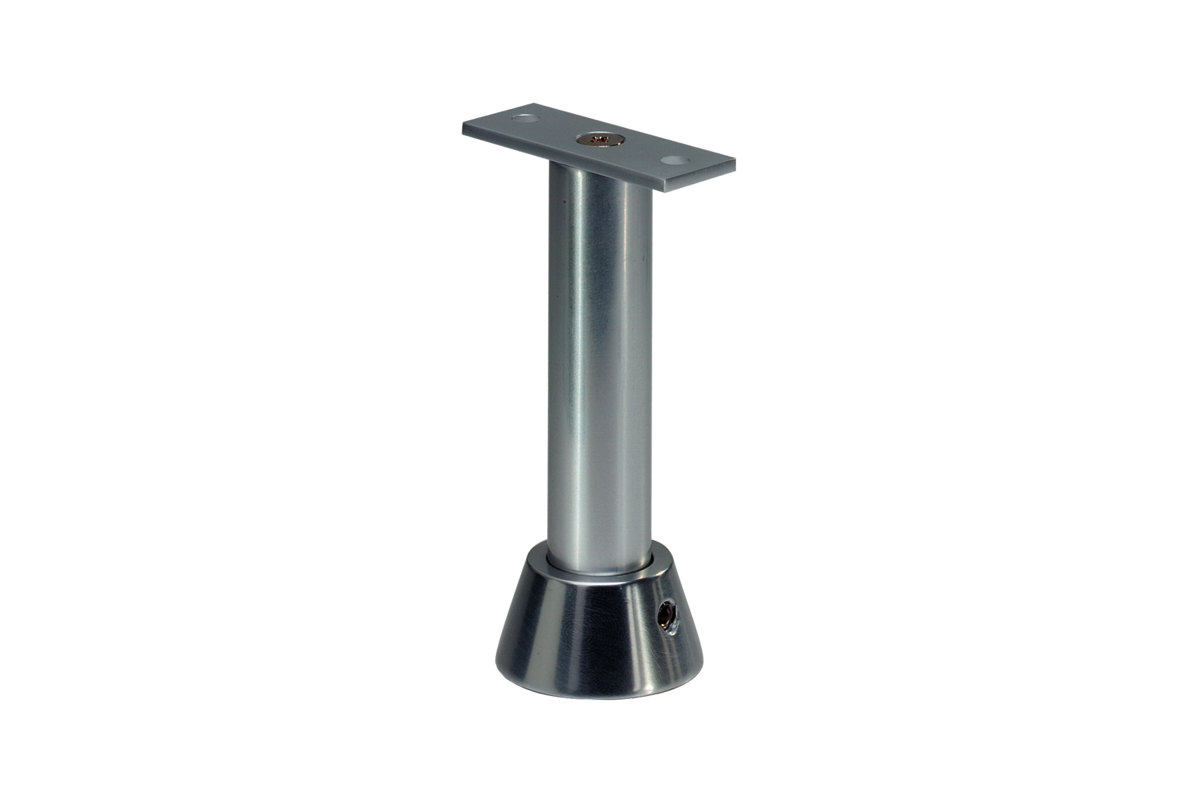

Partition support with flat rest
Material
aluminium or stainless steel
Height
100 mm (KWS 4201..)
120 mm (KWS 4202..)
150 mm (KWS 4203..)
Unit weight
0,140 kg (KWS 4201.. aluminium)
0,330 kg (KWS 4201.. stainless steel)
Screw the floor rosette with inserted washer onto the floor, insert the support and secure it with a clamping screw.
To offset possible deviations when boring the floor plug hole, every partition support is supplied with an additional eccentric disc, which is used instead of the washer. Deviations of up to 4 mm from the centre can be equalised.
The height of the support can be shortened by 5 or 10 mm at the markings to adapt to uneven floors.
With every packaging unit installation instructions are included.
