KWS 6128..

Locking handle for one-sided door operation

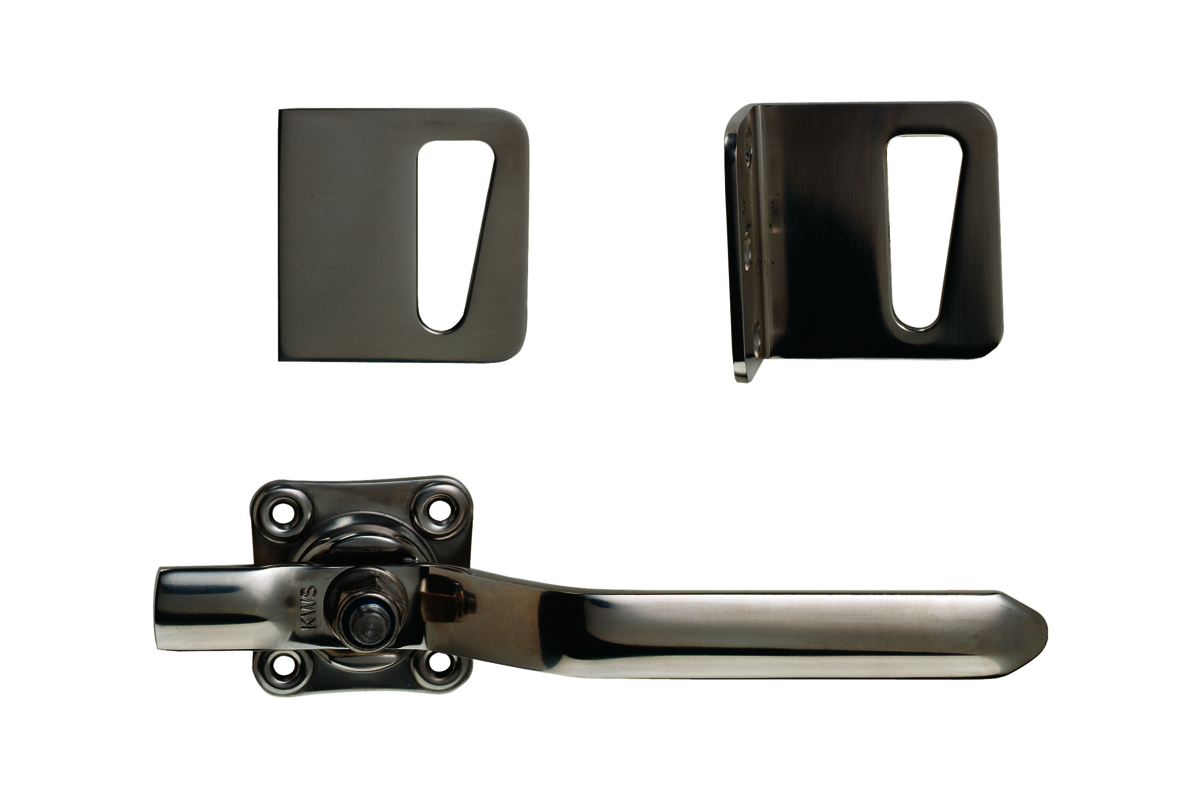

Picture shows KWS 6128.82 / 6129.82.10000 (right-hand orientation)

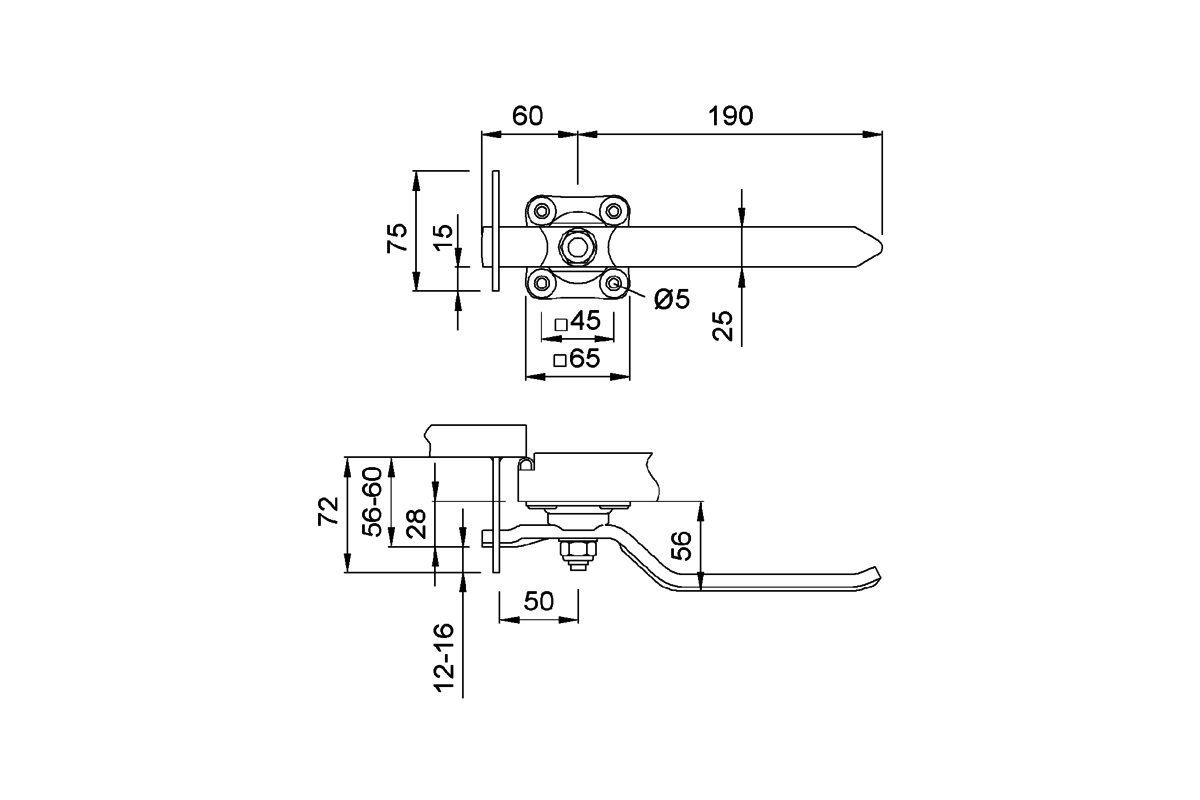

Drawing shows KWS 6128..

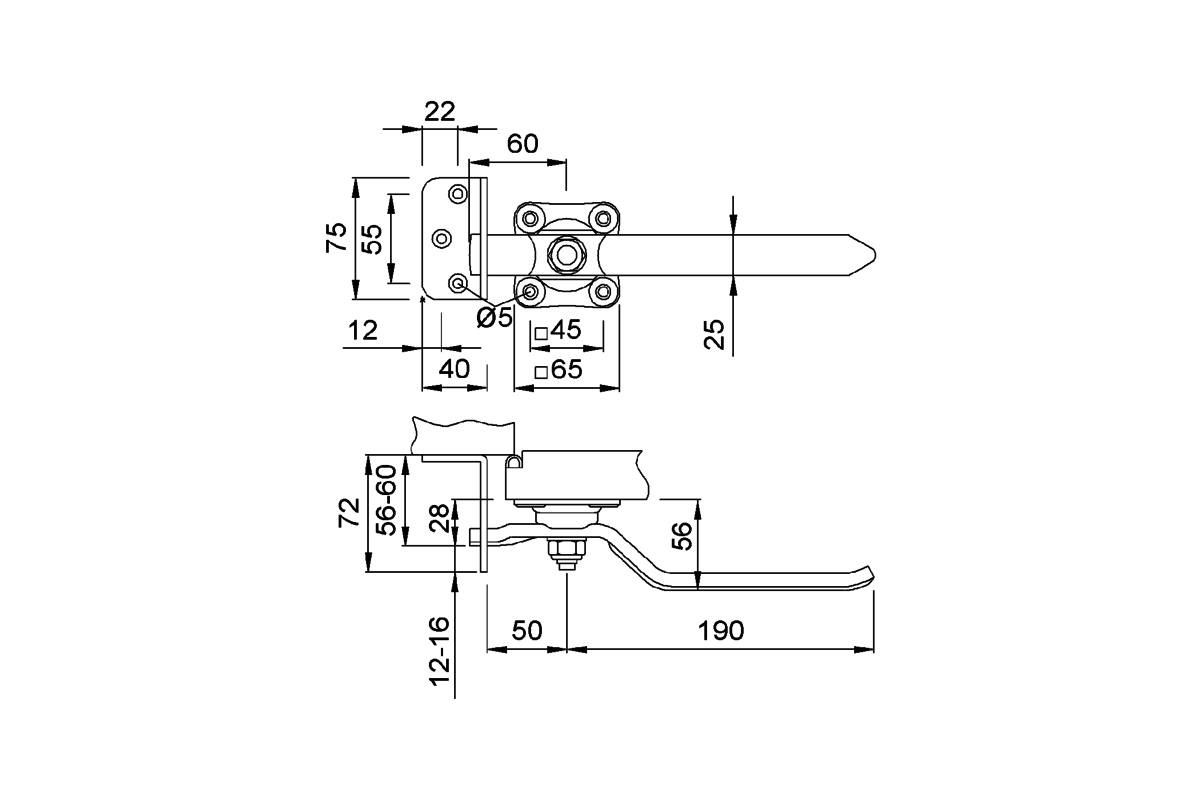

Drawing shows KWS 6129..

Do you have questions regarding the product?
We are happy to advise you!

Variant

Please make a new selection.

Finish

Please make a new selection.

Direction

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 6128..
Locking handle for one-sided door operation

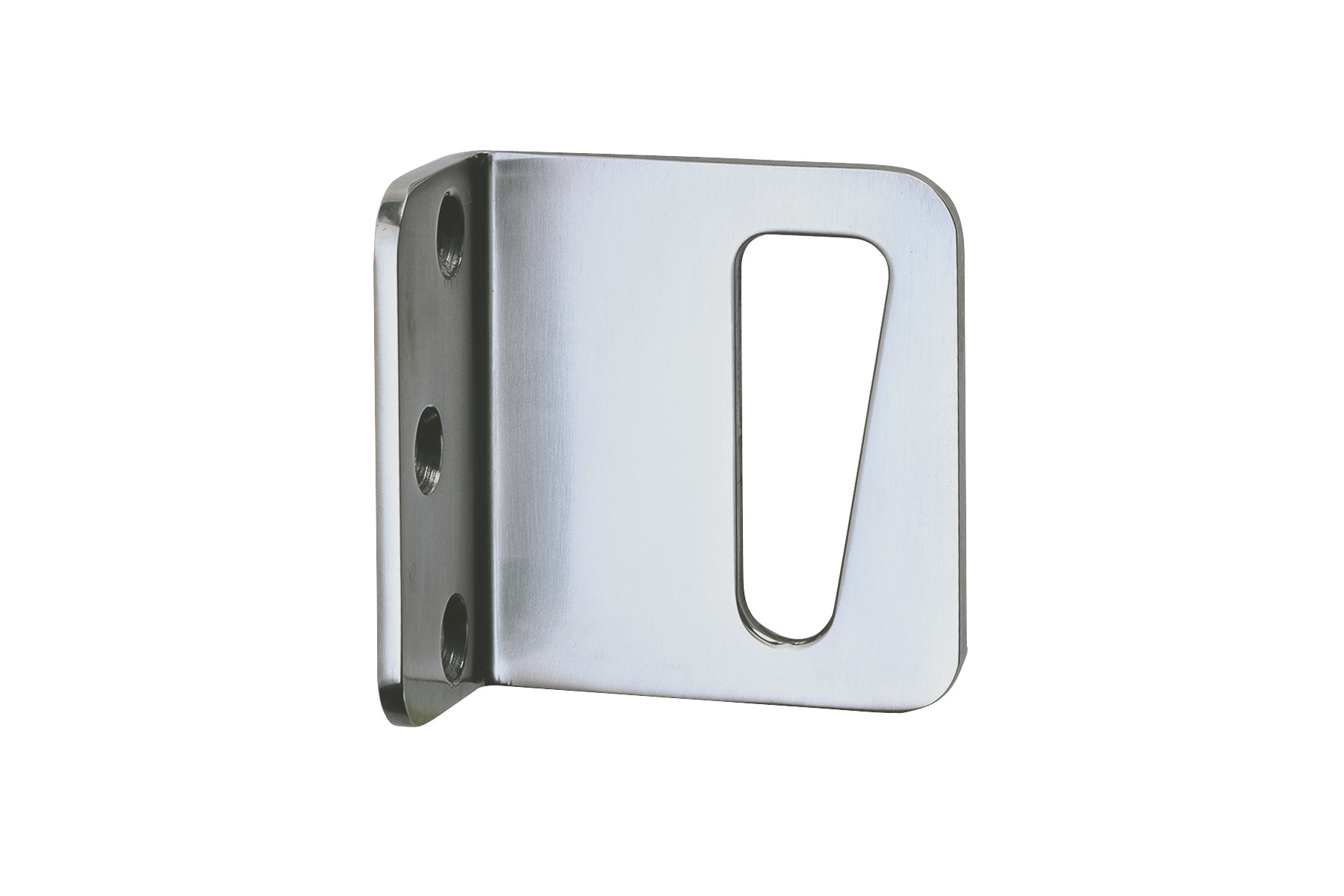

with strike plate for welding on (KWS 6128.., suitable for right- and left-opening doors) or with angled strike plate for screwing on

Material
steel or stainless steel

Door operation
one-sided

Unit weight
0,700 kg (KWS 6128.. steel)
0,680 kg (KWS 6128.. stainless steel)
0,770 kg (KWS 6129.. steel)
0,750 kg (KWS 6129.. Stainless steel)
Installation
Screw on the locking handle according to the dimensions in the product drawing. Weld on the strike plate or screw on the angled strike plate at the corresponding position.
The actuation path of the lever is at 90 degrees. The locking handle should be installed in such a way that the lever is level in the closed position and facing downwards in the open position.
Downloads
Product drawing KWS 6128.. (DWG)
Product drawing KWS 6129.. (DWG)
