KWS Protection rosette 3462 in finish 82 (stainless steel, matte)Product drawing KWS Protection rosette 3462
✕

KWS 3462..

Protection rosette

Back to overview

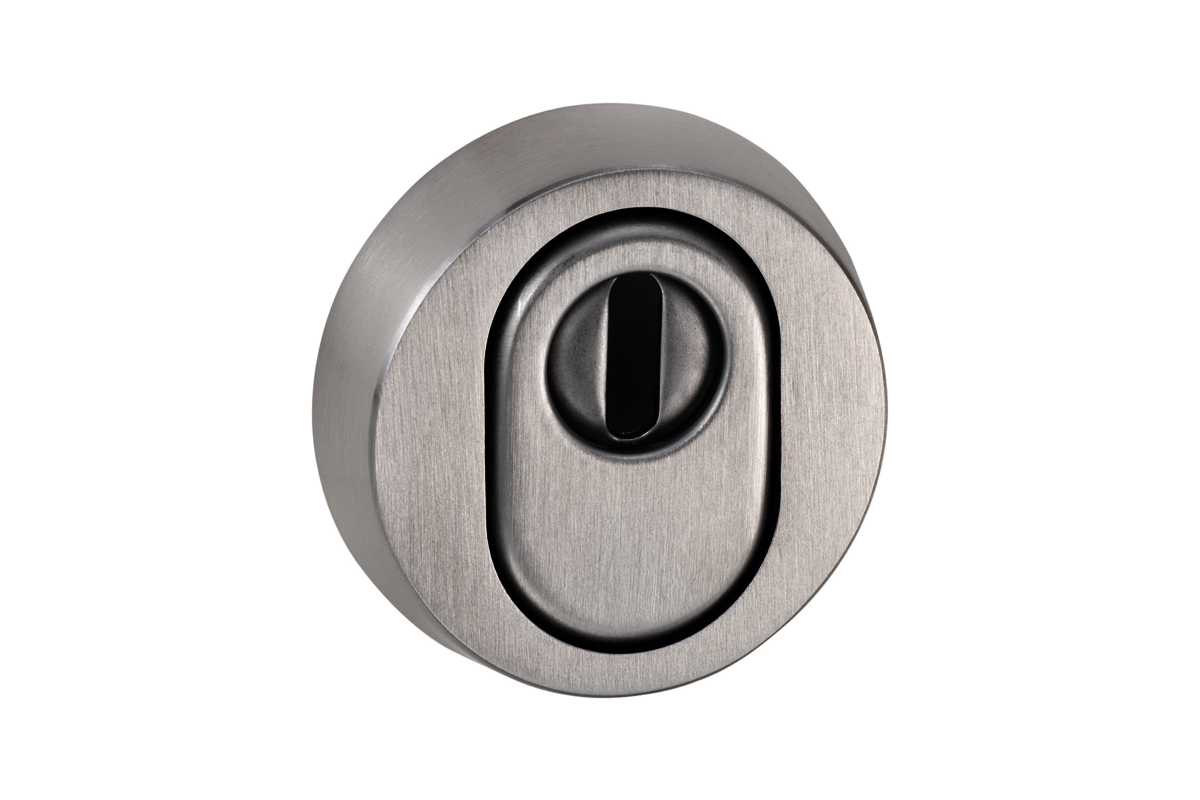

KWS Protection rosette 3462 in finish 82 (stainless steel, matte)
Picture shows KWS 3462.82

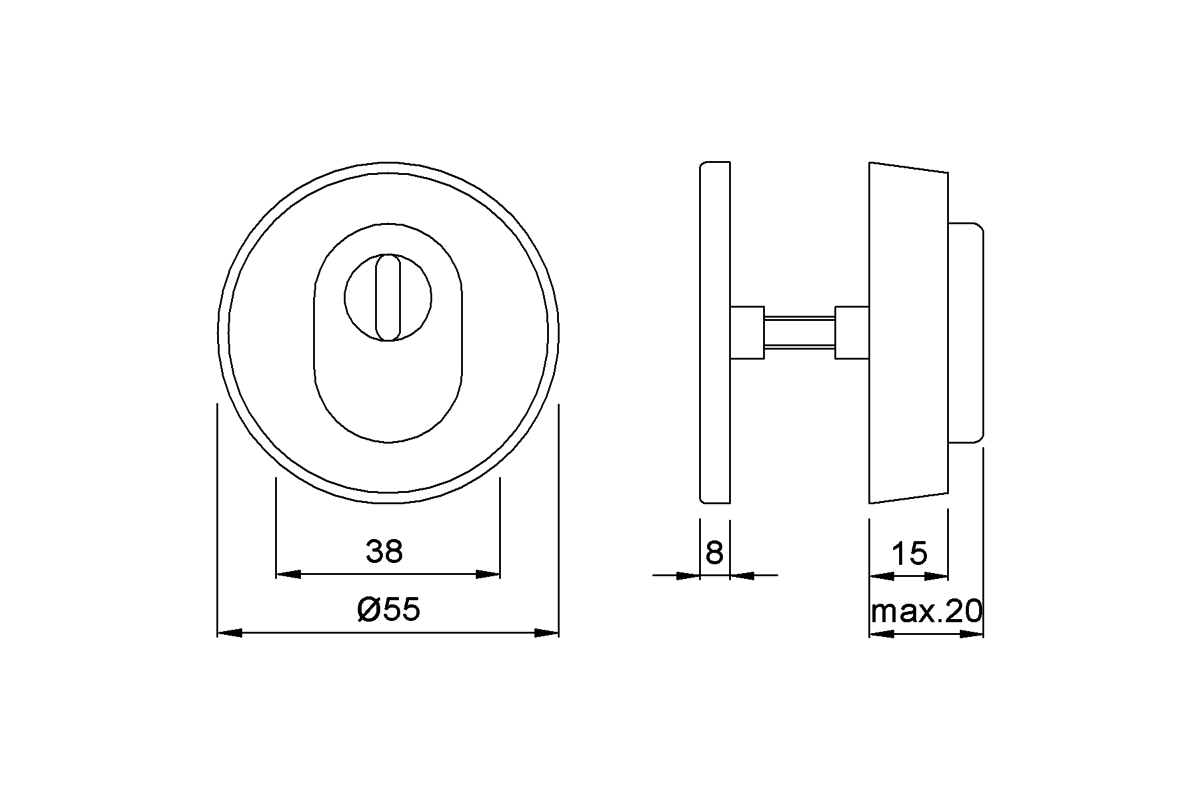

Product drawing KWS Protection rosette 3462
Drawing shows KWS 3462..

Do you have questions regarding the product?
We are happy to advise you!

Configure product

Please make a new selection.
Please make a new selection.

Article number

KWS 3462.223462.22294
Please correct all errors and fill in all fields.
Please enter a quantity.
piece(s)

Downloads

  • Product information

    KWS 3462..
    Protection rosette

    • with pull-off protection
    • to be screwed through


    Material
    aluminium or stainless steel


    Diameter
    Ø 55 mm


    Cylinder projection
    12 to 16 mm


    Unit weight
    0,250 kg (aluminium)
    0,430 kg (stainless steel)

  • Installation

    Screw the rosette from the inside through the lock and fit the profile cylinder from the inside.

  • Downloads
