KWS Key rosette 3455 in finish 22 (aluminium, KWS 1 silver anodised) with PZ keywayProduct drawing KWS Key rosette 3455
✕

KWS 3455..

Key rosette

Back to overview
KWS Key rosette 3455 in finish 22 (aluminium, KWS 1 silver anodised) with PZ keyway
Picture shows KWS 3455.22.10000

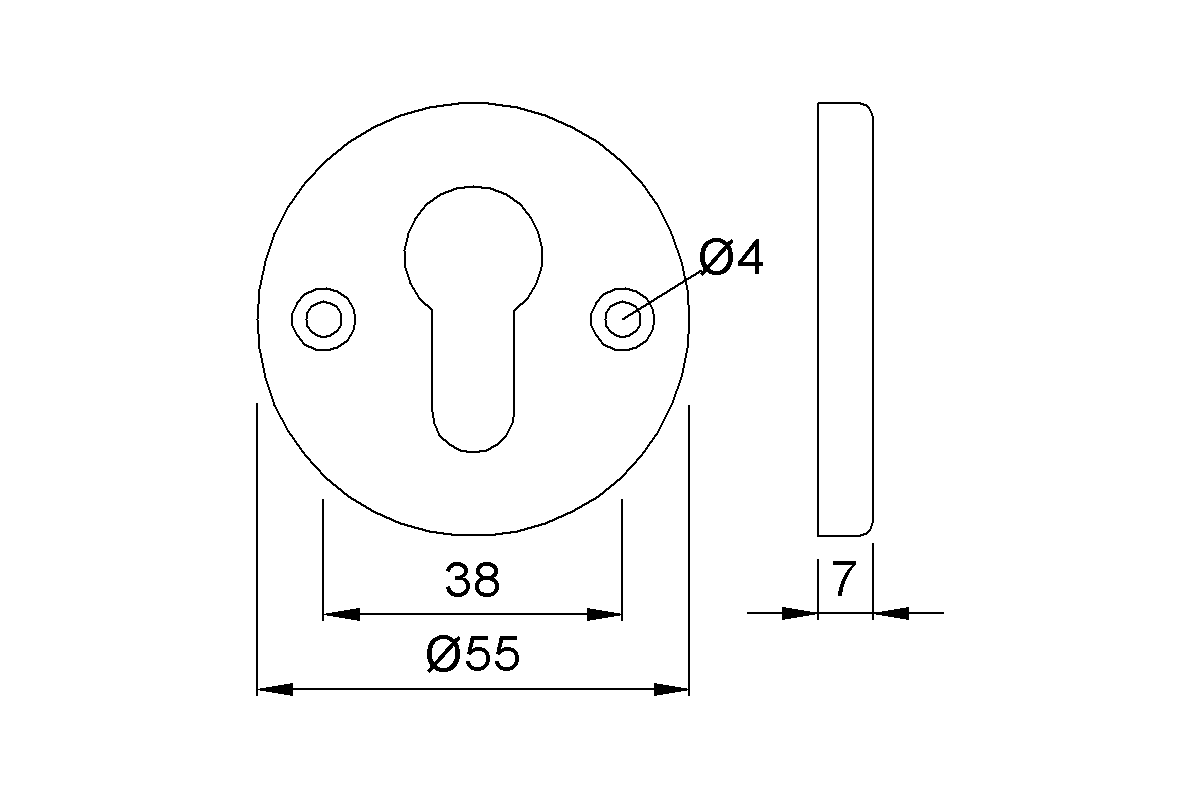

Product drawing KWS Key rosette 3455
Drawing shows KWS 3455..

Do you have questions regarding the product?
We are happy to advise you!

Configure product

Please make a new selection.
Please make a new selection.
Please make a new selection.

Article number

KWS 3455.22.100003455.22.10000287
Please correct all errors and fill in all fields.
Please enter a quantity.
piece(s)

Downloads

  • Product information

    KWS 3455..
    Key rosette

    with screw holes for M4 countersunk screws


    Material
    aluminium, brass or stainless steel


    Diameter
    Ø 55 mm


    Height
    7 mm


    Keyway
    blind, PZ or BB


    Unit weight
    0,010 kg (aluminium)
    0,030 kg (brass)
    0,030 kg (stainless steel)
