KWS 4607..

Handrail support with concave or flat rest or M6 threaded bolt

Picture shows KWS 4607.82

Drawing shows KWS 4607.. / 4617..

Drawing shows KWS 4608.. / 4618..

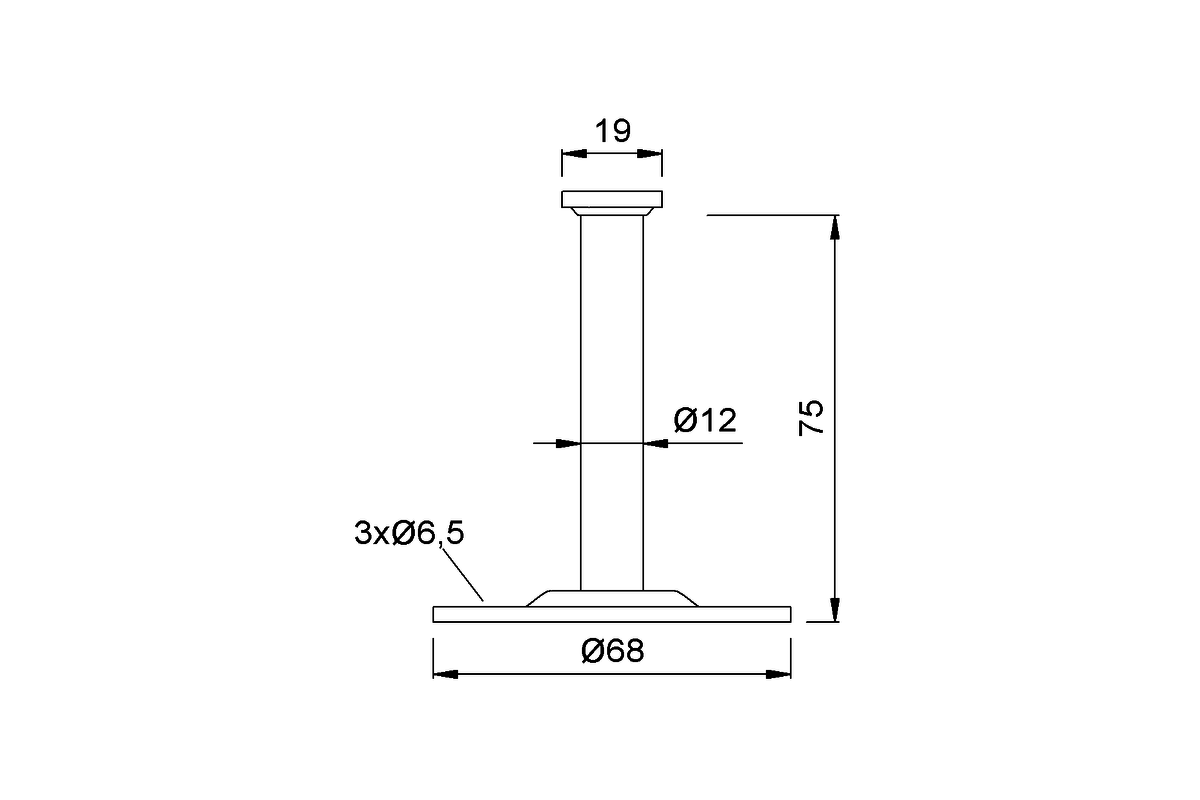

Drawing shows KWS 4609.. / 4619..

Do you have questions regarding the product?
We are happy to advise you!

Variant

Please make a new selection.

Form of rest

Please make a new selection.

Clearance

Please make a new selection.

Finish

Please make a new selection.

Diameter handrail tube

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 4607..
Handrail support with concave or flat rest or M6 threaded bolt
for balustrade handrails
with or without cover cap
to be screwed

Material
steel or stainless steel

Form of rest
concave (KWS 4608.. / 4618..)
flat (KWS 4609.. / 4619..)
M6 threaded bolt (KWS 4607.. / 4617..)

Clearance
75 mm

Unit weight
0,136 kg (KWS 4607.. steel)
0,136 kg (KWS 4607.. stainless steel)
Installation
The distance between the supports should be between 800 and 1.200 mm depending on the load and the surface.
Downloads
Product drawing KWS 4607.. / 4617.. (DWG)
Product drawing KWS 4608.. / 4618.. (DWG)
Product drawing KWS 4609.. / 4619.. (DWG)
