KWS Handrail support 4586 in finish 31 (aluminium, KWS 1 silver anodised) with 20 mm radiusProduct drawing KWS Handrail support 4585 / 4586 / 4587 / 4588 / 4589
✕

KWS 4585..

Handrail support with concave rest

Back to overview

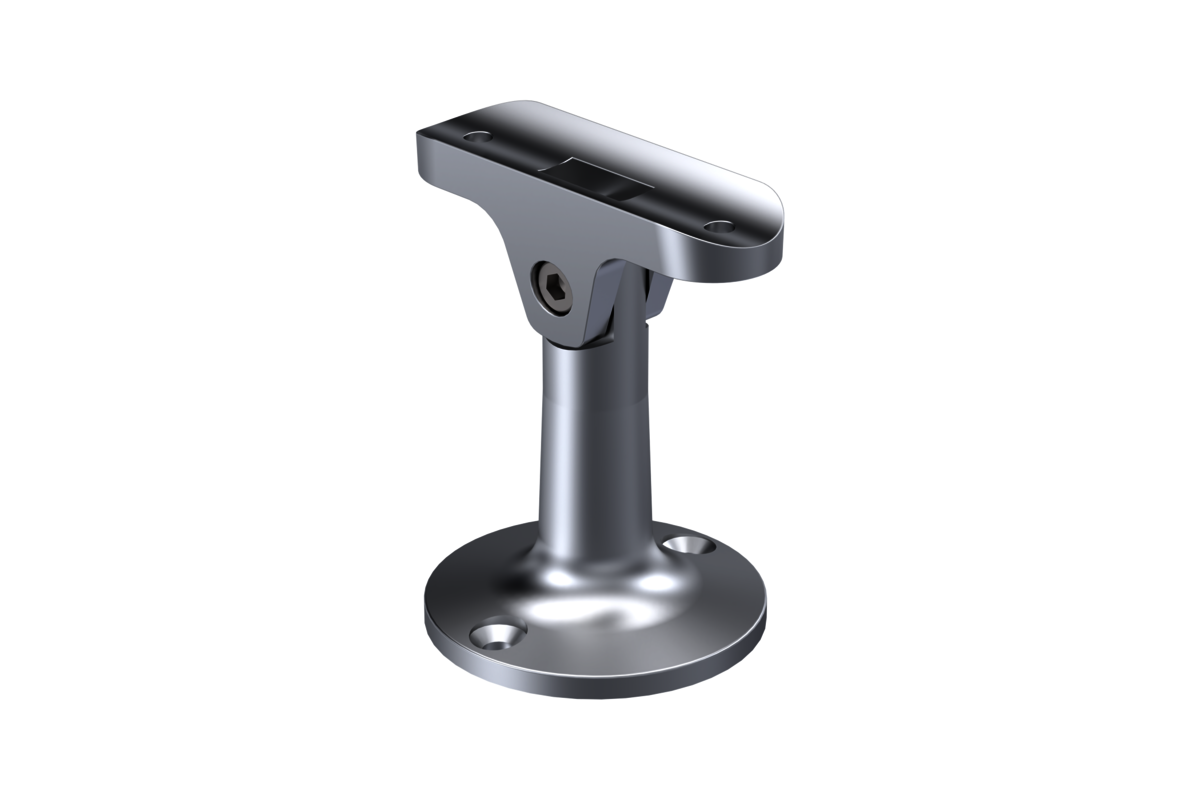

KWS Handrail support 4586 in finish 31 (aluminium, KWS 1 silver anodised) with 20 mm radius
Picture shows KWS 4586.31.00000
Product drawing KWS Handrail support 4585 / 4586 / 4587 / 4588 / 4589
Drawing shows KWS 4585.. ff.

Do you have questions regarding the product?
We are happy to advise you!

Configure product

Please make a new selection.
Please make a new selection.
Please make a new selection.

Article number

KWS 4585.31.000004585.31.00000669
Please correct all errors and fill in all fields.
Please enter a quantity.
piece(s)

Downloads

  • Product information

    KWS 4585..
    Handrail support with concave rest

    • for balustrade handrails
    • to be screwed
    • with two countersunk screw holes


    Material
    aluminium


    Clearance
    55 mm (KWS 4585..)
    75 mm (KWS 4586..)
    100 mm (KWS 4587..)
    120 mm (KWS 4588..)
    150 mm (KWS 4589..)


    Unit weight
    0,120 kg (KWS 4587..)

  • Installation

    This handrail support is only suitable for vertical installation.

    The distance between the supports should be between 800 and 1.200 mm depending on the load and the surface.

  • Downloads
