KWS 4574..

Handrail support with concave or flat rest

Picture shows KWS 4574.82.00000

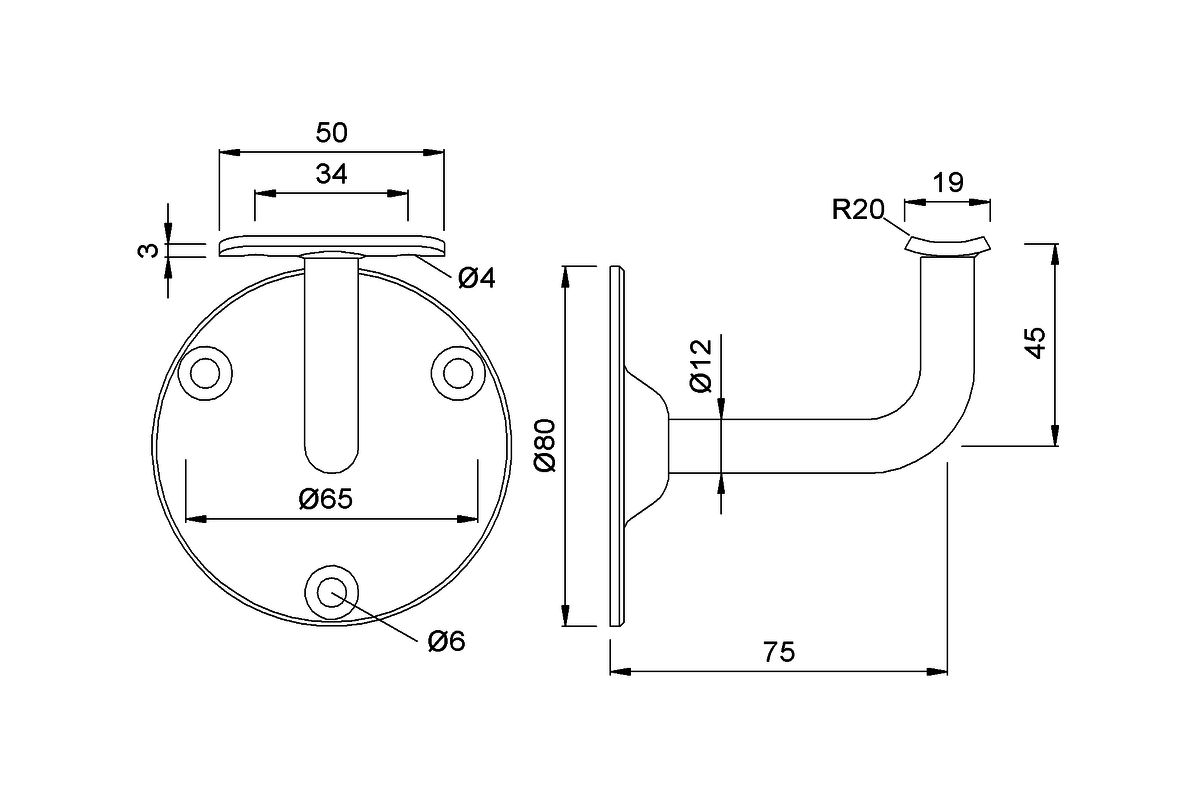

Drawing shows KWS 4574..

Drawing shows KWS 4575..

Do you have questions regarding the product?
We are happy to advise you!

Form of rest

Please make a new selection.

Wall clearance

Please make a new selection.

Finish

Please make a new selection.

Diameter handrail tube

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 4574..
Handrail support with concave or flat rest
for top-mounted handrails
to be screwed

Material
steel or stainless steel

Form of rest
concave (KWS 4574..)
flat (KWS 4575..)

Wall clearance
75 mm

Unit weight
0,220 kg (steel)
0,220 kg (stainless steel)
Installation
The distance between the supports should be between 800 and 1.200 mm depending on the load and the wall condition.
Downloads
Product drawing KWS 4574.. (DWG)
Product drawing KWS 4575.. (DWG)
