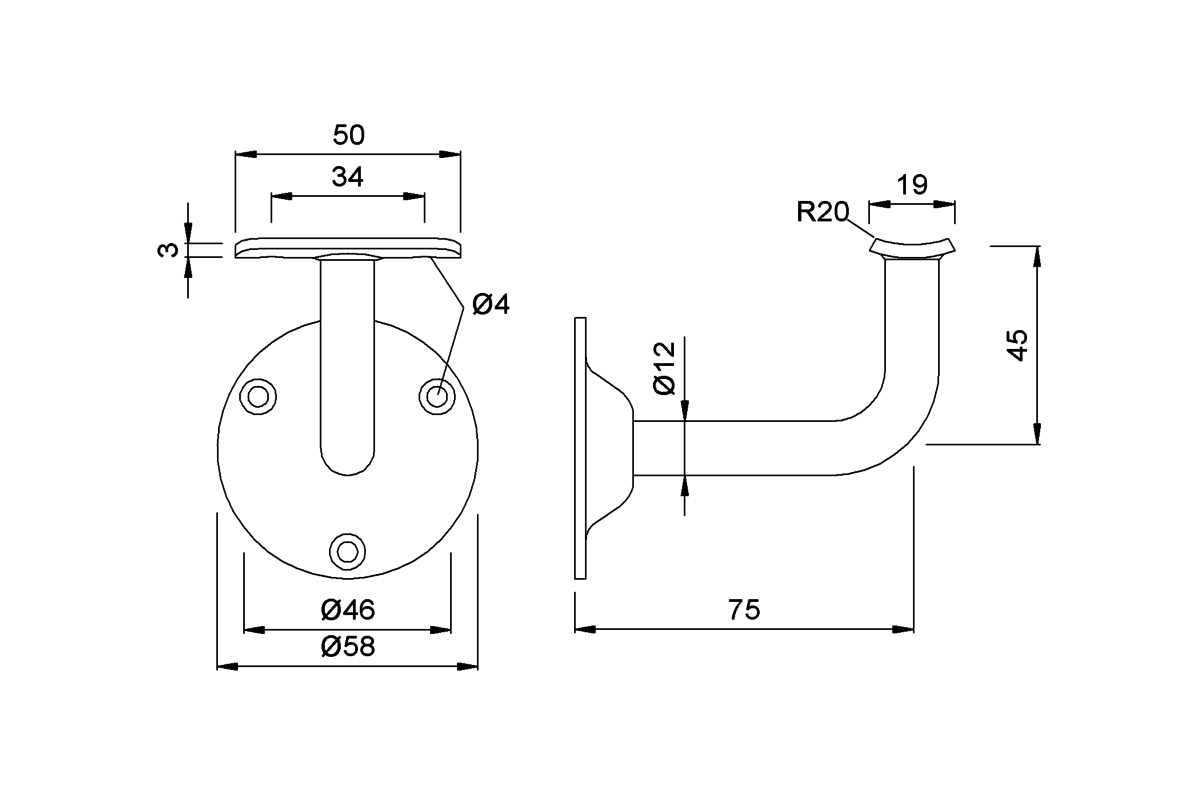

KWS 4524..
Handrail support with concave or flat rest
Material
steel, brass or stainless steel
Form of rest
concave (KWS 4524..)

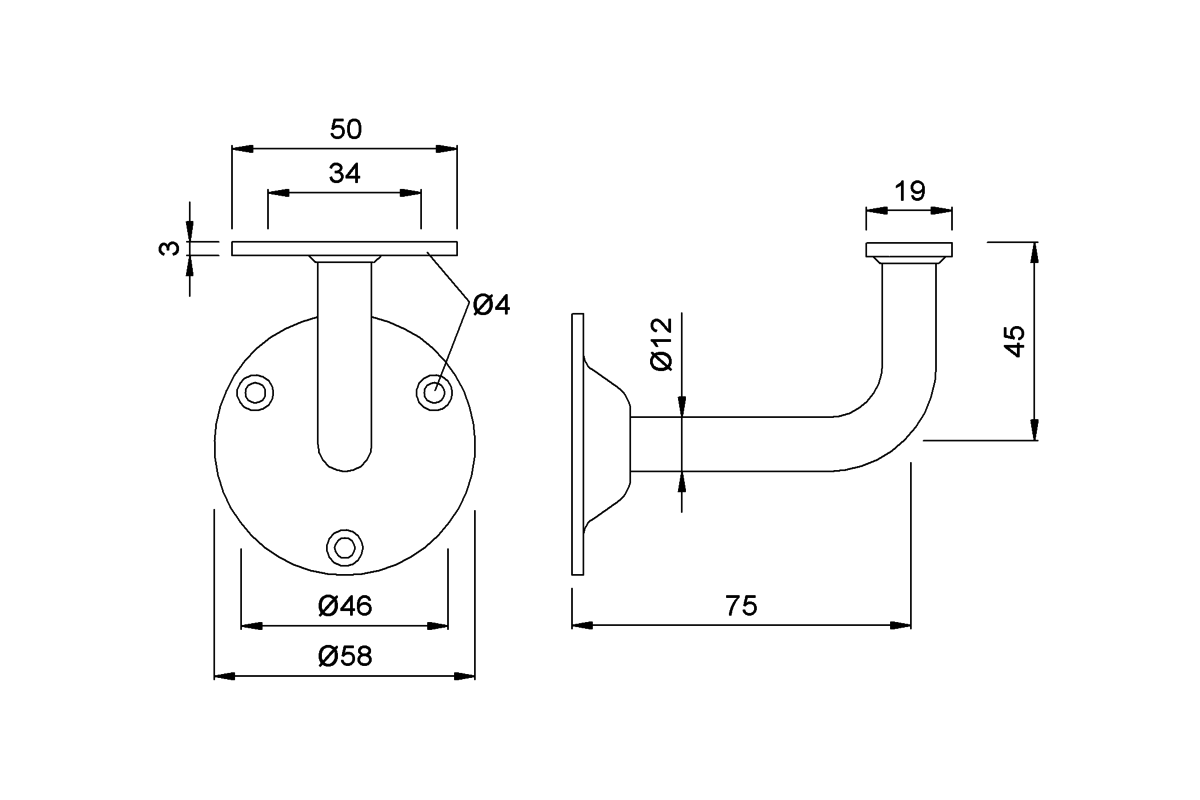

flat (KWS 4525..)
Wall clearance
75 mm
Unit weight
0,160 kg (steel)
0,180 kg (brass)
0,160 kg (stainless steel)
The distance between the supports should be between 800 and 1.200 mm depending on the load and the wall condition.
