KWS 4503..

Handrail support with flat rest

Picture shows KWS 4503.02

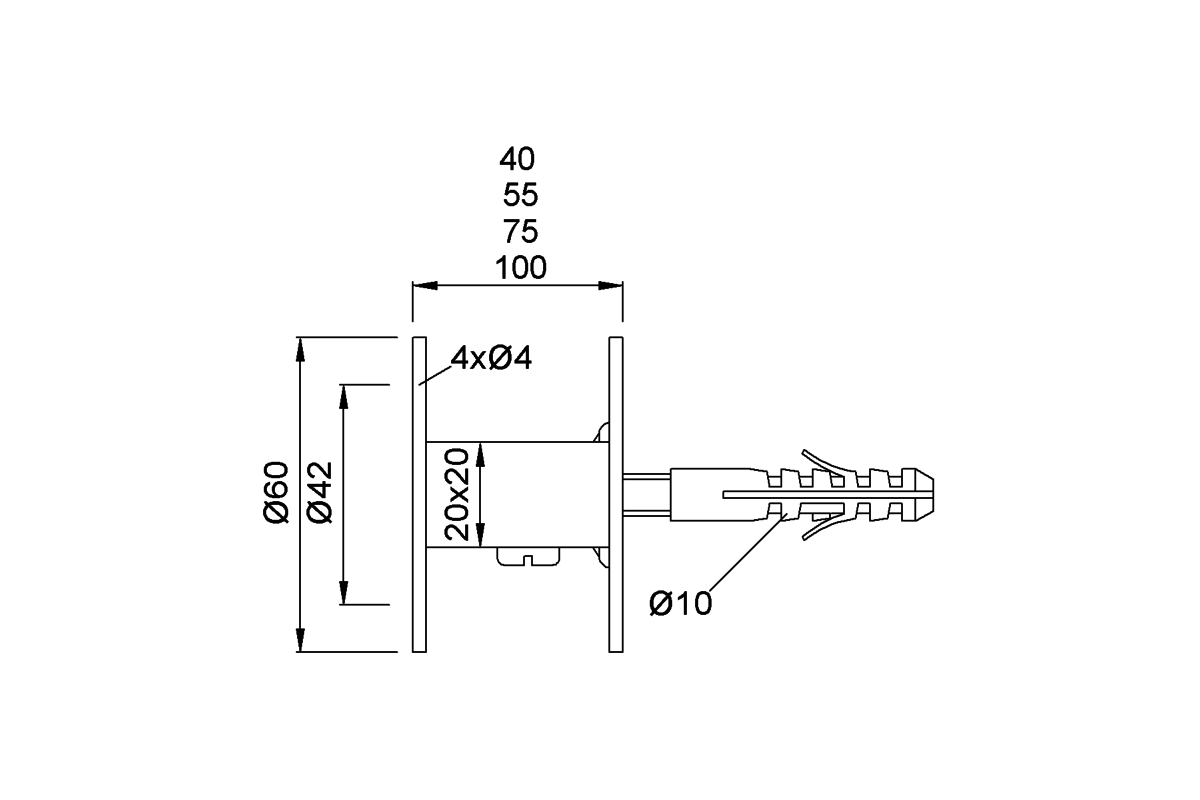

Drawing shows KWS 4503.. ff.

Do you have questions regarding the product?
We are happy to advise you!

Wall clearance

Please make a new selection.

Finish

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 4503..
Handrail support with flat rest
for front-mounted handrails
two parts
to be screwed
with mounting material

Material
steel

Wall clearance
40 mm (KWS 4503..)
55 mm (KWS 4505..)
75 mm (KWS 4507..)
100 mm (KWS 4543..)

Unit weight
0,200 kg (KWS 4503..)
Installation
Mark and bore holes with a distance spacing of 800 to 1.200 mm at the wall positions planned for the handrail and screw on the wall parts of the supports. Fix the counterparts on the handrail at the corresponding positions. Press the handrail with brackets into the wall supports and firmly join with screws.
Downloads
Product drawing (DWG)
