KWS 5281..

Flush pull for glass and smooth timber sliding doors

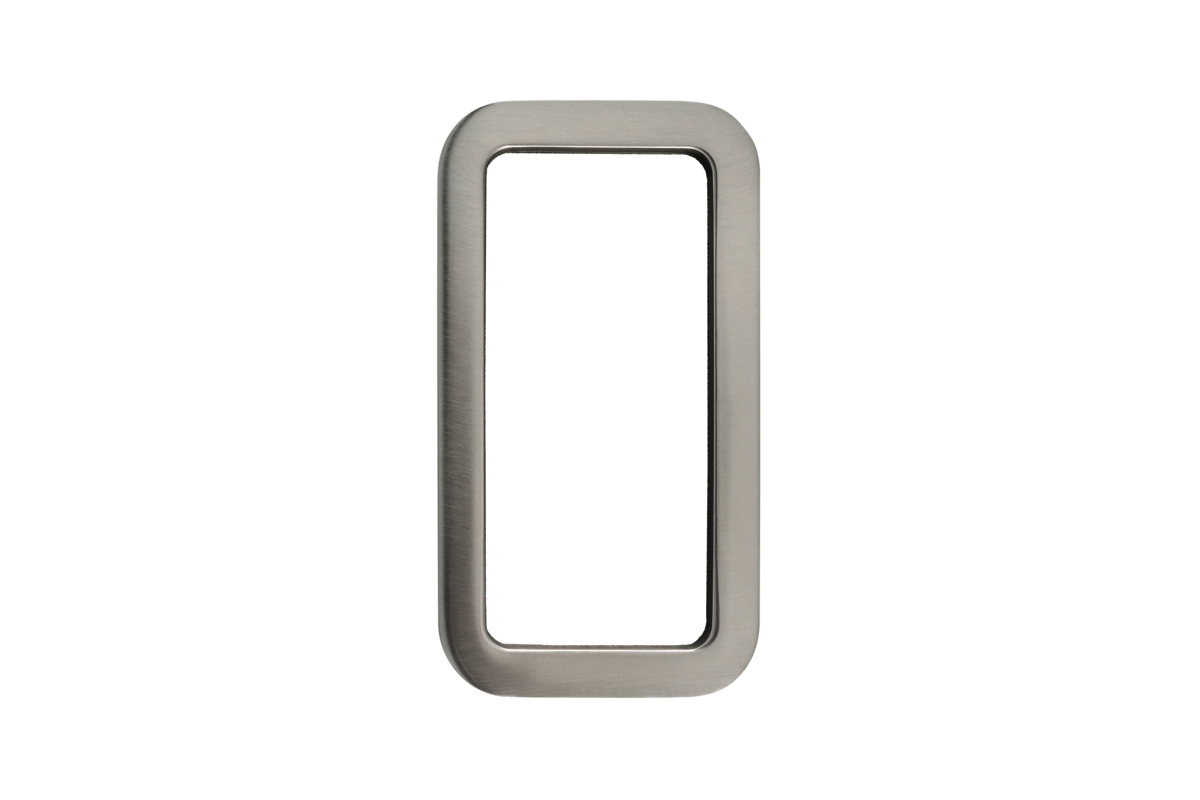

Picture shows KWS 5281.22

Drawing shows KWS 5281..

Do you have questions regarding the product?
We are happy to advise you!

Dimensions

Please make a new selection.

Finish

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 5281..
Flush pull for glass and smooth timber sliding doors
recessed grip
to be pasted on the door

Material
aluminium

Dimensions
120 x 65 mm

Unit weight
0,089 kg
Installation
Clean the door (glass door e.g. with special UV cleaner, acetone or isopropanol). Remove foil from the adhesive strips, align the flush ring angularly (with an angle gauge or auxiliary lines) and paste it on. Press it firmly, especially on the adhesive strips.
Once attached, the flush ring should not be removed.
The adhesive strips must cure for 24 hours.
Downloads
Product drawing (DWG)
