Picture shows KWS 5072.82.11720 (right-hand orientation)Drawing shows KWS 5072.. ff.
✕

KWS 5072..

Flush lever handle

Back to overview

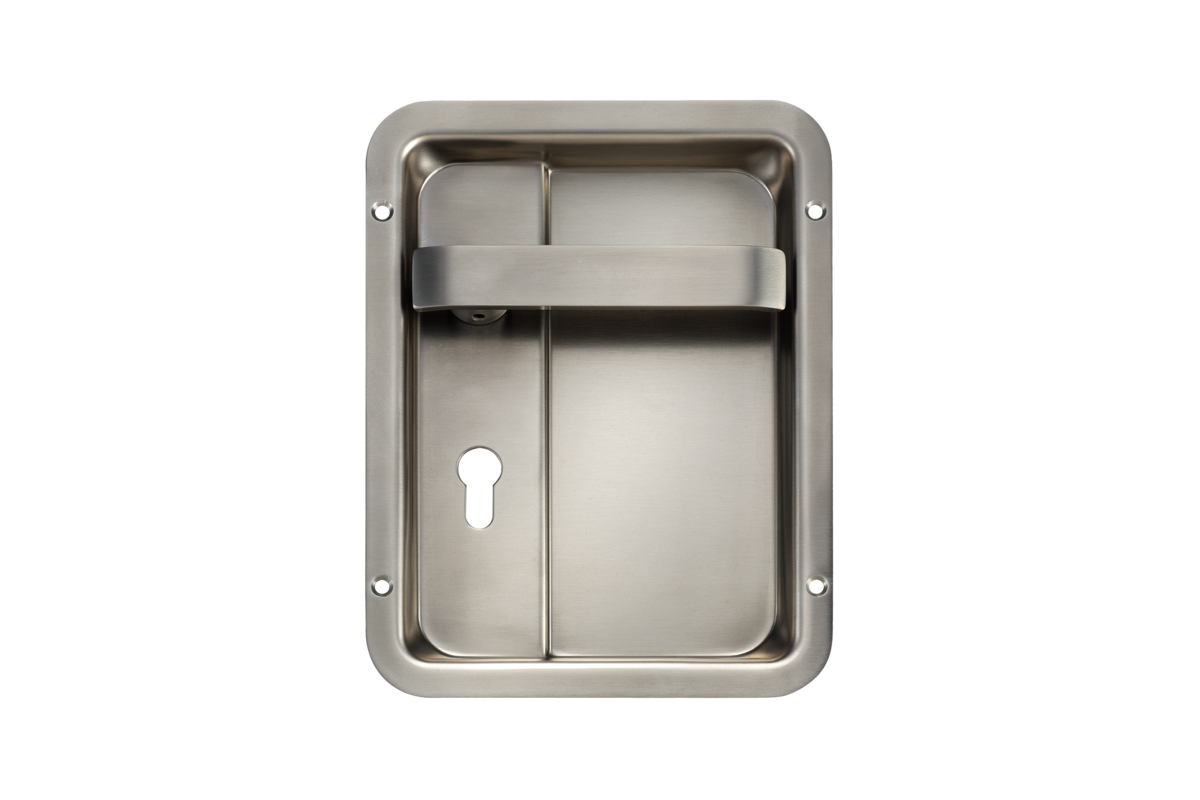

Picture shows KWS 5072.82.11720 (right-hand orientation)
Picture shows KWS 5072.82.11720 (right-hand orientation)

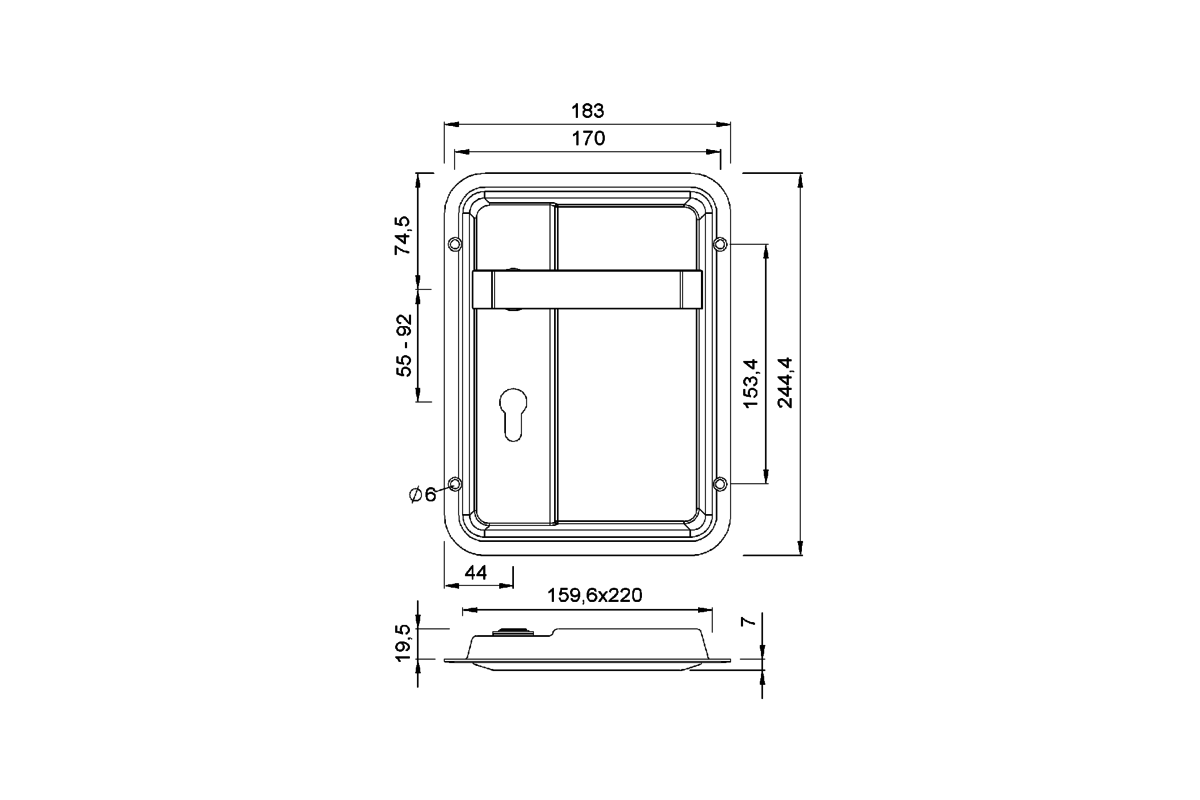

Drawing shows KWS 5072.. ff.
Drawing shows KWS 5072.. ff.

Do you have questions regarding the product?
We are happy to advise you!

Configure product

Please make a new selection.
Please make a new selection.
Please make a new selection.
Please make a new selection.
Please make a new selection.
Please enter a number between 55 and 92 .

Article number

KWS 5072.82.000005072.82.0000061
Please correct all errors and fill in all fields.
Please enter a quantity.
piece(s)

Downloads

  • Product information

    KWS 5072..
    Flush lever handle

    • lever handle recessed and fixed-pivoted
    • spindle of the spindle part bolted on
    • for flush installation


    Material
    stainless steel


    Dimensions
    183 x 244 mm


    Female part / spindle part
    8 mm (KWS 5072.. / 5073..)
    9 mm (KWS 5074.. / 5075..)


    Keyway
    unperforated, PZ or KABA


    Distance for keyway
    55 to 92 mm


    Unit weight
    0,550 kg (KWS 5072..)

  • Installation

    There has to be sufficient insertion depth for flush installation.
