KWS 5061..

Flush lever handle

Back to overview

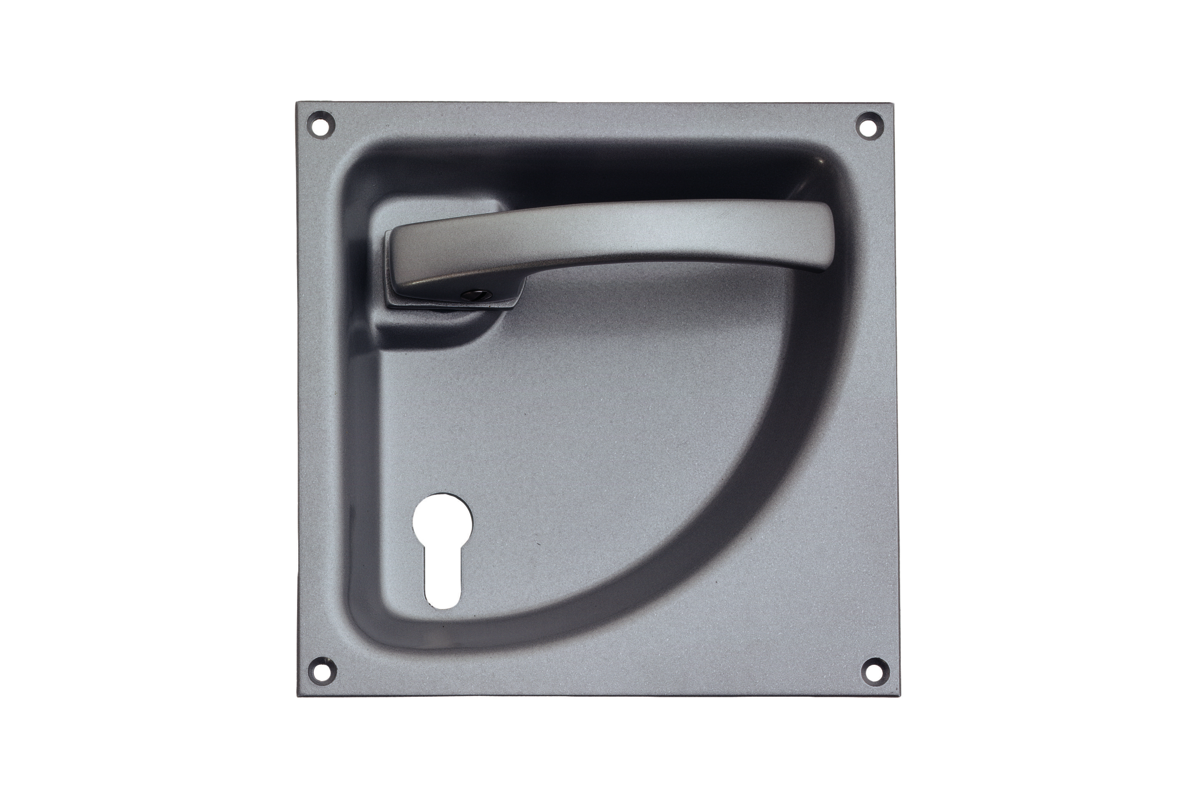

Picture shows KWS 5061.02.11720 (right-hand orientation)
Picture shows KWS 5061.02.11720 (right-hand orientation)
Picture shows KWS 5061.82.11720 (right-hand orientation)
Picture shows KWS 5061.82.11720 (right-hand orientation)

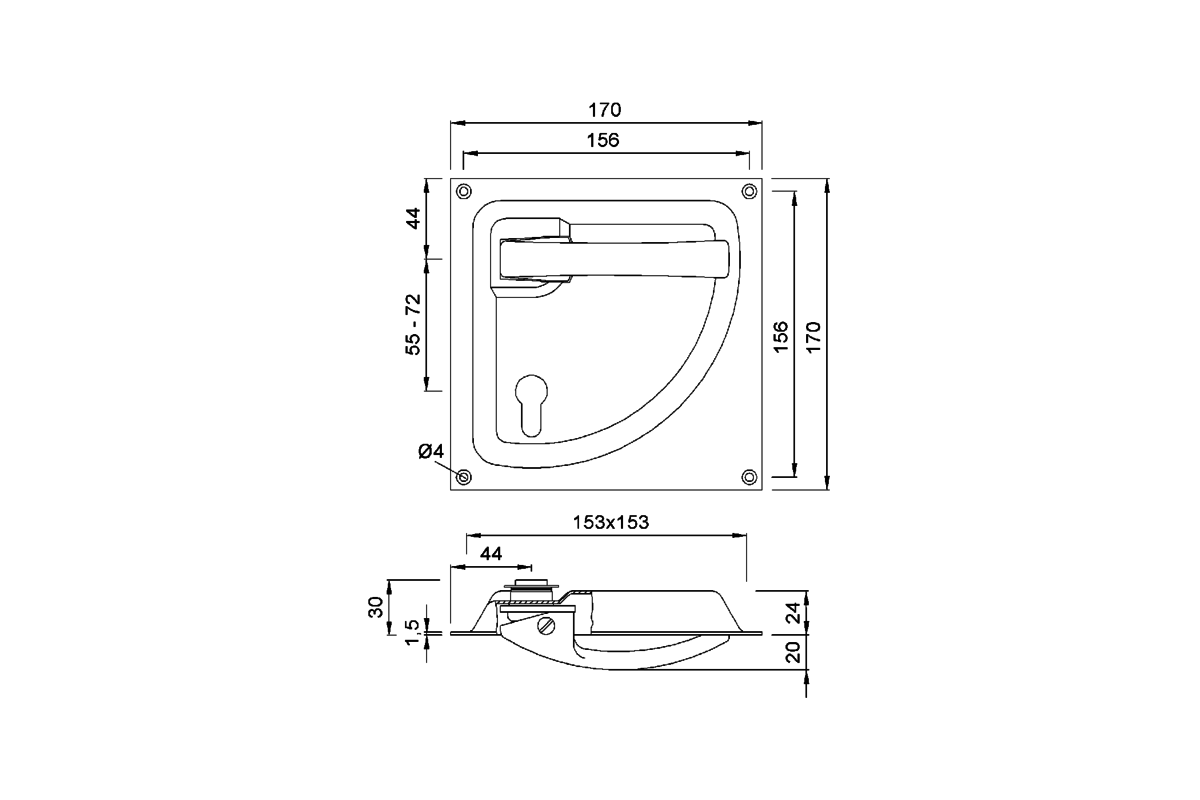

Drawing shows KWS 5061.. ff.
Drawing shows KWS 5061.. ff.

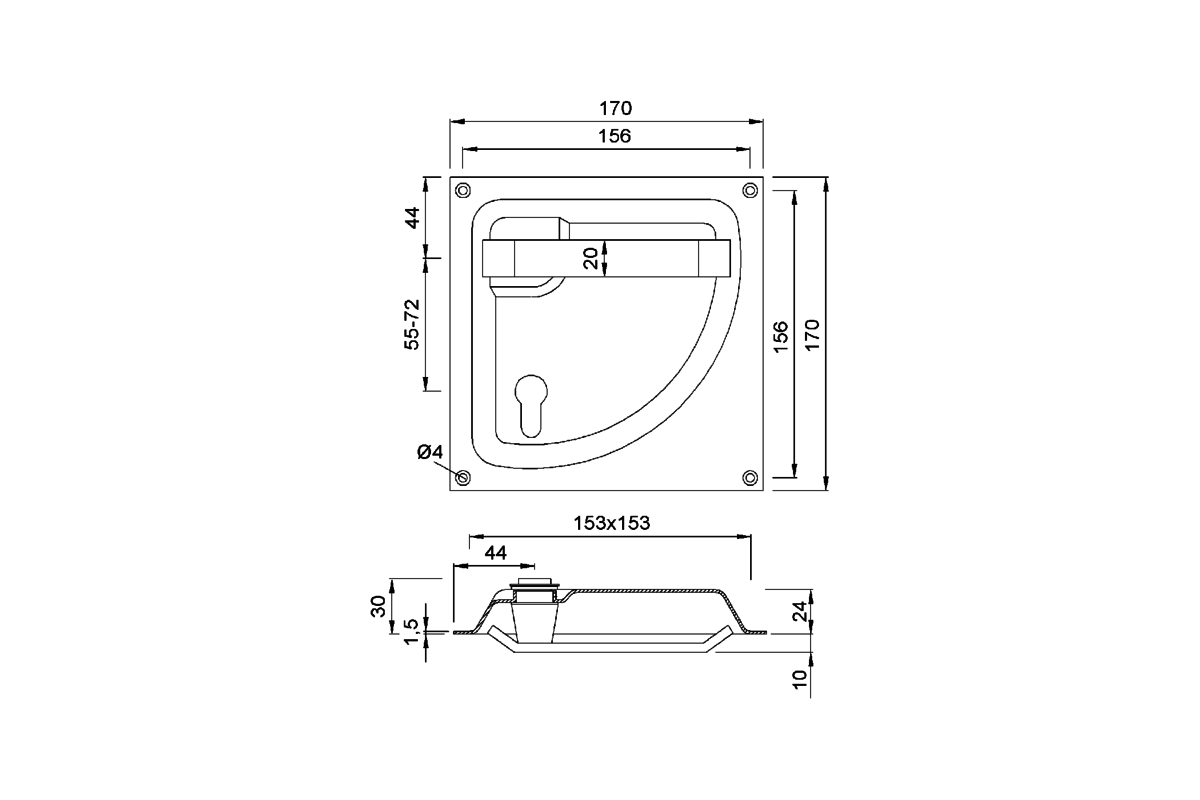

Drawing shows KWS 5061.. ff. (stainless steel)
Drawing shows KWS 5061.. ff. (stainless steel)

Do you have questions regarding the product?
We are happy to advise you!

Configure product

Please make a new selection.
Please make a new selection.
Please make a new selection.
Please make a new selection.
Please make a new selection.
Please enter a number between 55 and 72 .

Article number

KWS 5061.02.000005061.02.0000060
Please correct all errors and fill in all fields.
Please enter a quantity.
piece(s)

Downloads

  • Product information

    KWS 5061..
    Flush lever handle

    • lever handle recessed and fixed-pivoted
    • spindle of the spindle part firmly riveted
    • for flush installation


    Material
    steel/aluminium (grip recess: steel, lever handle: aluminium), aluminium or stainless steel


    Dimensions
    170 x 170 mm


    Female part / spindle part
    8 mm (KWS 5061.. / 5062..)
    9 mm (KWS 5064.. / 5065..)


    Keyway
    unperforated, PZ, BB or KABA


    Distance for keyway
    55 to 72 mm


    Unit weight
    0,480 kg (KWS 5061.. steel/aluminium)
    0,220 kg (KWS 5061.. aluminium)
    0,550 kg (KWS 5061.. stainless steel)

  • Installation

    There has to be sufficient insertion depth for flush installation.
