KWS 1920..

Post and door holder with hook

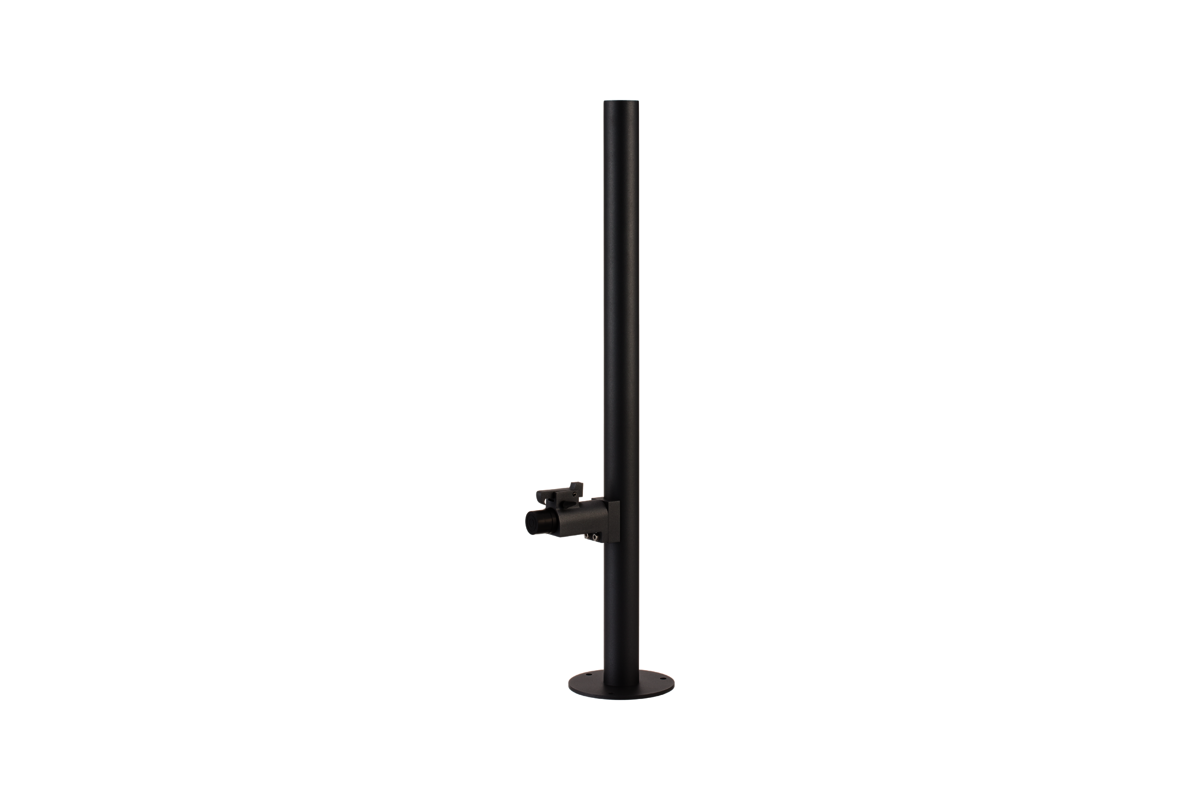

Picture shows KWS 1920.77

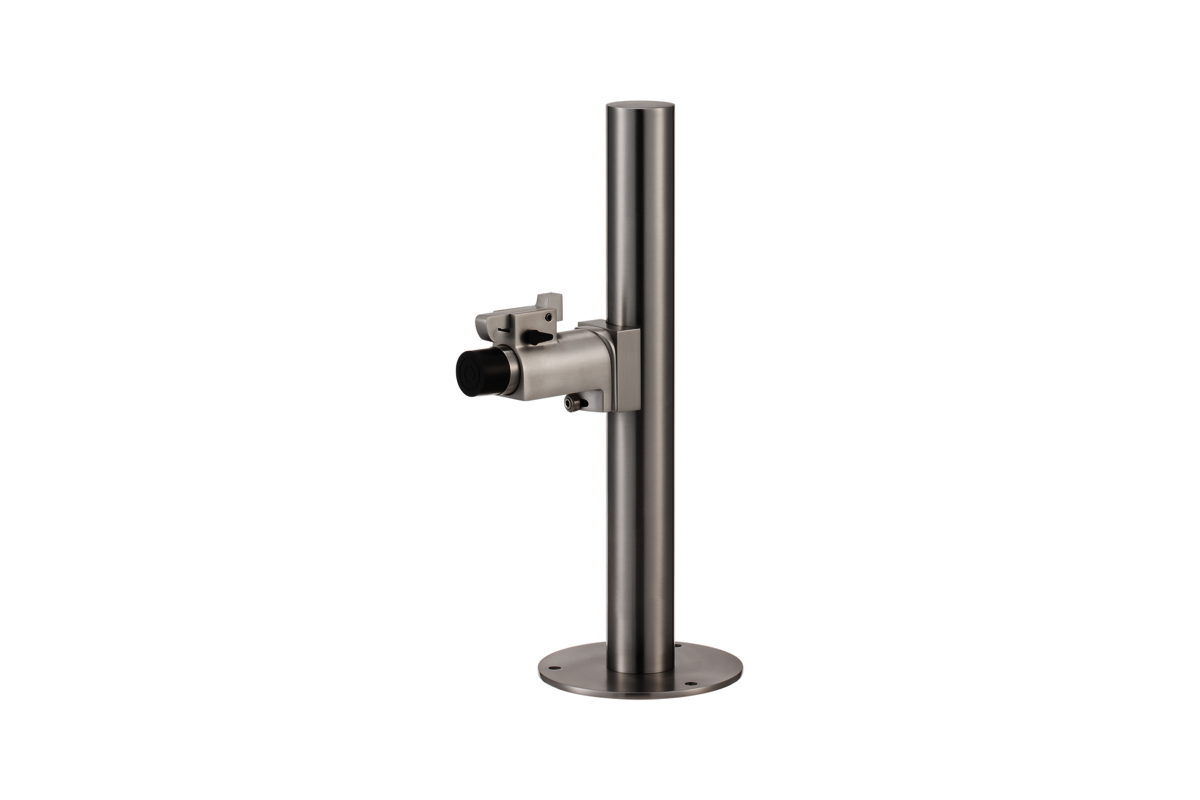

Picture shows KWS 1921.82

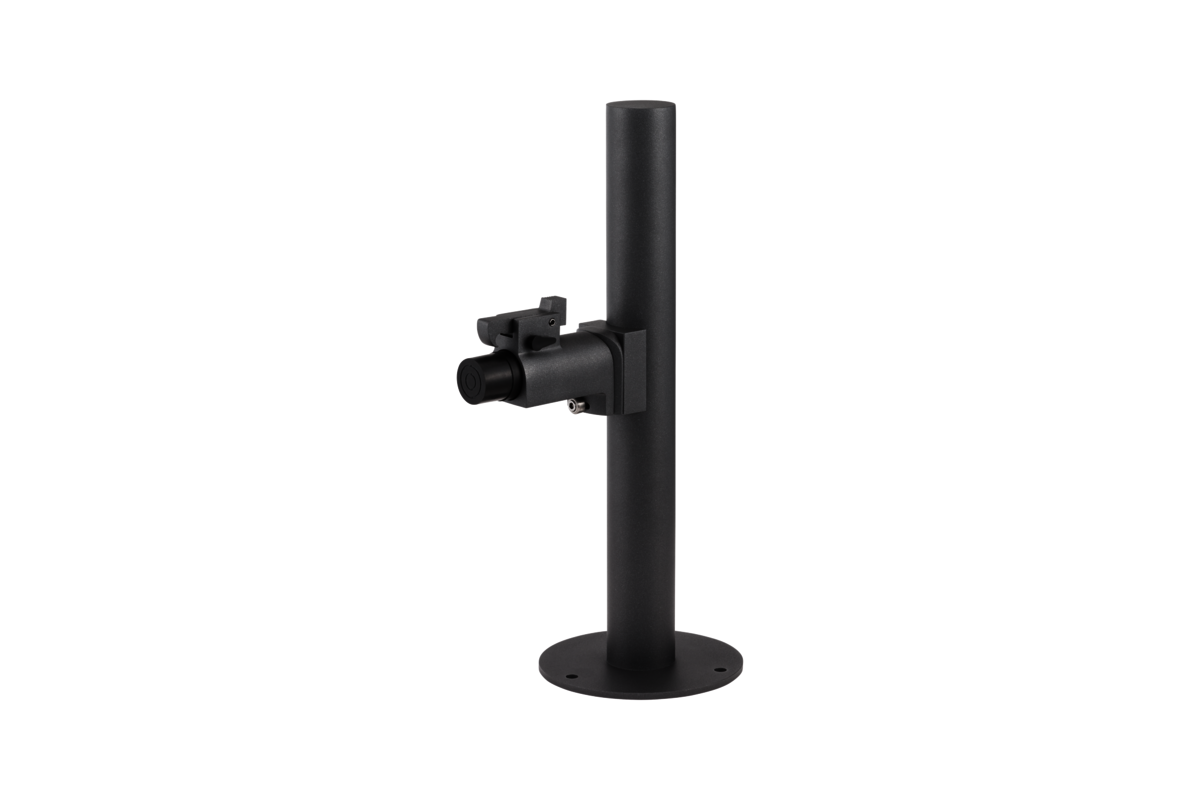

Picture shows KWS 1921.77

Drawing shows KWS 1920..

Drawing shows KWS 1921..

Do you have questions regarding the product?
We are happy to advise you!

Variant

Please make a new selection.

Finish

Please make a new selection.

Height post (H), in mm

Please enter a number between 0 and 1100 .

Height door holder (X), in mm

Please enter a number between 55 and 300 .

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 1920..
Post and door holder with hook
with door holder KWS 1011.. or 1095..
post and roller block to be screwed
door closer can be used

Material
stainless steel
buffer:
rubber, spring-loaded, black

Mode of operation
foot/hand actuation

Door weight
max. 100 kg

Unit weight
6,000 kg (KWS 1920.. / 1921.. mit H = 1.000 mm)
Function
To hold the door in place, push it against the holder until the hook is engaged on the roller block. Actuating the hook while simultaneously pressing the door against the holder disengages the holding mode.
The lever, switched from position A to B, deactivates the holding mode: In this case, the door holder only has the function of a spring-loaded door buffer.
Installation
Mount the post on the floor with three screws at the desired arresting point, which should be the furthest possible distance from the door hinge. Fix the roller block to the door at the corresponding position.
For KWS 1911.., the door holder KWS 1095.. can be adjusted perpetually up to 10 degrees to the right and left.
Downloads
Product drawing KWS 1920.. (DWG)
Product drawing KWS 1921.. (DWG)
